M2 150/100
| 150 mm | 100 mm |
2000mm | 3,0 kg |
průměr kabelů [mm]
počet vrstev do 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I
14 ks 11 ks 8 ks 7 ks 5 ks 4 ks 4 ks 3 ks 3 ks 2 ks 2 ks 2 ks
II
28 ks 22 ks 16 ks 14 ks 10 ks 8 ks 8 ks 6 ks 6 ks
III
42 ks 33 ks 24 ks 21 ks 15 ks 12 ks
IV
56 ks 44 ks 32 ks 28 ks
V
70 ks 55 ks 40 ks
VI
84 ks 66 ks
VII
98 ks 77 ks
VIII
112 ks
IX
126 ks
GZ
galvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
S
ef
=
9 440
mm
2
effective mesh
tray section
F
i
r
e
r
e
s
i
s
t
a
n
c
e
t
e
s
t
e
d

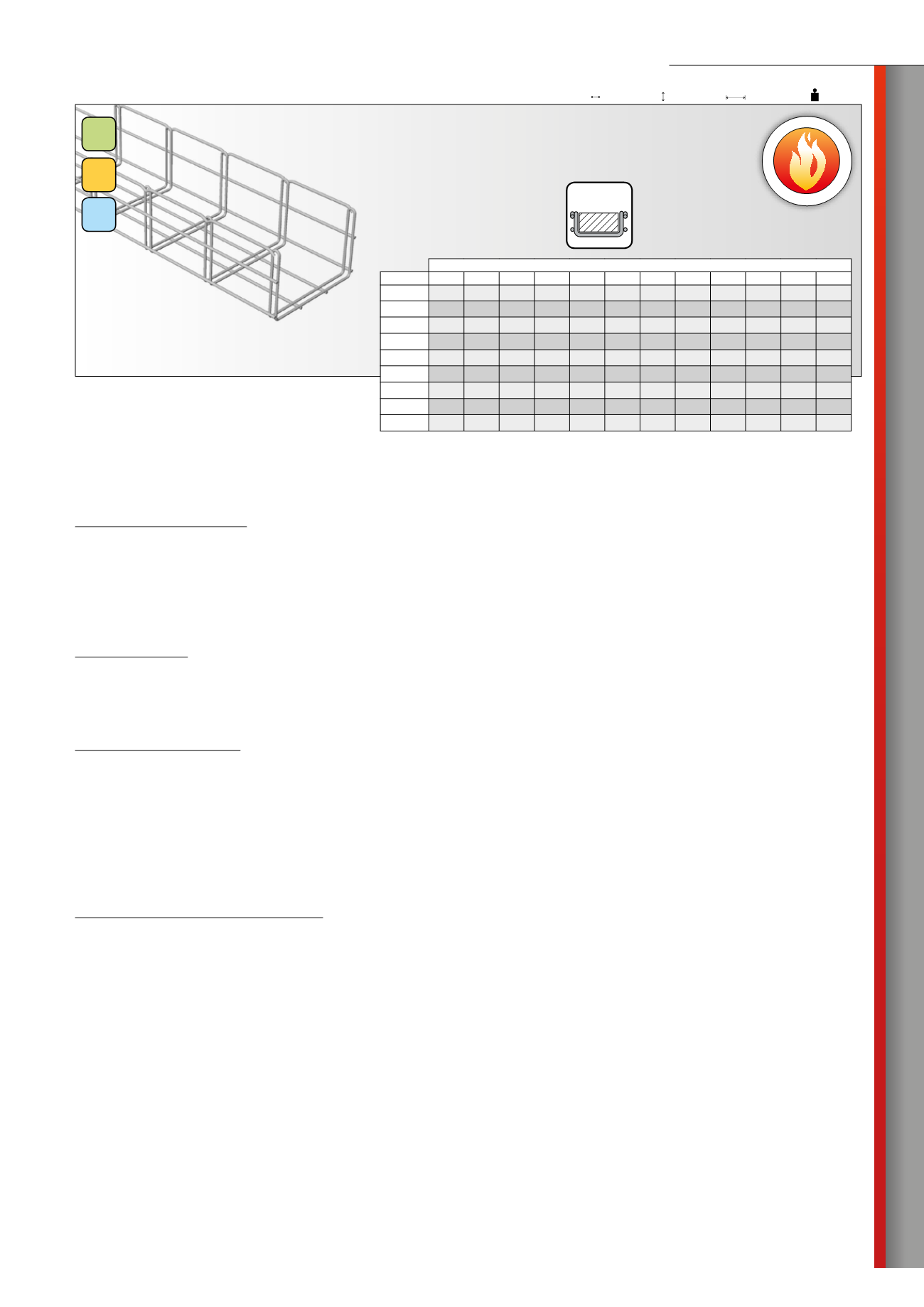

Product:
Cable tray MERKUR 2
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Specifications:
Material - steel or stainless steel wire AISI 304 “A2”
Surface finish (finish) – cold galvanized
- hot zinc dipped by dipping
- stainless AISI 304 “A2”
Load capacity - according to CSN EN 61 537ed.2
Use:
MERKUR 2 Cable mesh trays are designed for the assembly of high current cable tracks for light circuits and motive current distribution,
low current circuits, measuring and control systems as well as for other media.
Specification:
Length - 2000 mm
Width – 150 mm
Sidewall height - 100 mm
OK Dimensions – 50x100 mm
Double crossbeam – wire Ø 4,0 mm
Runner – wire Ø 4,0 mm
Upper edge – wire Ø 4,0 mm
Certification
(www.arkys.cz):
ES Declaration of Conformity
Certificate Declaration of performance of construction product MERKUR 2
Certificate od product
Compliance certificate GOST R authorizing imports and installations of the M2 system on the territory of the Russian Federation
Load test protocol
Test Protocol of Electric Continuity according to ČSN EN 61537 ed.2 čl. 11.1
Test of freezeproof
Protocol of the EMC test
Test the effects of salt mist according to ČSN 34 5791-2-11:1992+Z1:2000
Fire classification certificates - P 90-R a PH 120-R according to ZP 27/2008 PAVUS a.s.
E 90 according to DIN 4102-12:1998-11
PS 90 according to STN 92 0205:2012
product sheet
