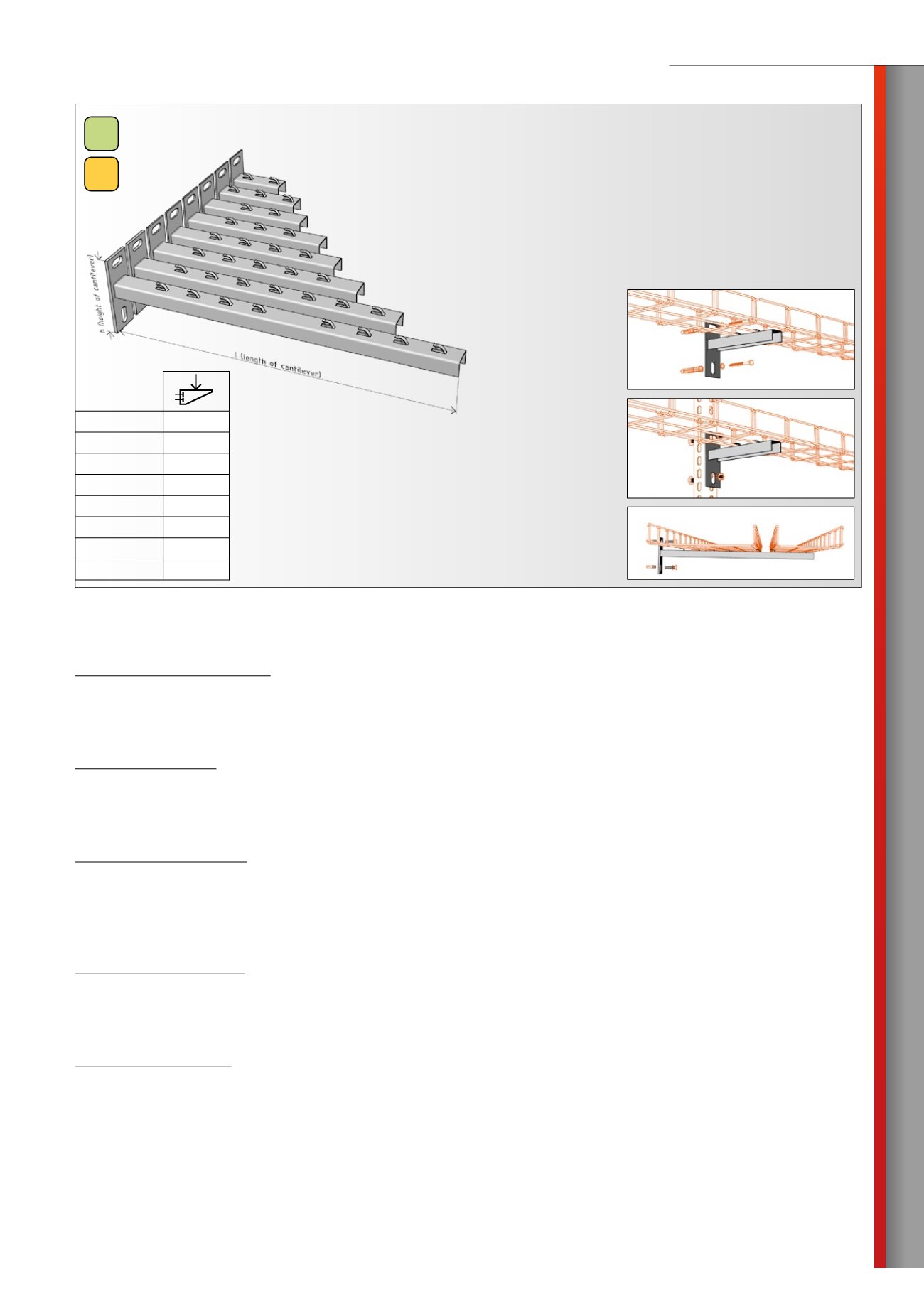

NPZM

cantilever

Loading

capacity

NPZM 50

90,0 kg

NPZM 100

88,3 kg

NPZM 150

86,7 kg

NPZM 200

85,0 kg

NPZM 250

81,7 kg

NPZM 300

80,0 kg

NPZM 400

78,3 kg

NPZM 500

75,0 kg

GZ

galvanic

zinc

ZD

hot

zinc-dipped

Product:

NPZM-series cantilever

Manufacturer:

ARKYS s.r.o., Podstranska 1, 627 00 Brno, Czech Republic

Technical features:

Material - steel sheet

Surface finish (finish) – cold galvanized

– hot zinc dipped by dipping

Function:

The NPZM-series cantilevers are used as wall bearing elements for wall mounting of cable tracks. Their major technical advantage is the

quick and easy installation of anchors. For spatial track installations the cantilevers are anchored in STPM spatial strut. In case of a plura-

lity of wall mounted parallel tracks the combination with STNM wall strut can be used.

Specifications:

Length – 80-500 mm (according to type of cantilever)

Height (base) – 120 mm

Sheet thickness (body) - 2,0 mm

Sheet thickness (base) – 3,0 and 5,0 mm (according to type of cantilever)

Load capacity:

90 – 75 kg

Note: The declared load capacity depends on professional installation and on correct anchoring (use of appropriate anchoring elements according to

actual application).

Description:

The NPZM-series cantilevers are designed with screwless clamp for easy installation of mesh cable trays MERKUR 2 without additional

connecting parts. In the base of the cantilever are two holes Ø 11 mm (according to type of cantilever) for easy fixing to the wall position.

Web mounting

This execution serves for spatial

installations of racks or for multiple

wall mounting of a number of tracks

above each other.

Wall mounting

This execution serves for anchoring

cable tracks directly in the masonry

or another loading vertical

construction.

Compound mounting

for more trays on one cantilever

For proper function of cantilevers and

to achieve their nominal loading ca-

pacity it is important to maintain even

distribution of weighton their length.

product sheet
