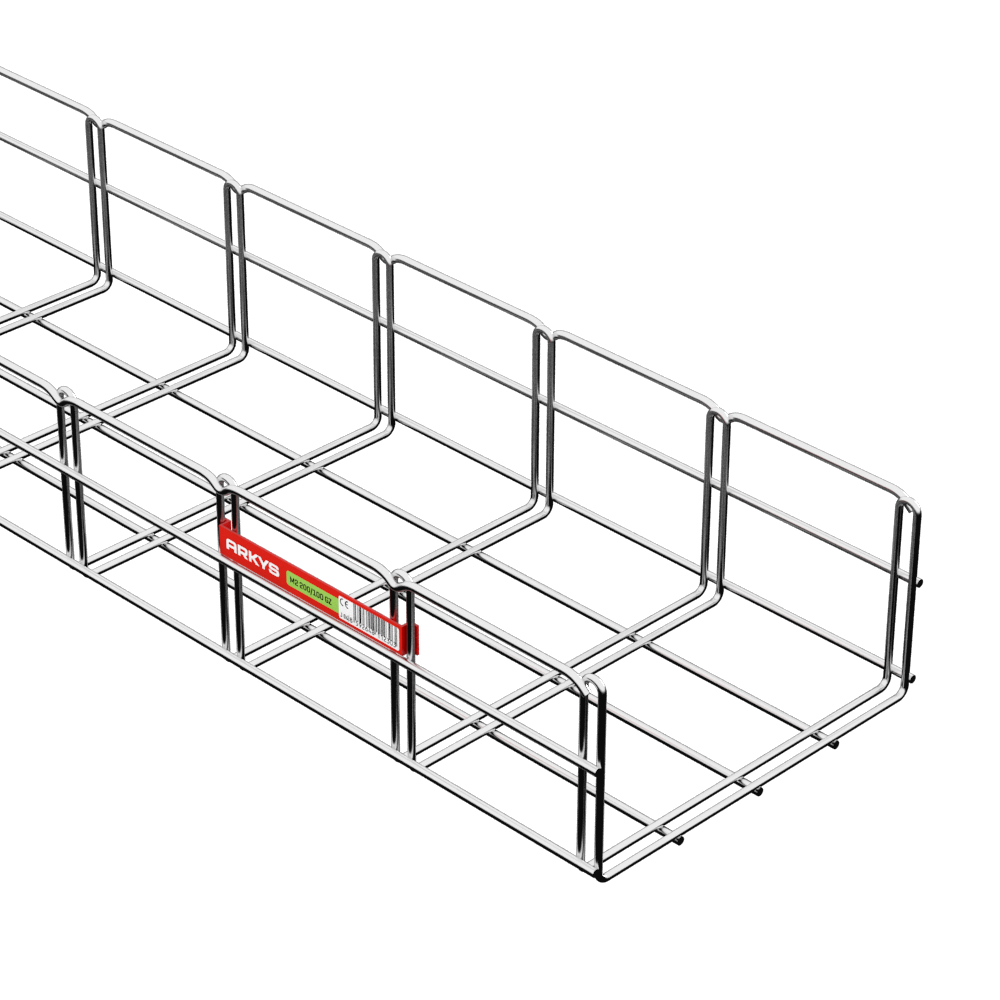

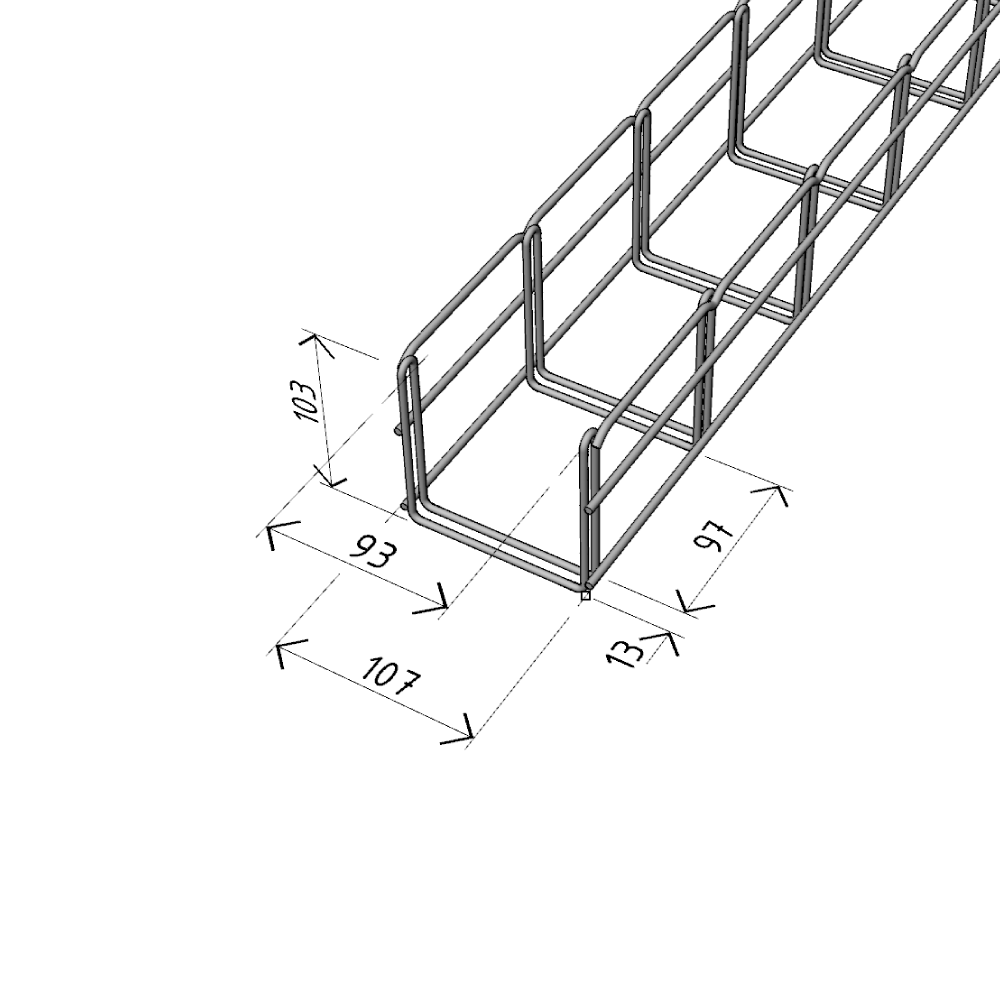

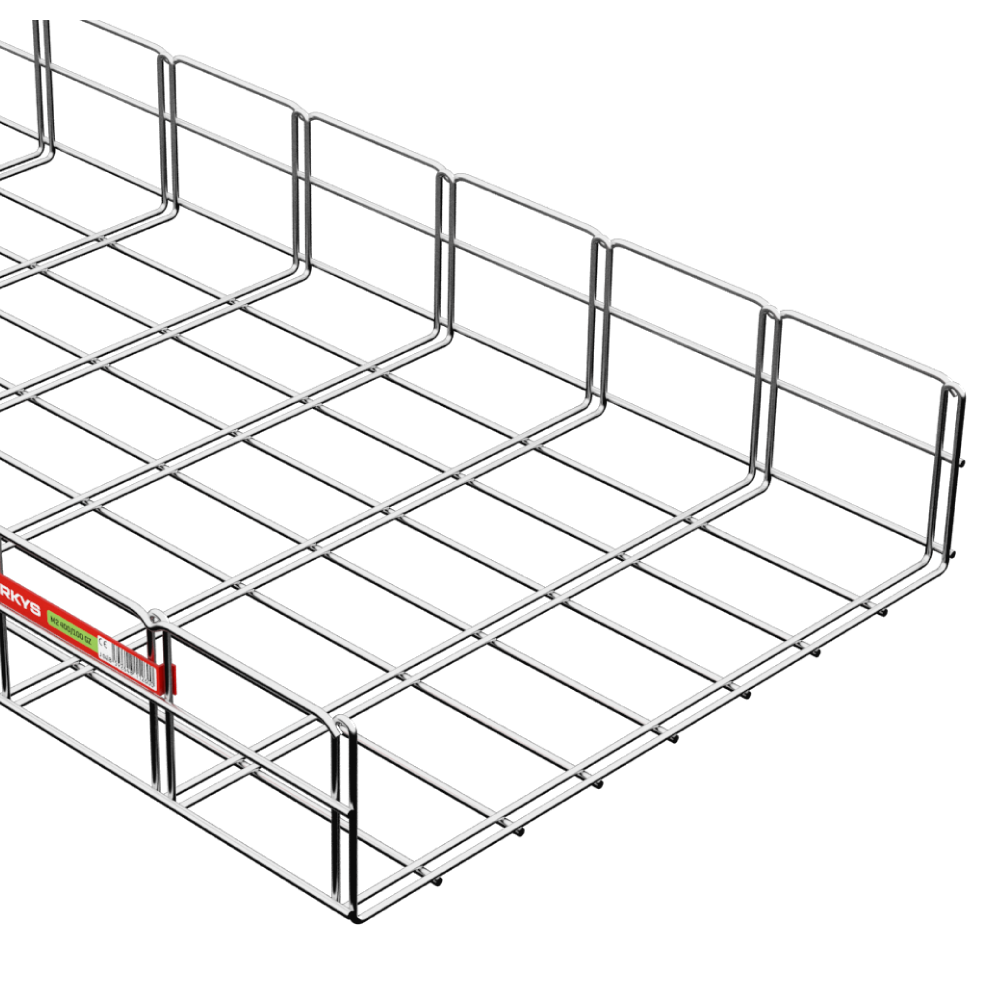

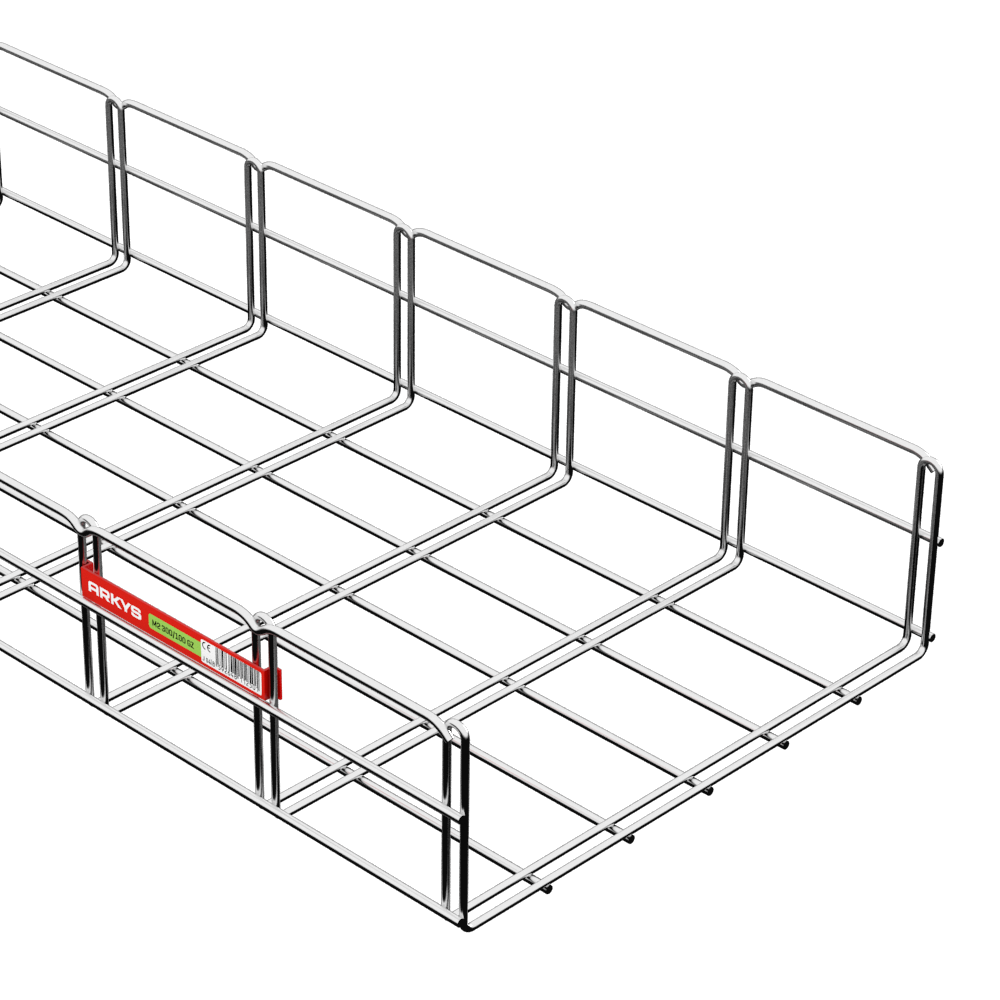

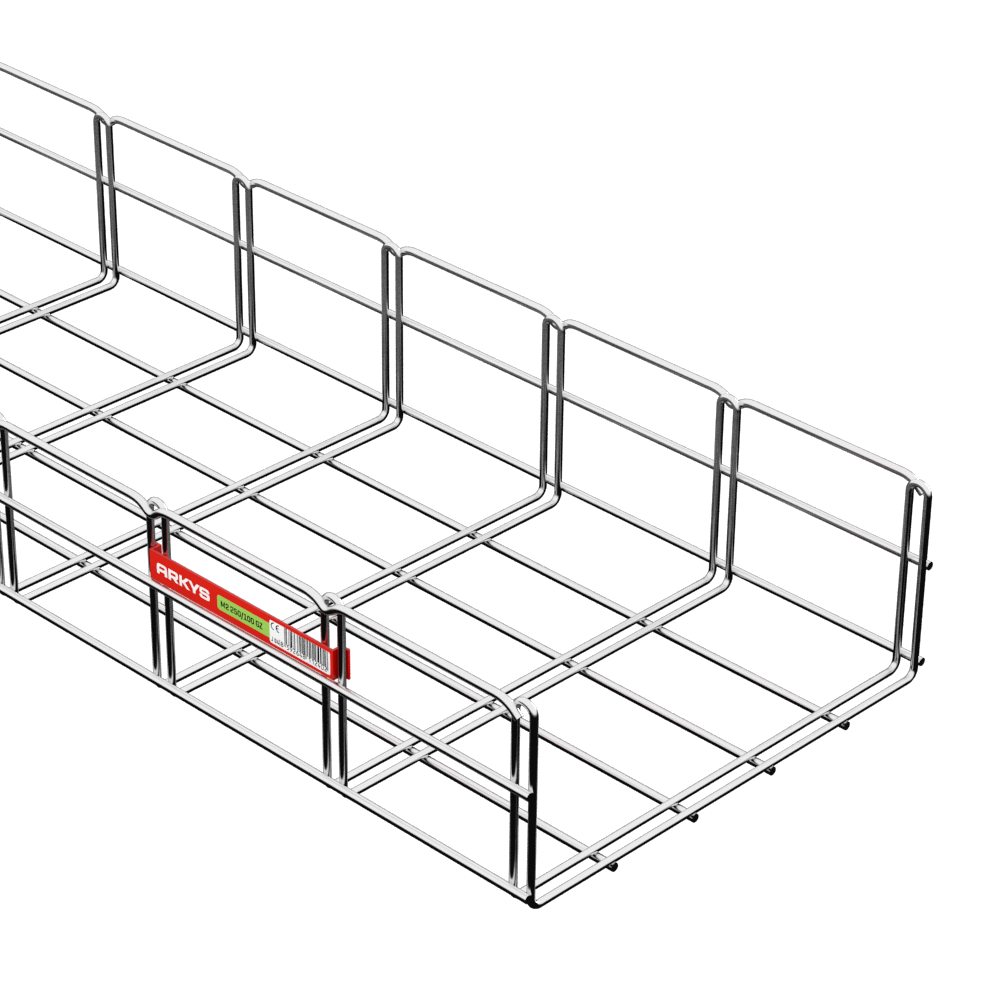

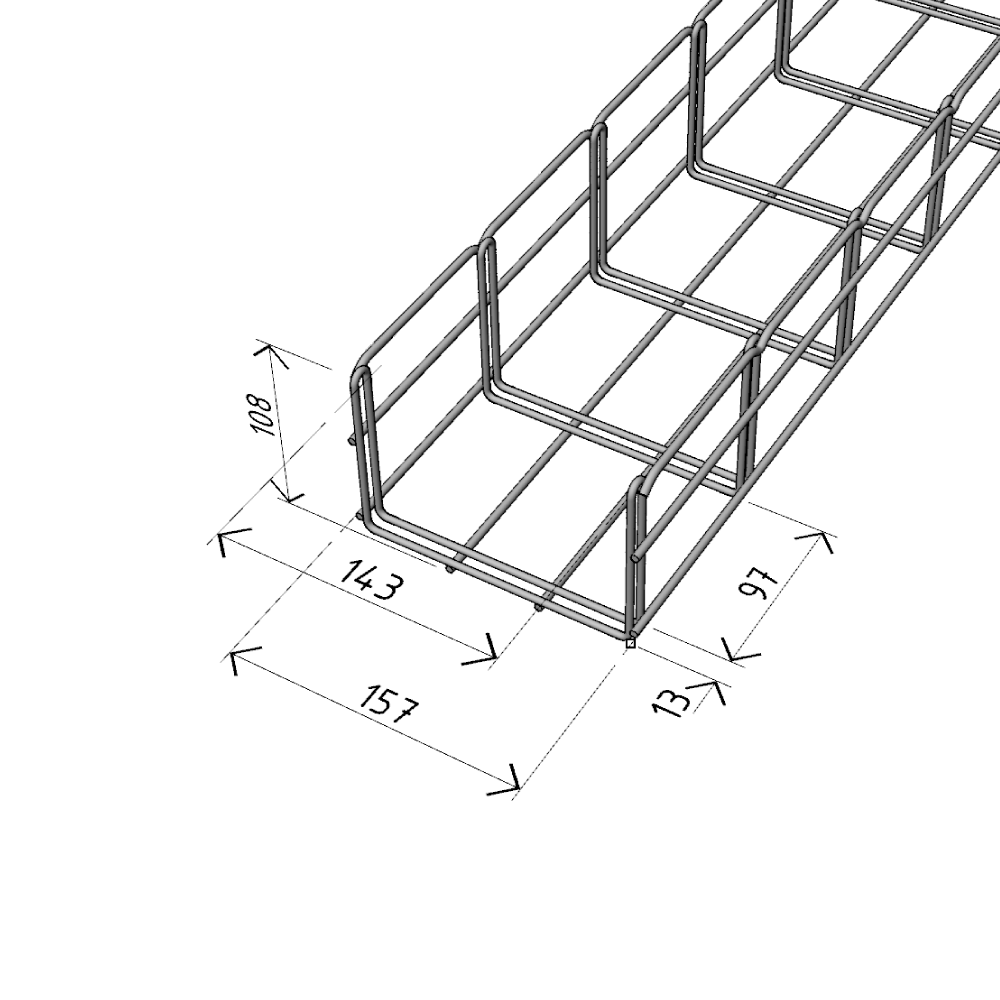

MERKUR 2 wire mesh cable tray - height of sidewall 100 mm

M2 100/100 cable tray

  • 100 mm
  • 100 mm
  • 2000 mm
  • 2,1 kg
  • Functional integrity
M2 100/100 cable tray
  • Number of SZM 1 couplings for connecting the ducts 2×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 6 120 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211210
  • ZZ ARK -221210
  • A2 ARK -231214
  • A4 ARK -241214
number of layers cable diameter [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 9 pcs 7 pcs 5 pcs 4 pcs 3 pcs 3 pcs 2 pcs 2 pcs 2 pcs 1 pc 1 pc 1 pc
II 18 pcs 14 pcs 10 pcs 8 pcs 6 pcs 6 pcs 4 pcs 4 pcs 4 pcs
III 27 pcs 21 pcs 15 pcs 12 pcs 9 pcs 9 pcs
IV 36 pcs 28 pcs 20 pcs 16 pcs
V 45 pcs 35 pcs 25 pcs
VI 54 pcs 42 pcs
VII 63 pcs 49 pcs
VIII 72 pcs
IX 81 pcs

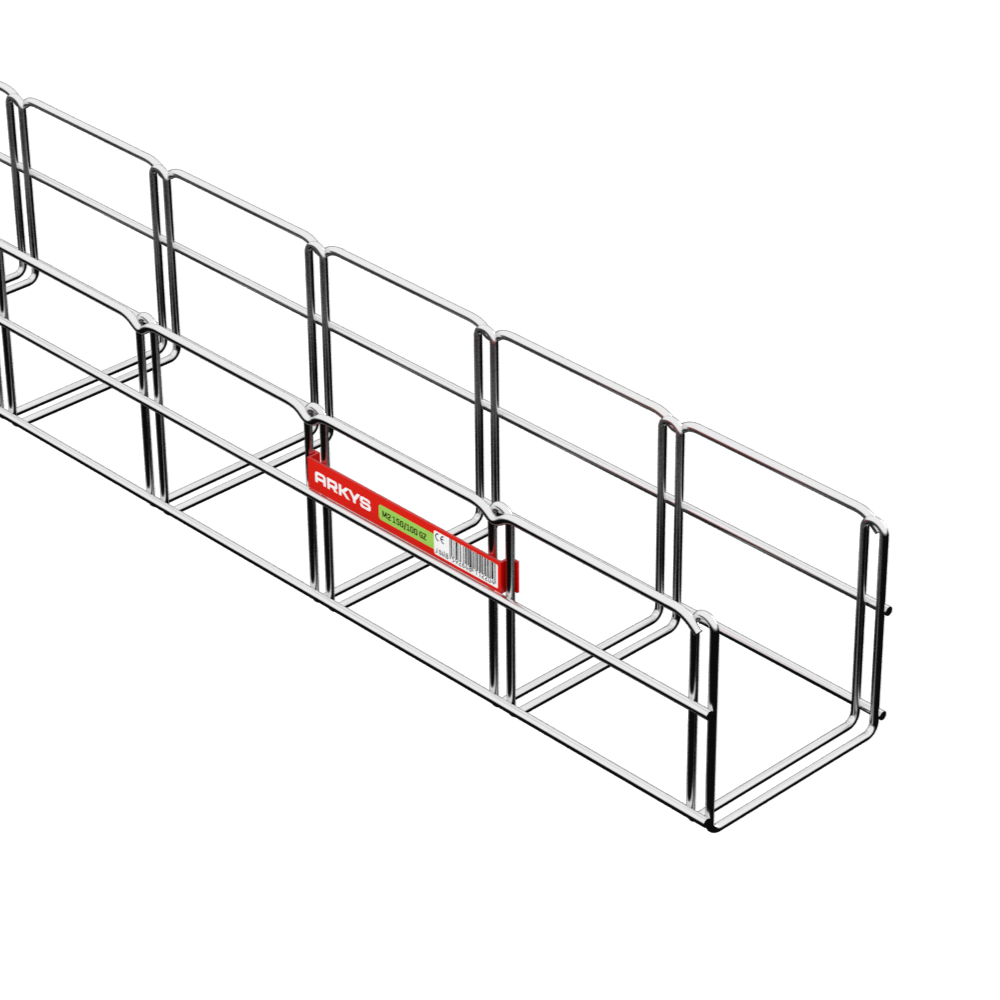

M2 100/100 cable tray

M2 150/100 cable tray

  • 150 mm
  • 100 mm
  • 2000 mm
  • 3,0 kg
  • Functional integrity
M2 150/100 cable tray
  • Number of SZM 1 couplings for connecting the ducts 3×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 9 440 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211220
  • ZZ ARK -221220
  • A2 ARK -231224
  • A4 ARK -241224
number of layers cable diameter [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 14 pcs 11 pcs 8 pcs 7 pcs 5 pcs 4 pcs 4 pcs 3 pcs 3 pcs 2 pcs 2 pcs 2 pcs
II 28 pcs 22 pcs 16 pcs 14 pcs 10 pcs 8 pcs 8 pcs 6 pcs 6 pcs
III 42 pcs 33 pcs 24 pcs 21 pcs 15 pcs 12 pcs
IV 56 pcs 44 pcs 32 pcs 28 pcs
V 70 pcs 55 pcs 40 pcs
VI 84 pcs 66 pcs
VII 98 pcs 77 pcs
VIII 112 pcs
IX 126 pcs
M2 150/100 cable tray

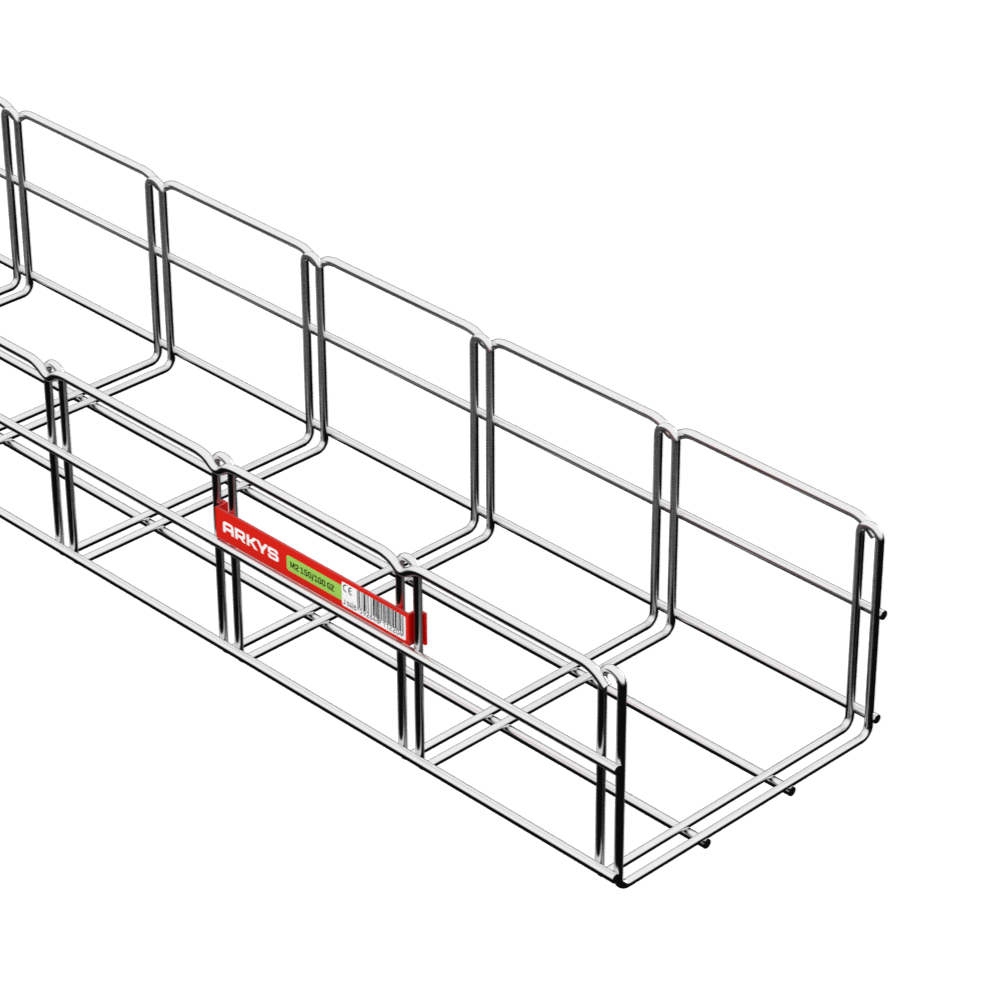

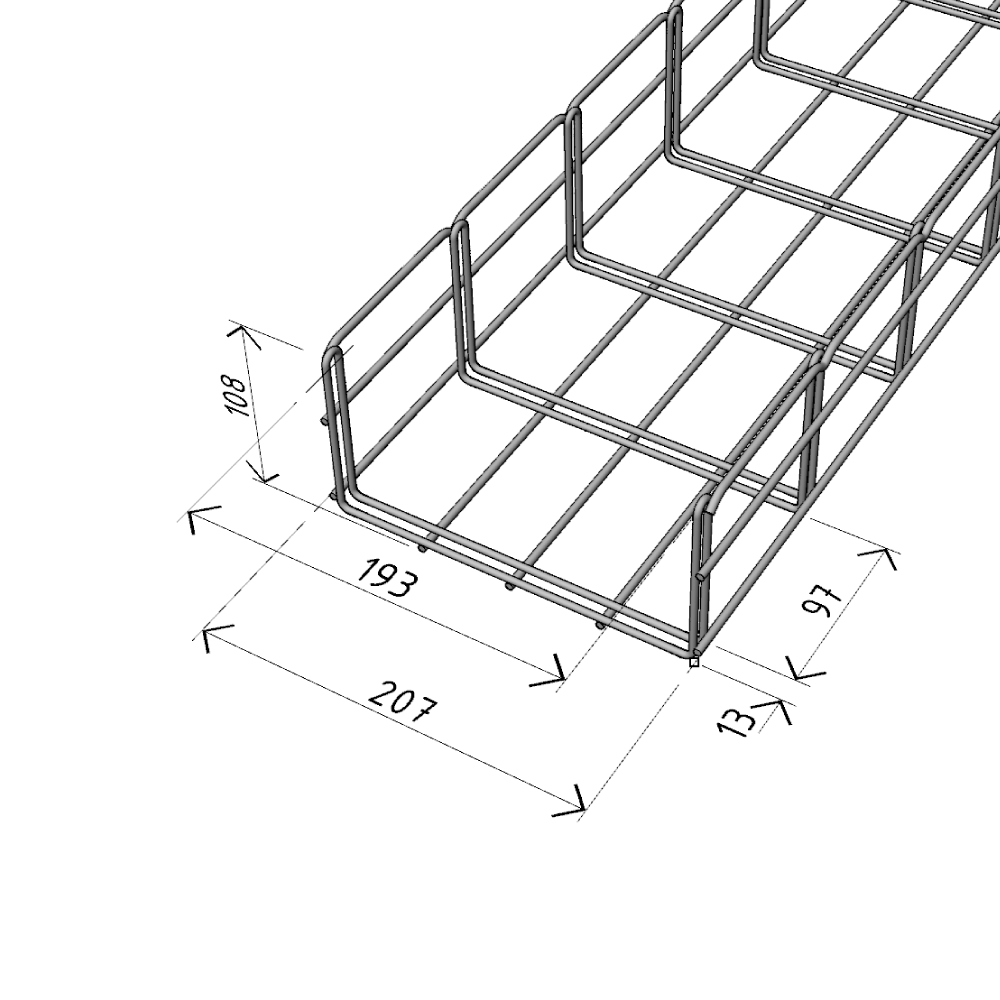

M2 200/100 cable tray

  • 200 mm
  • 100 mm
  • 2000 mm
  • 3,4 kg
  • Functional integrity
M2 200/100 cable tray
  • Number of SZM 1 couplings for connecting the ducts 3×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 12 770 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211230
  • ZZ ARK -221230
  • A2 ARK -231234
  • A4 ARK -241234 *

(*) On Request

number of layers cable diameter [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 19 pcs 15 pcs 11 pcs 9 pcs 7 pcs 6 pcs 5 pcs 4 pcs 4 pcs 3 pcs 3 pcs 3 pcs
II 38 pcs 30 pcs 22 pcs 18 pcs 14 pcs 12 pcs 10 pcs 8 pcs 8 pcs
III 57 pcs 45 pcs 33 pcs 27 pcs 21 pcs 18 pcs
IV 76 pcs 60 pcs 44 pcs 36 pcs
V 95 pcs 75 pcs 55 pcs
VI 114 pcs 90 pcs
VII 133 pcs 105 pcs
VIII 152 pcs
IX 171 pcs
M2 200/100 cable tray

M2 250/100 cable tray

  • 250 mm
  • 100 mm
  • 2000 mm
  • 3,7 kg
  • Functional integrity
M2 250/100 cable tray
  • Number of SZM 1 couplings for connecting the ducts 3×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 16 090 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211240
  • ZZ ARK -221240
  • A2 ARK -231244
  • A4 ARK -241244 *

(*) On Request

number of layers cable diameter [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 23 pcs 19 pcs 14 pcs 11 pcs 9 pcs 7 pcs 6 pcs 5 pcs 5 pcs 4 pcs 4 pcs 4 pcs
II 46 pcs 38 pcs 28 pcs 22 pcs 18 pcs 14 pcs 12 pcs 10 pcs 10 pcs
III 69 pcs 57 pcs 42 pcs 33 pcs 27 pcs 21 pcs
IV 92 pcs 76 pcs 56 pcs 44 pcs
V 115 pcs 95 pcs 70 pcs
VI 138 pcs 114 pcs
VII 161 pcs 133 pcs
VIII 184 pcs
IX 207 pcs
M2 250/100 cable tray

M2 300/100 cable tray

  • 300 mm
  • 100 mm
  • 2000 mm
  • 4,1 kg
  • Functional integrity
M2 300/100 cable tray
  • Number of SZM 1 couplings for connecting the ducts 3×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 19 420 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211250
  • ZZ ARK -221250
  • A2 ARK -231254
  • A4 ARK -241254

(*) On Request

number of layers cable diameter [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 28 pcs 24 pcs 18 pcs 14 pcs 11 pcs 9 pcs 8 pcs 7 pcs 6 pcs 5 pcs 5 pcs 4 pcs
II 56 pcs 48 pcs 36 pcs 28 pcs 22 pcs 18 pcs 16 pcs 14 pcs 12 pcs
III 84 pcs 72 pcs 54 pcs 42 pcs 33 pcs 27 pcs
IV 112 pcs 96 pcs 72 pcs 56 pcs
V 140 pcs 120 pcs 90 pcs
VI 168 pcs 144 pcs
VII 196 pcs 168 pcs
VIII 224 pcs
IX 252 pcs
M2 300/100 cable tray

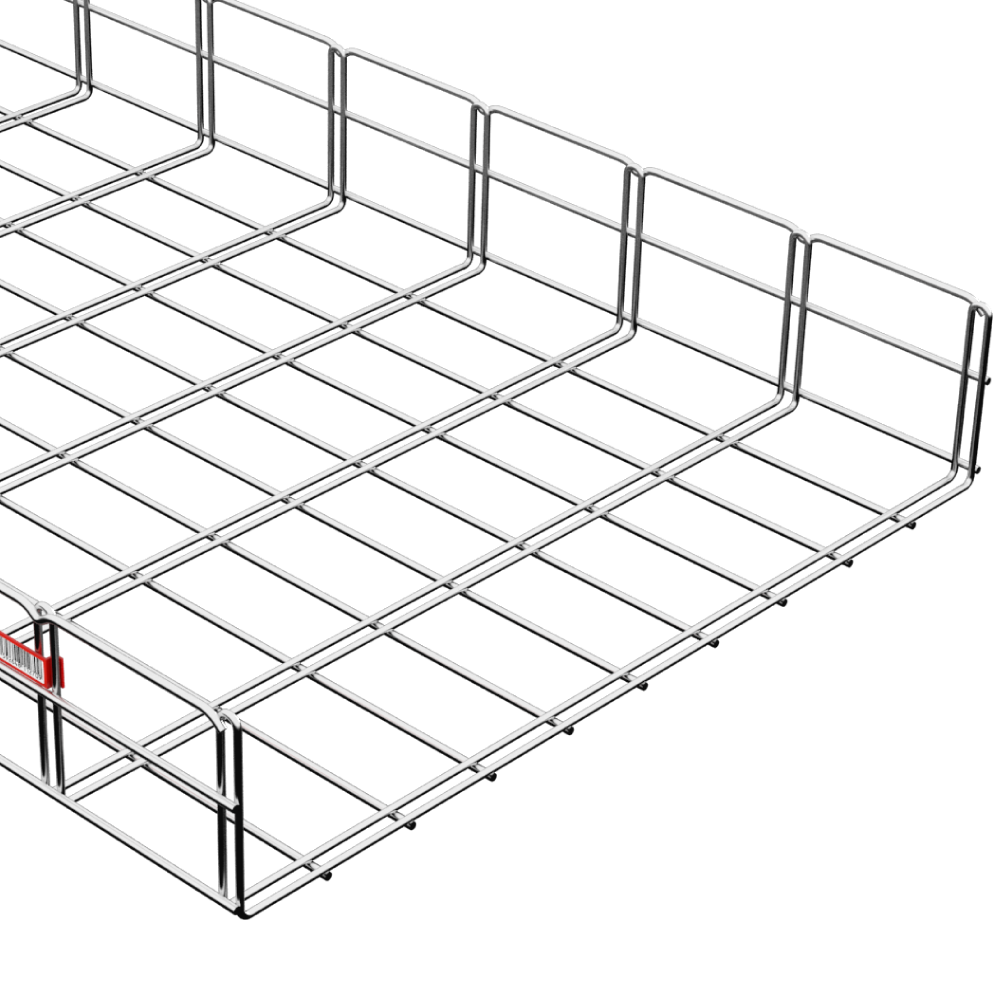

M2 400/100 cable tray

  • 400 mm
  • 100 mm
  • 2000 mm
  • 4,9 kg
  • Functional integrity
M2 400/100 cable tray
  • Number of SZM 1 couplings for connecting the ducts 4×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 26 070 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211260
  • ZZ ARK -221260
  • A2 ARK -231264
  • A4 ARK -241264 *

(*) On Request

number of layers cable diameter [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 38 pcs 32 pcs 24 pcs 19 pcs 15 pcs 13 pcs 11 pcs 9 pcs 8 pcs 7 pcs 7 pcs 6 pcs
II 76 pcs 64 pcs 48 pcs 38 pcs 30 pcs 26 pcs 22 pcs 18 pcs 16 pcs
III 114 pcs 96 pcs 72 pcs 57 pcs 45 pcs 39 pcs
IV 152 pcs 128 pcs 96 pcs 76 pcs
V 190 pcs 160 pcs 120 pcs
VI 228 pcs 192 pcs
VII 266 pcs 224 pcs
VIII 304 pcs
IX 342 pcs
M2 400/100 cable tray

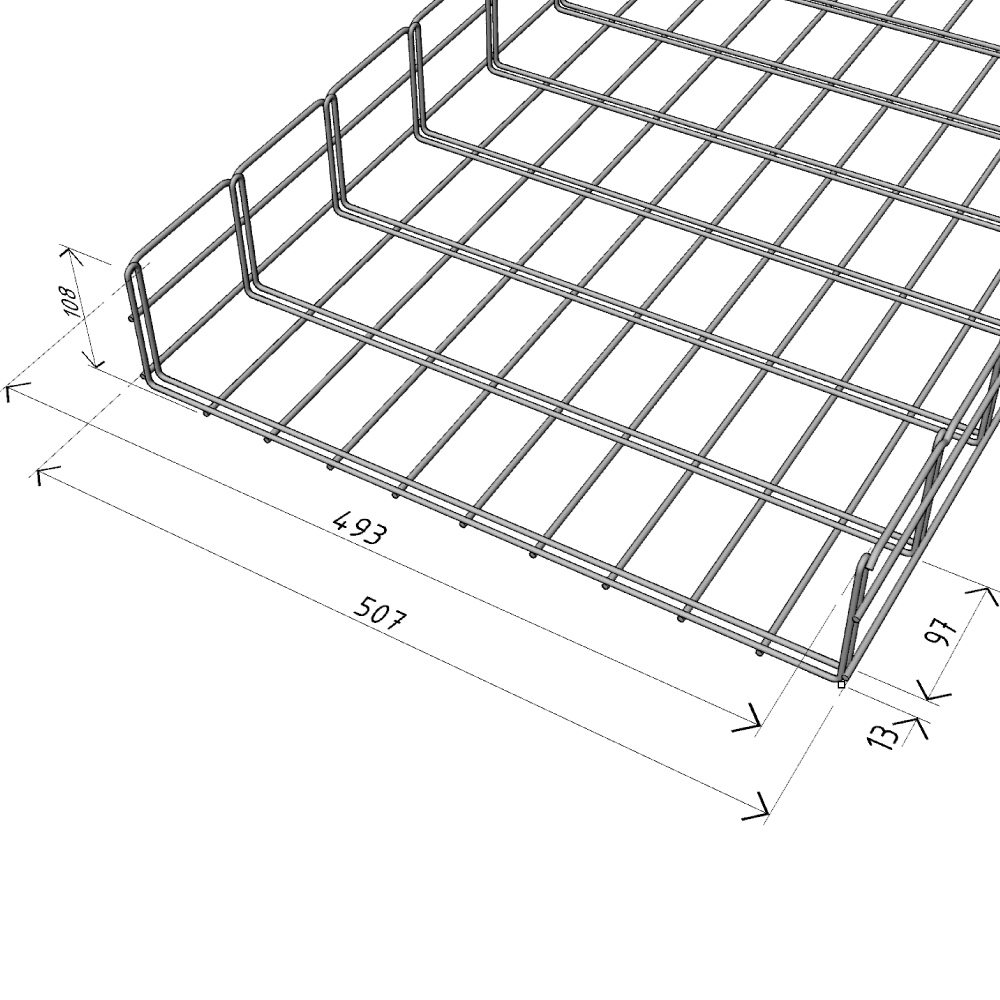

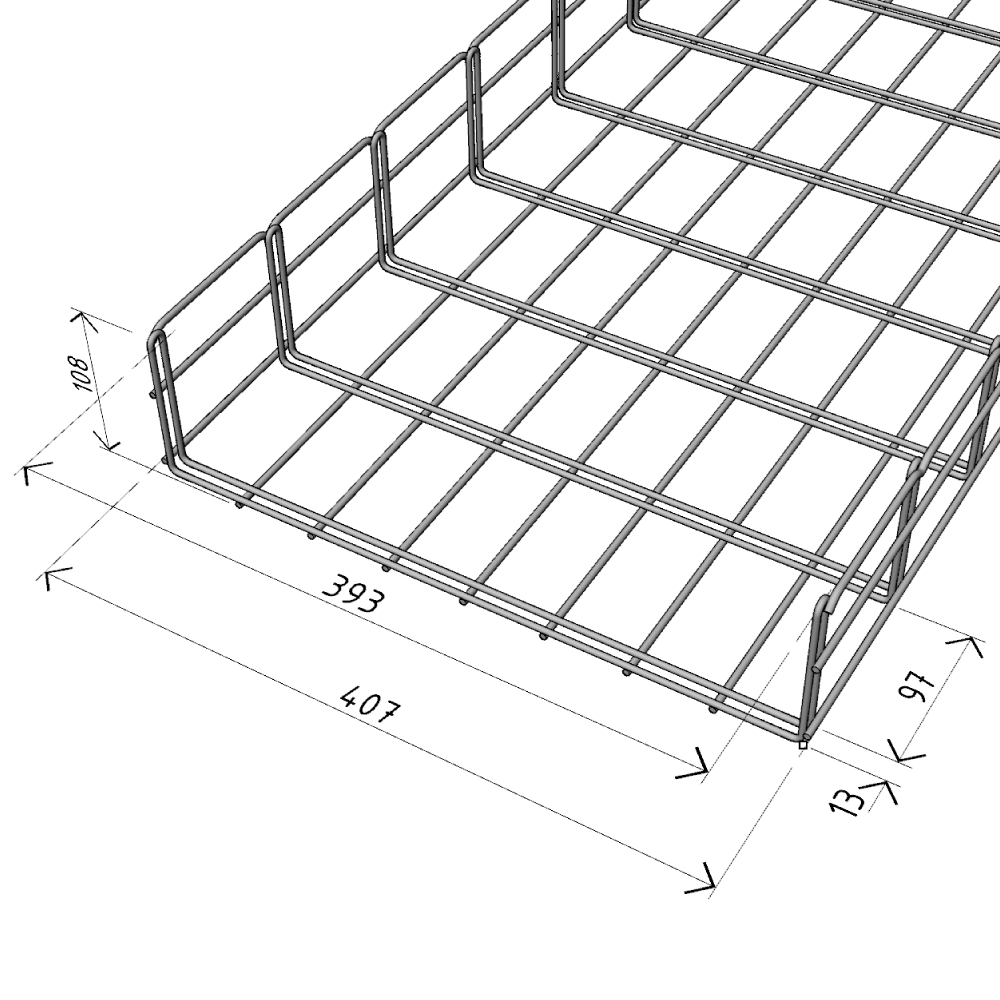

M2 500/100 cable tray

  • 500 mm
  • 100 mm
  • 2000 mm
  • 5,7 kg
  • Functional integrity
M2 500/100 cable tray
  • Number of SZM 1 couplings for connecting the ducts 4×
  • effective cross-section of the duct
    effective cross-section of the duct Sef = 32 740 mm2
  • Load capacity
  • Shaping
Product code
  • GZ ARK -211270
  • ZZ ARK -221270
  • A2 ARK -231274
  • A4 ARK -241274 *

(*) On Request

number of layers cable diameter [mm]
up to 10 11-12 13-16 17-20 21-25 26-30 31-35 36-40 41-45 46-50 51-55 56-60
I 48 pcs 40 pcs 30 pcs 24 pcs 19 pcs 16 pcs 14 pcs 12 pcs 10 pcs 9 pcs 8 pcs 8 pcs
II 96 pcs 80 pcs 60 pcs 48 pcs 38 pcs 32 pcs 28 pcs 24 pcs 20 pcs
III 144 pcs 120 pcs 90 pcs 72 pcs 57 pcs 48 pcs
IV 192 pcs 160 pcs 120 pcs 96 pcs
V 240 pcs 200 pcs 150 pcs
VI 288 pcs 240 pcs
VII 336 pcs 280 pcs
VIII 384 pcs
IX 432 pcs
M2 500/100 cable tray
