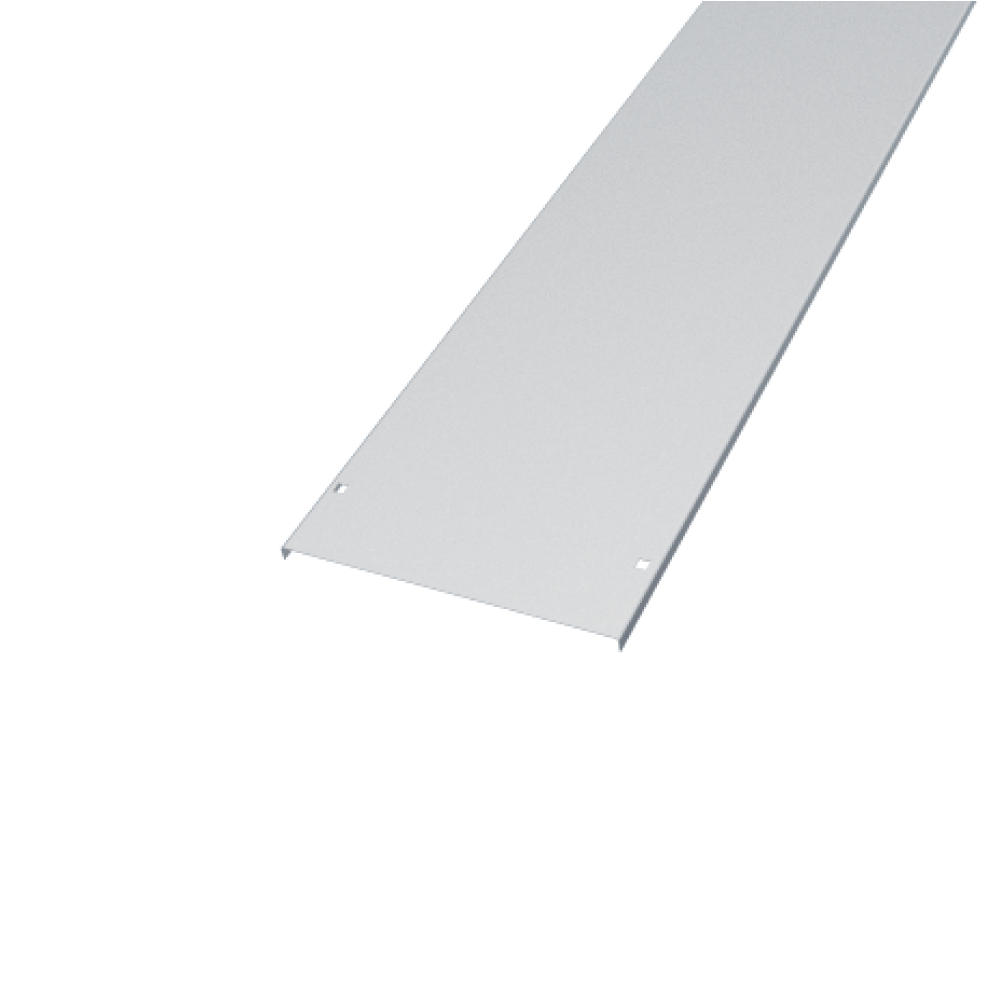

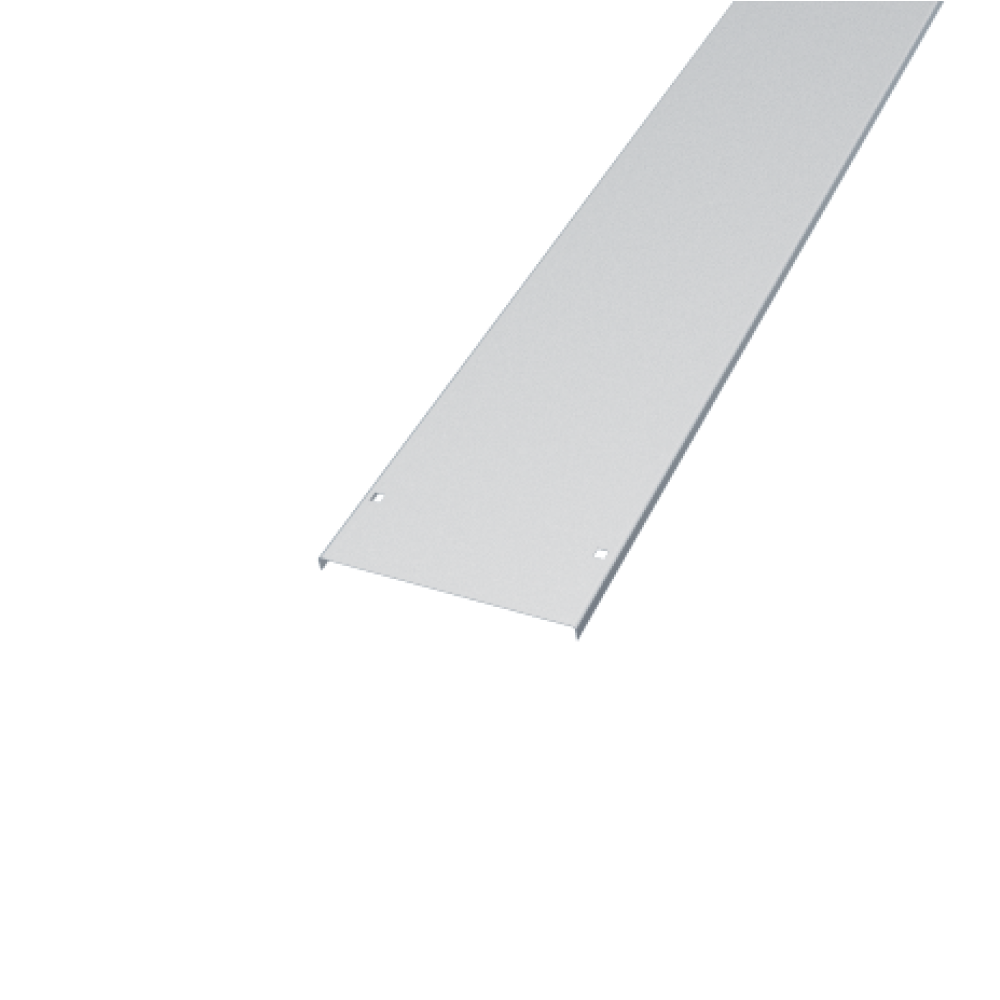

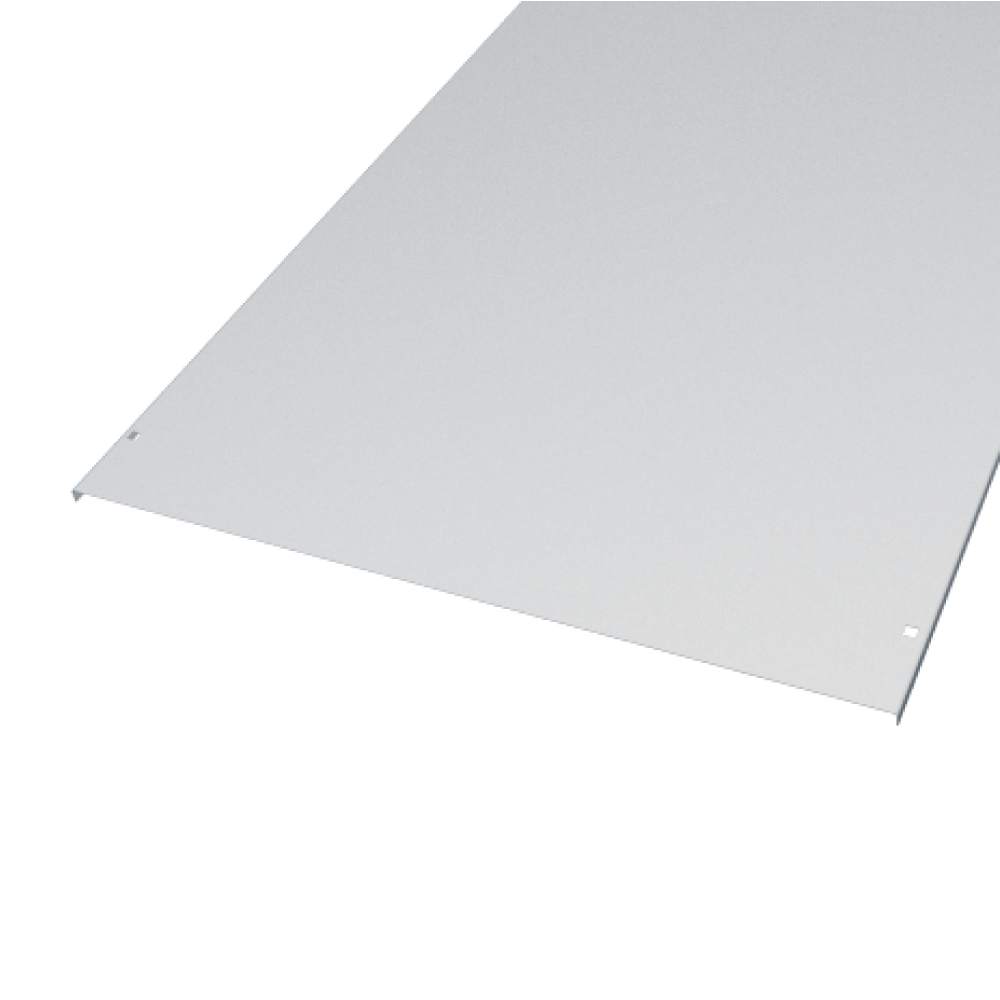

VZM VZM series covers are used to cover a cable route to protect it against potential mechanical damage of the cables, as well as for outdoor protection against UV radiation. The number suggests the mesh tray width that the cover is to be used with (e.g. VZM 50 is intended for a 50 mm mesh tray etc.)

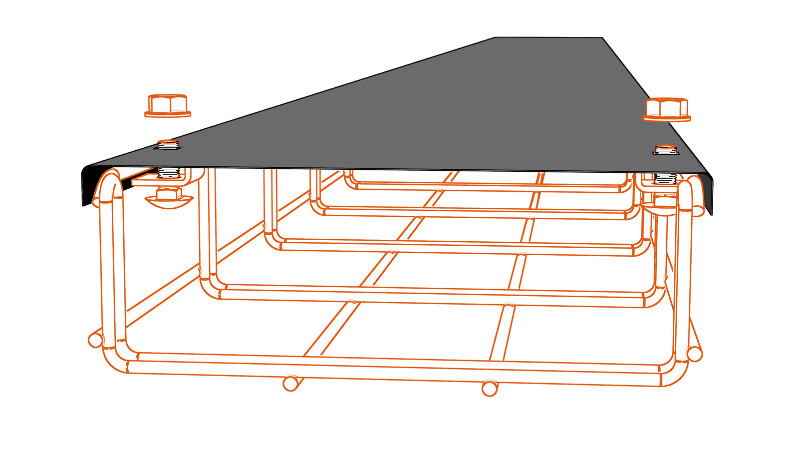

Covers are fastened to mesh trays by means of SVM 1 couplers.

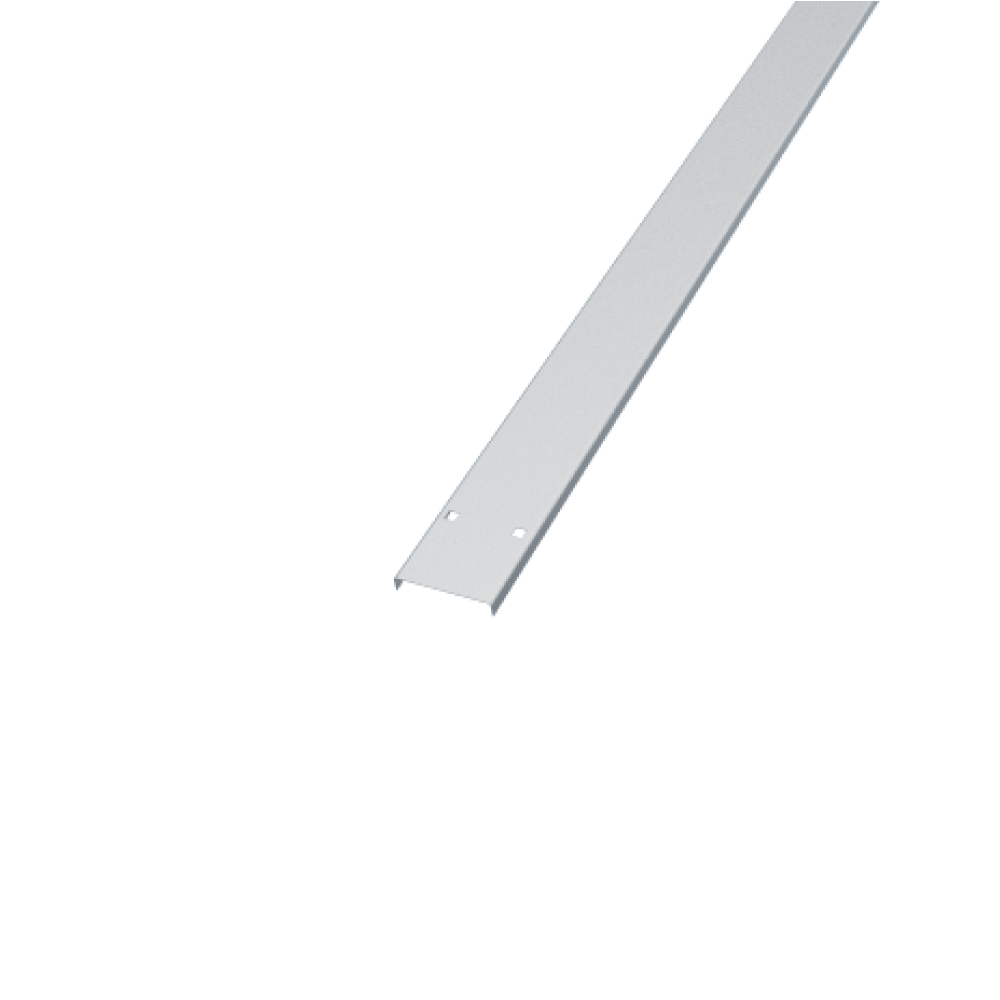

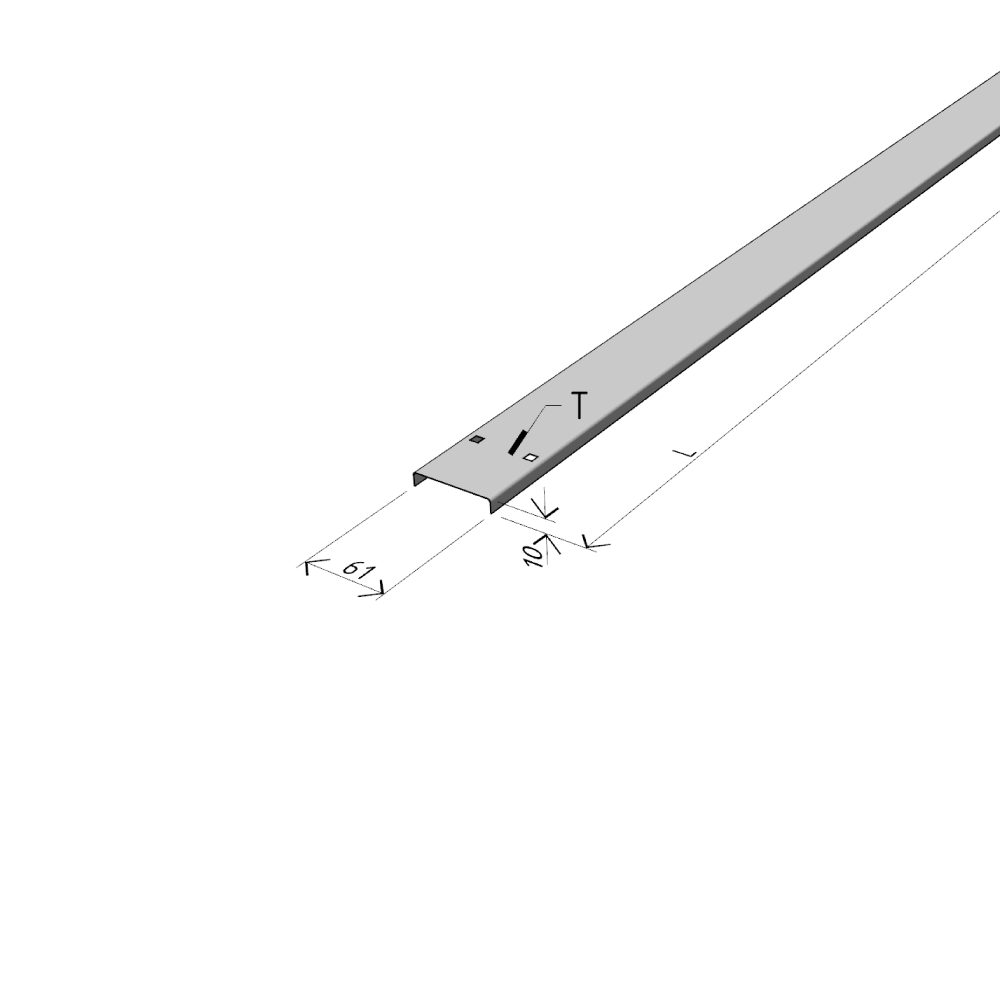

VZM 50 tray cover

  • Functional integrity
VZM 50 tray cover
L (cover length) 2 000 mm 1 000 mm
T (plate thickness) 0,55 mm 1,0 mm
  icon-szicon-zA2icon-A4  icon-zz
Product code
  • SZ ARK -222005
  • ZZ ARK -222204
  • A2 ARK -232005
  • A4 ARK -242005 *

(*) On Request

VZM 50 tray cover
VZM 50 tray cover
VZM 50 tray cover

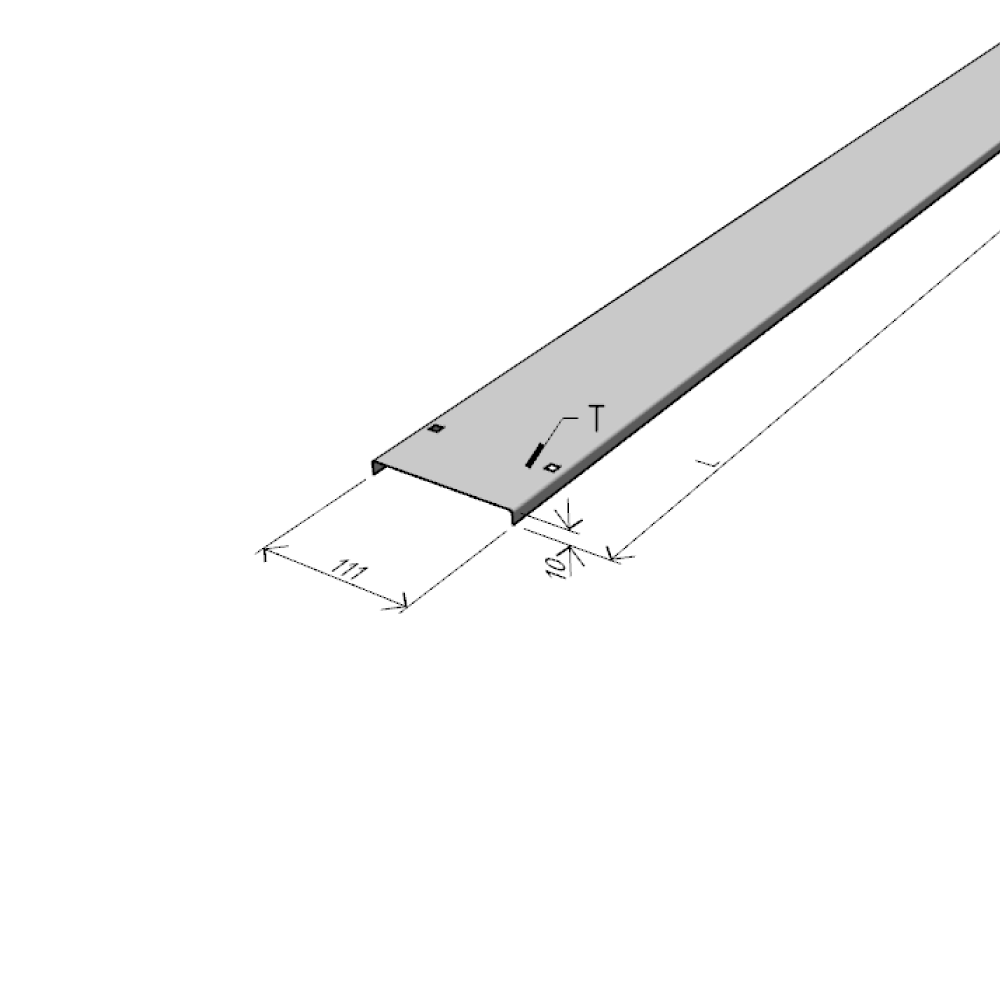

VZM 100 tray cover

  • Functional integrity
VZM 100 tray cover
L (cover length) 2 000 mm 1 000 mm
T (plate thickness) 0,55 mm 1,0 mm
  icon-szicon-zA2icon-A4  icon-zz
Product code
  • SZ ARK -222010
  • ZZ ARK -222209
  • A2 ARK -232010

(*) On Request

VZM 100 tray cover
VZM 100 tray cover
VZM 100 tray cover

VZM 150 tray cover

  • Functional integrity
VZM 150 tray cover
L (cover length) 2 000 mm 1 000 mm
T (plate thickness) 0,55 mm 1,2 mm
  icon-szicon-zA2icon-A4  icon-zz
Product code
  • SZ ARK -222015
  • ZZ ARK -222214
  • A2 ARK -232015

(*) On Request

VZM 150 tray cover
VZM 150 tray cover
VZM 150 tray cover

VZM 200 tray cover

  • Functional integrity
VZM 200 tray cover
L (cover length) 2 000 mm 1 000 mm
T (plate thickness) 0,8 mm 1,2 mm
  icon-szicon-zA2icon-A4  icon-zz
Product code
  • SZ ARK -222020
  • ZZ ARK -222219
  • A2 ARK -232020

(*) On Request

VZM 200 tray cover
VZM 200 tray cover
VZM 200 tray cover

VZM 250 tray cover

  • Functional integrity
VZM 250 tray cover
L (cover length) 2 000 mm 1 000 mm
T (plate thickness) 0,8 mm 1,2 mm
  icon-szicon-zA2icon-A4  icon-zz
Product code
  • SZ ARK -222025
  • ZZ ARK -222224
  • A2 ARK -232025

(*) On Request

VZM 250 tray cover
VZM 250 tray cover
VZM 250 tray cover

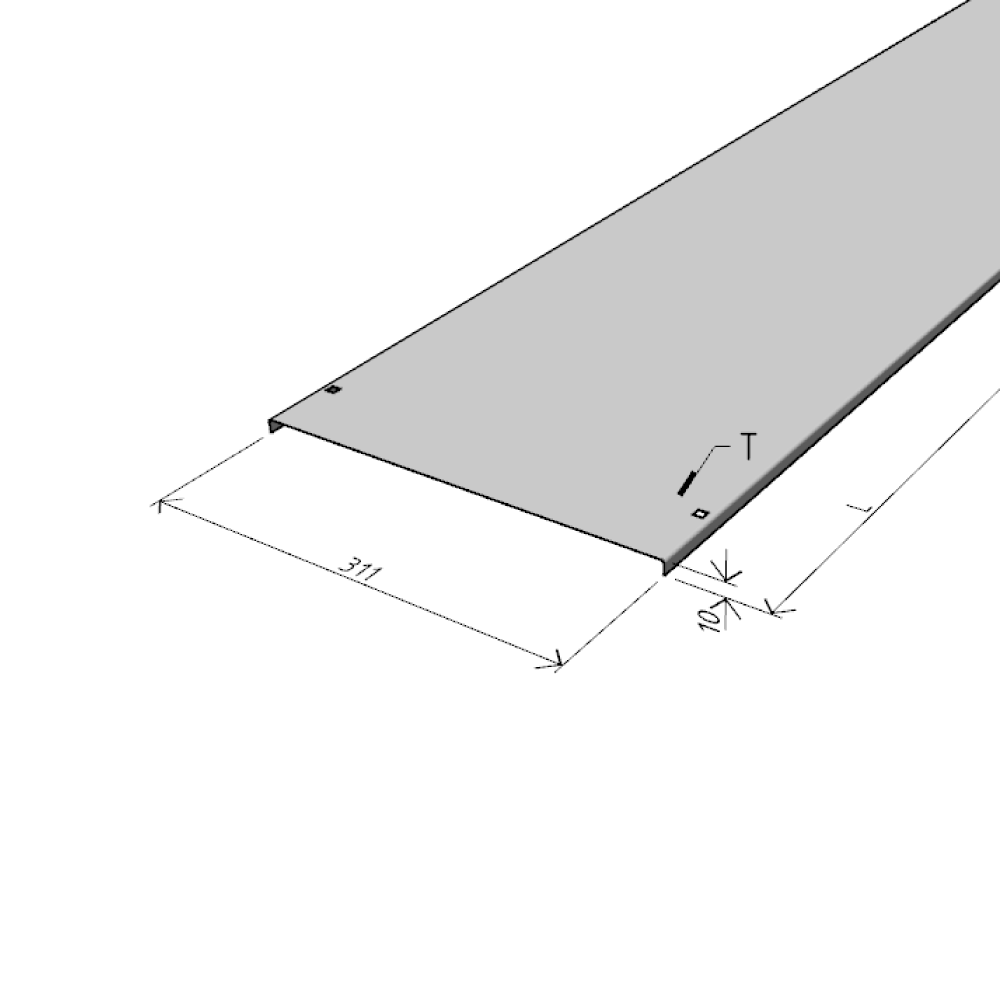

VZM 300 tray cover

  • Functional integrity
VZM 300 tray cover
L (cover length) 2 000 mm 1 000 mm
T (plate thickness) 0,8 mm 1,5 mm
  icon-szicon-zA2icon-A4  icon-zz
Product code
  • SZ ARK -222030
  • ZZ ARK -222229
  • A2 ARK -232030

(*) On Request

VZM 300 tray cover
VZM 300 tray cover
VZM 300 tray cover

VZM 400 tray cover

  • Functional integrity
VZM 400 tray cover
L (cover length) 2 000 mm 1 000 mm
T (plate thickness) 0,8 mm 1,5 mm
  icon-szicon-zA2icon-A4  icon-zz
Product code
  • SZ ARK -222040
  • ZZ ARK -222239
  • A2 ARK -232040

(*) On Request

VZM 400 tray cover
VZM 400 tray cover
VZM 400 tray cover

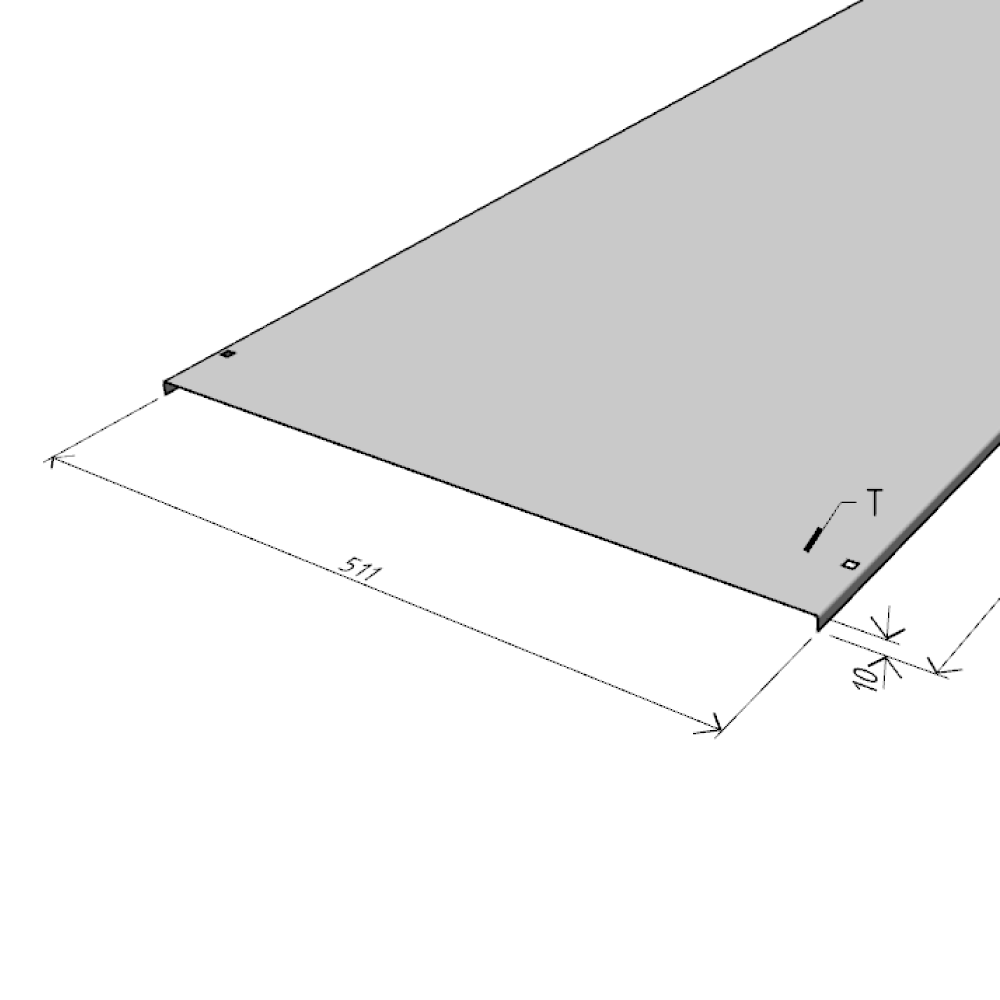

VZM 500 tray cover

  • Functional integrity
VZM 500 tray cover
L (cover length) 2 000 mm 1 000 mm
T (plate thickness) 0,8 mm 1,5 mm
  icon-szicon-zA2icon-A4  icon-zz
Product code
  • SZ ARK -222050
  • ZZ ARK -222249
  • A2 ARK -232050

(*) On Request

VZM 500 tray cover
VZM 500 tray cover
VZM 500 tray cover
