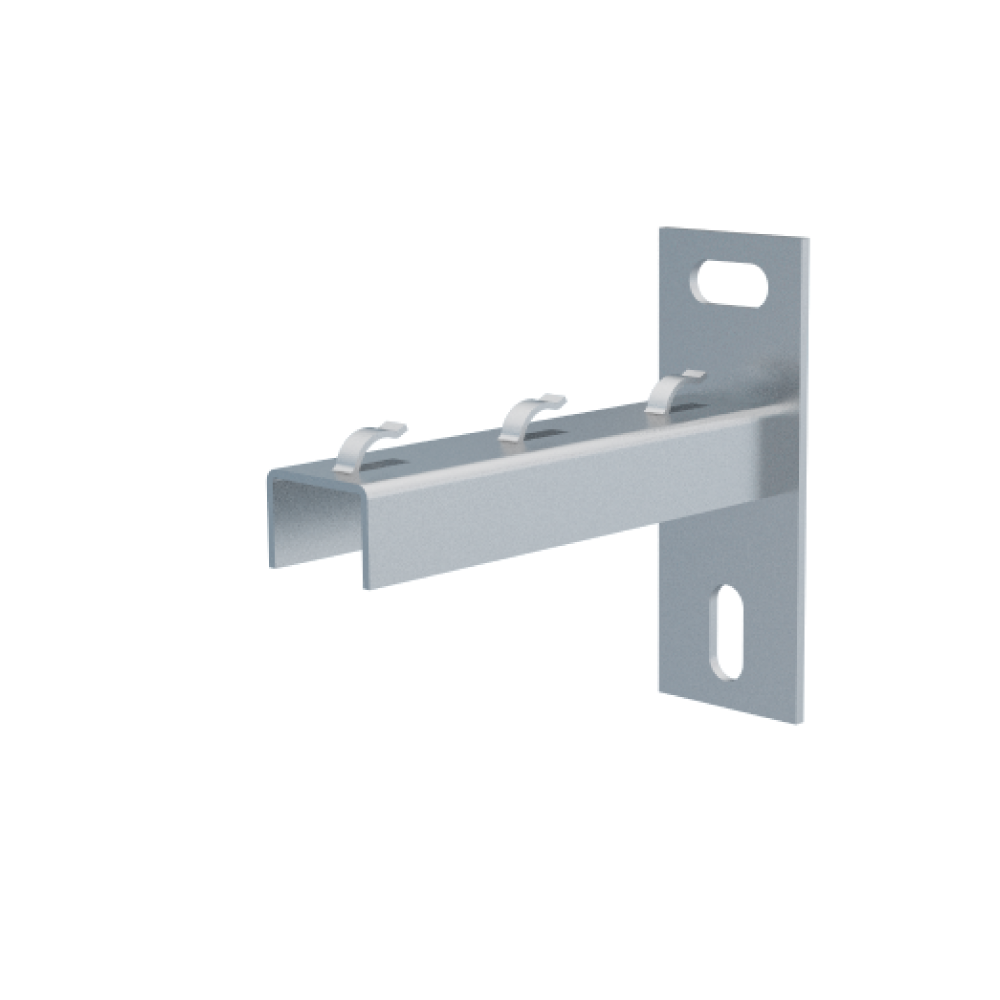

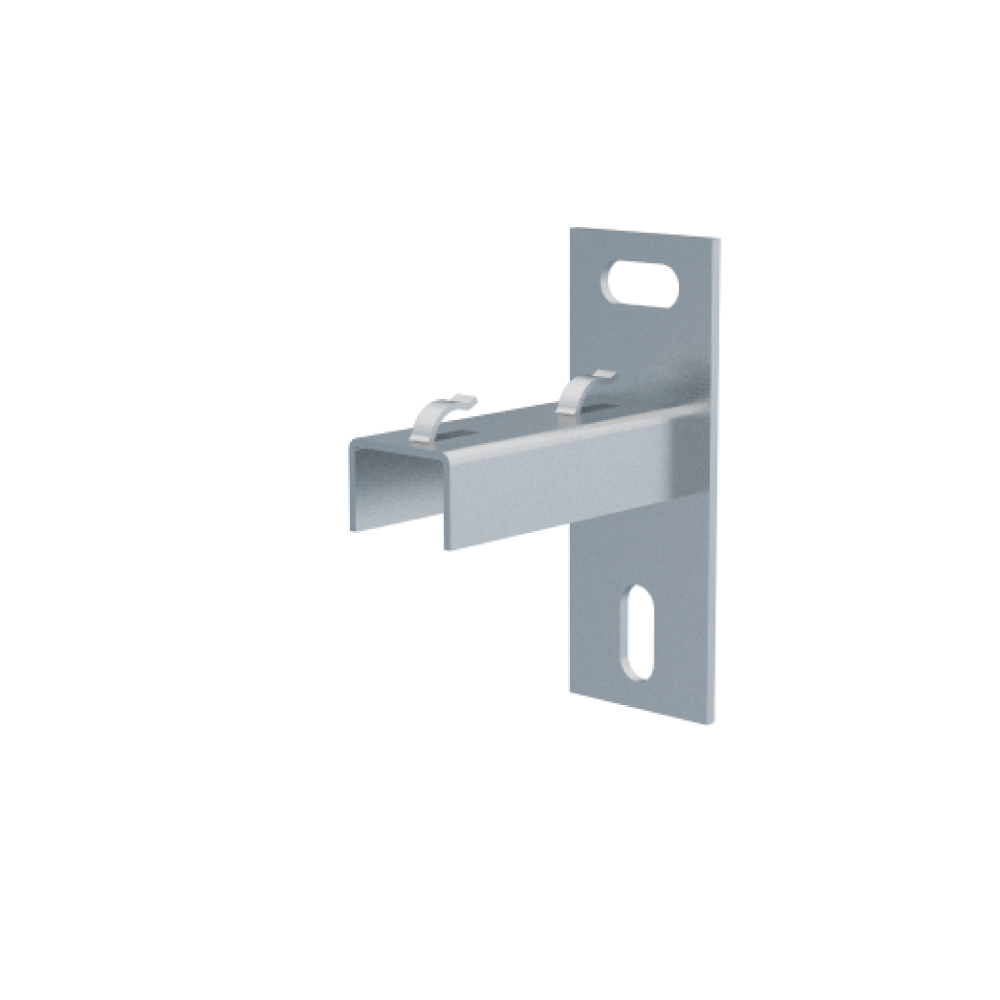

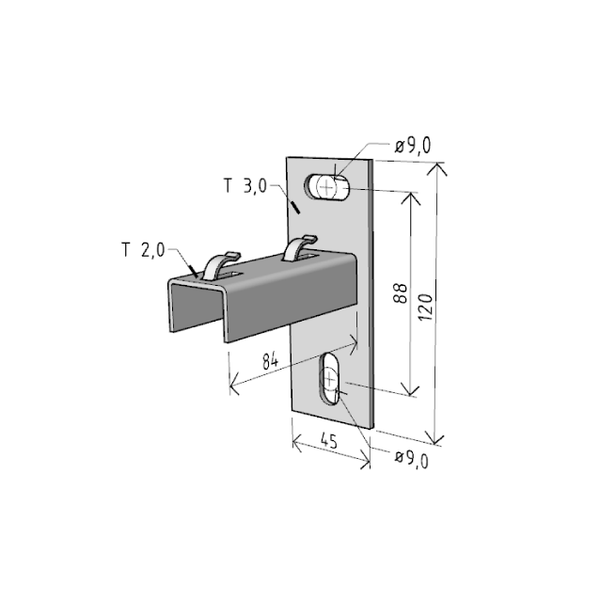

NPZM 50 cantilever
Load Capacity  |
90 kg |
| T (plate thickness) - U-profile | 2,0 mm |
| T (plate thickness) – base support | 3,0 mm |
| l (length of cantilever) | 80 mm |
| h (hight of cantilever) | 120 mm |

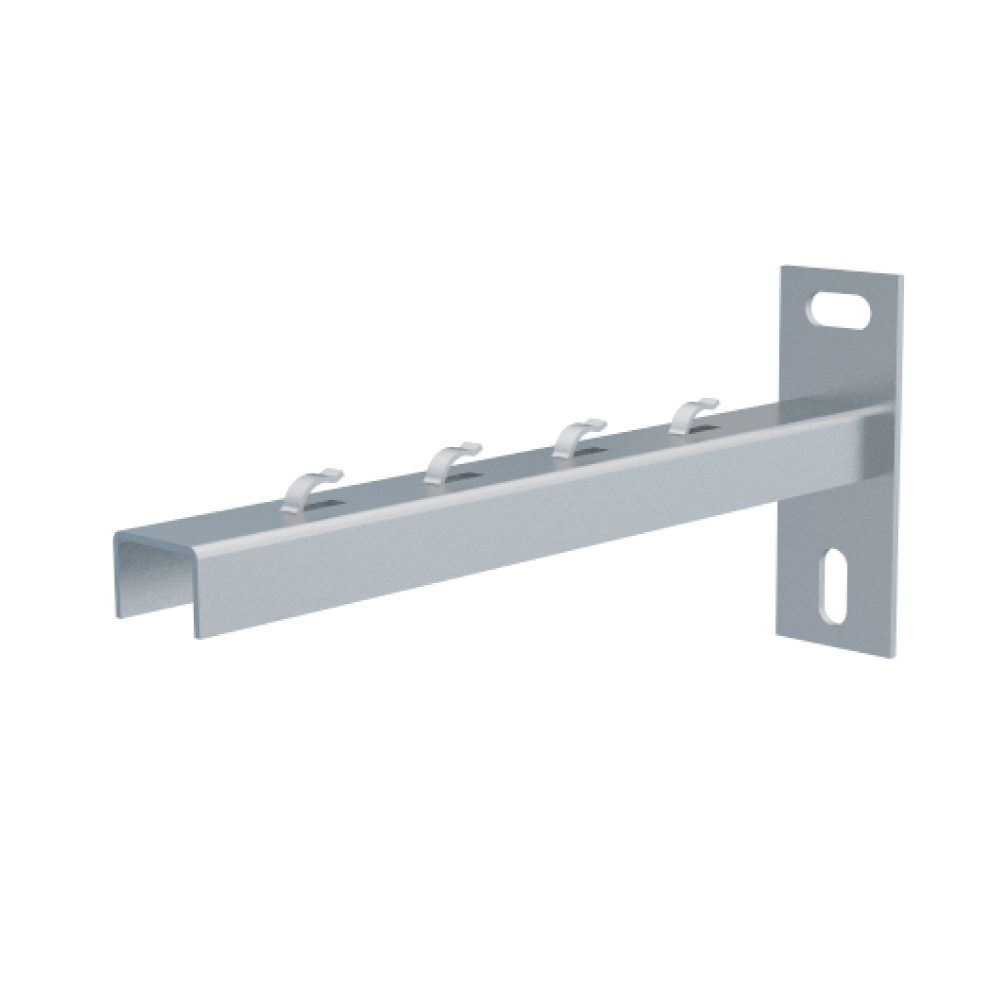

NPZM bracket

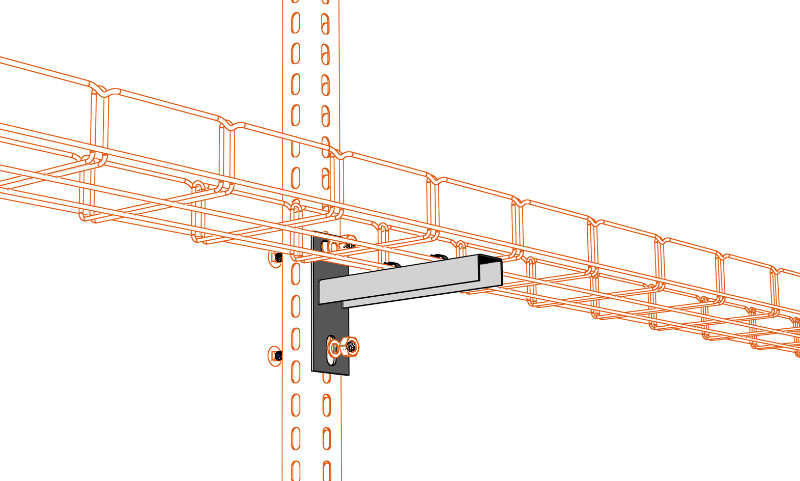

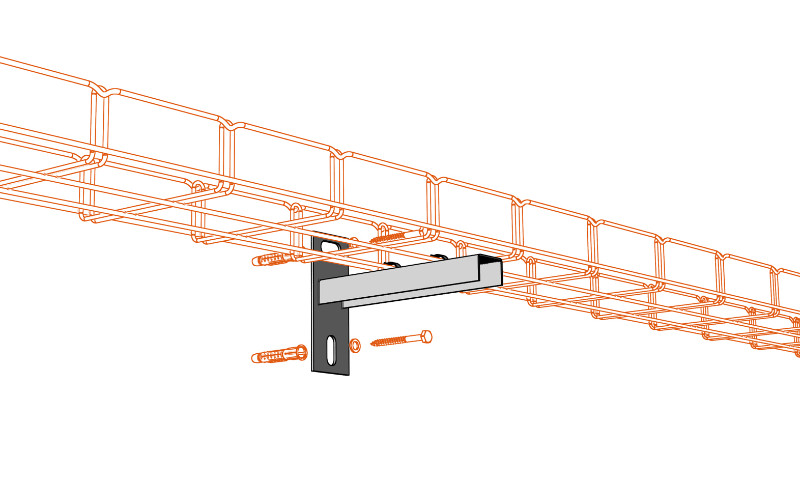

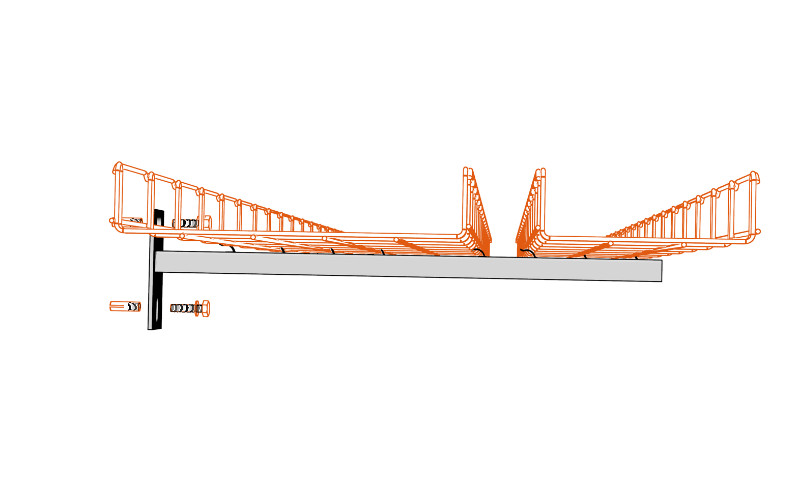

NPZM brackets are used as wall supporting elements for cable route mounting, their crucial technical advantage being simple and fast installation of anchoring elements. In case these cantilevers are used in spatial installations, they are anchored into STPM rail struts with side perforations. In case of vertical wall mounting of several cable tracks, they are anchored into STNM rail struts. For easy pathway installation, the cantilevers are equipped with boltless clamps.

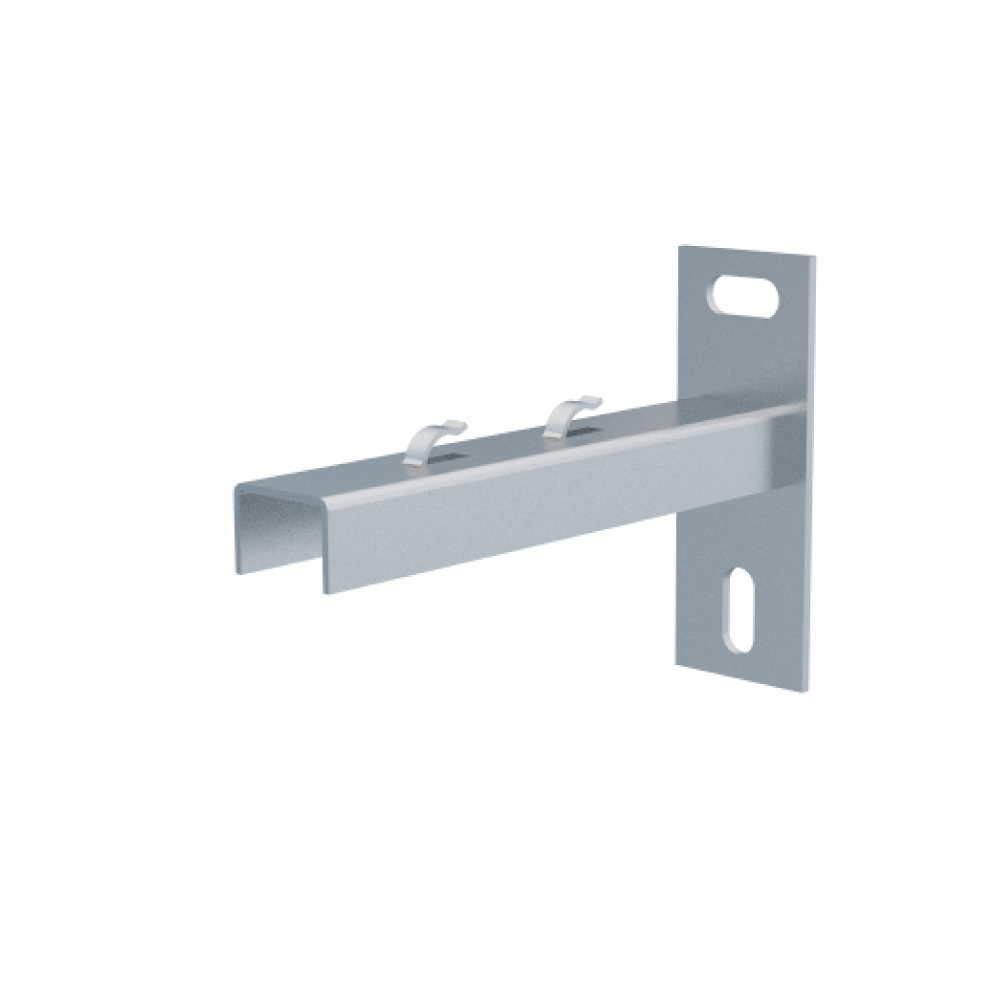

NPZM 100 cantilever
| Load Capacity |
88 kg |
| T (sheet thickness) - U-profile | 2,0 mm |
| T (plate thickness) – base support | 3,0 mm |
| l (length of cantilever) | 80 mm |
| h (hight of cantilever) | 120 mm |
can be used for 50 and 100 mm mesh trays

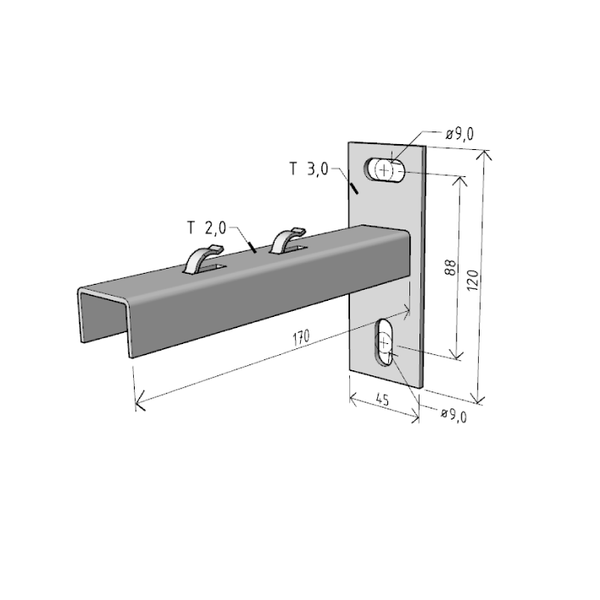

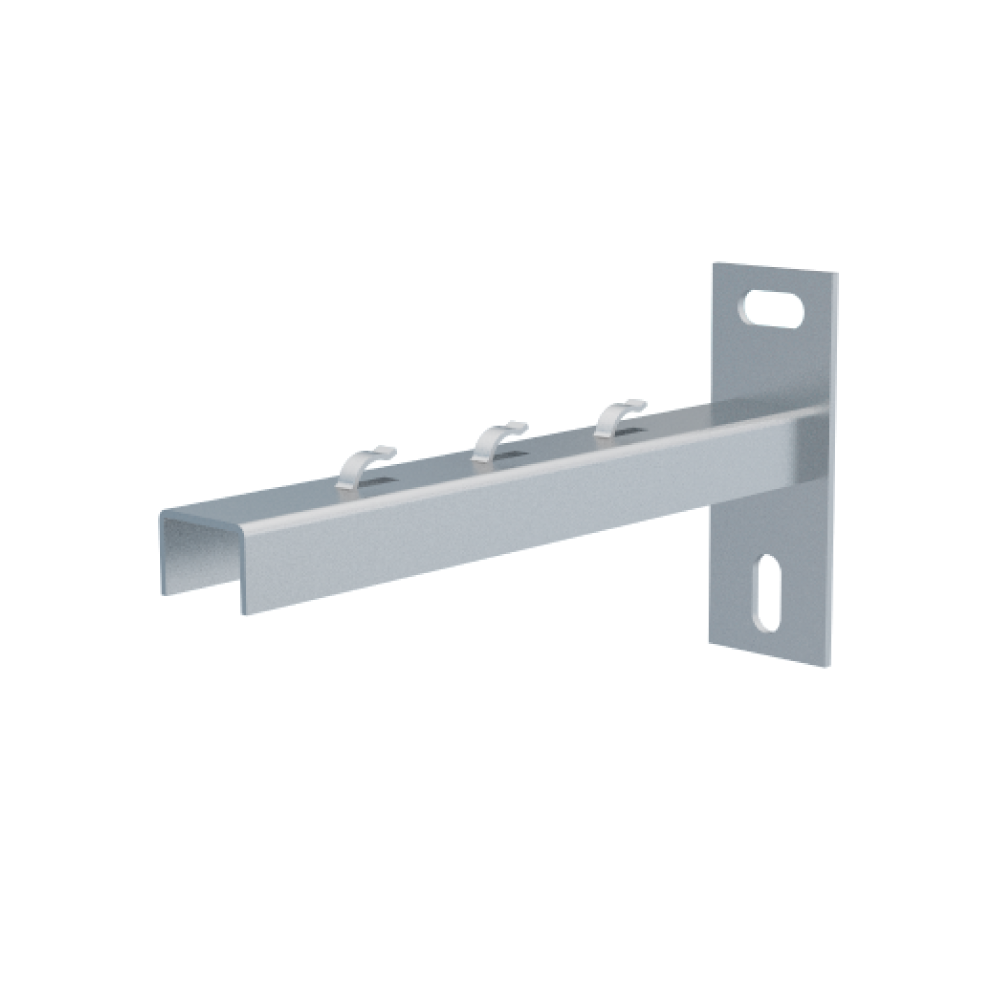

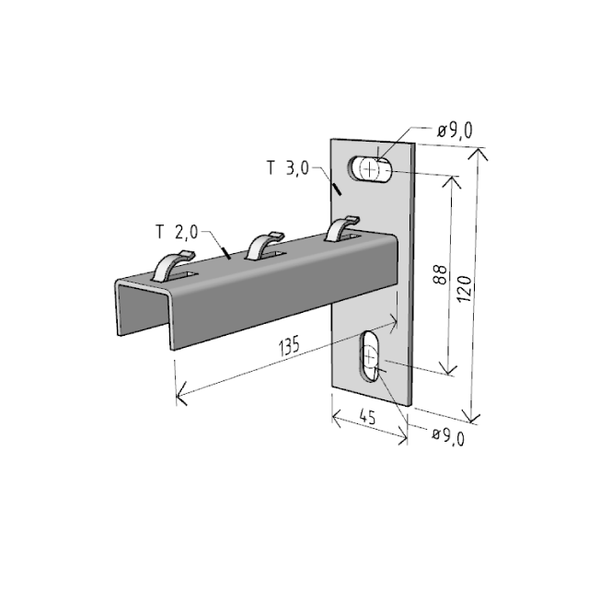

NPZM 150 cantilever
| Load Capacity |
86 kg |
| T (sheet thickness) - U-profile | 2,0 mm |
| T (plate thickness) – base support | 3,0 mm |
| l (length of cantilever) | 170 mm |
| h (hight of cantilever) | 120 mm |

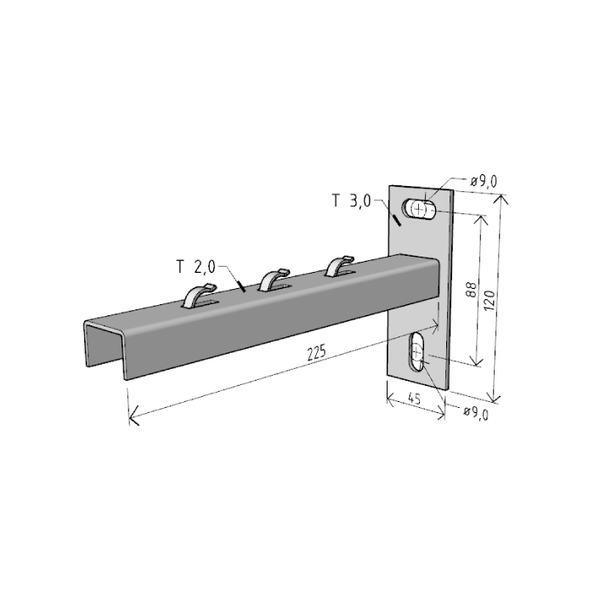

NPZM 200 cantilever
| Load Capacity |
85 kg |
| T (sheet thickness) - U-profile | 2,0 mm |
| T (plate thickness) – base support | 3,0 mm |
| l (length of cantilever) | 225 mm |
| h (hight of cantilever) | 120 mm |

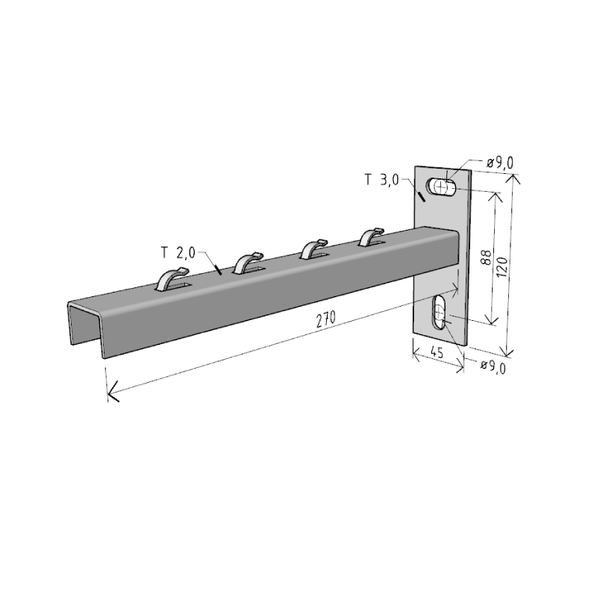

NPZM 250 cantilever
| Load Capacity |
82 kg |
| T (sheet thickness) - U-profile | 2,0 mm |
| T (plate thickness) – base support | 3,0 mm |
| l (length of cantilever) | 270 mm |
| h (hight of cantilever) | 120 mm |

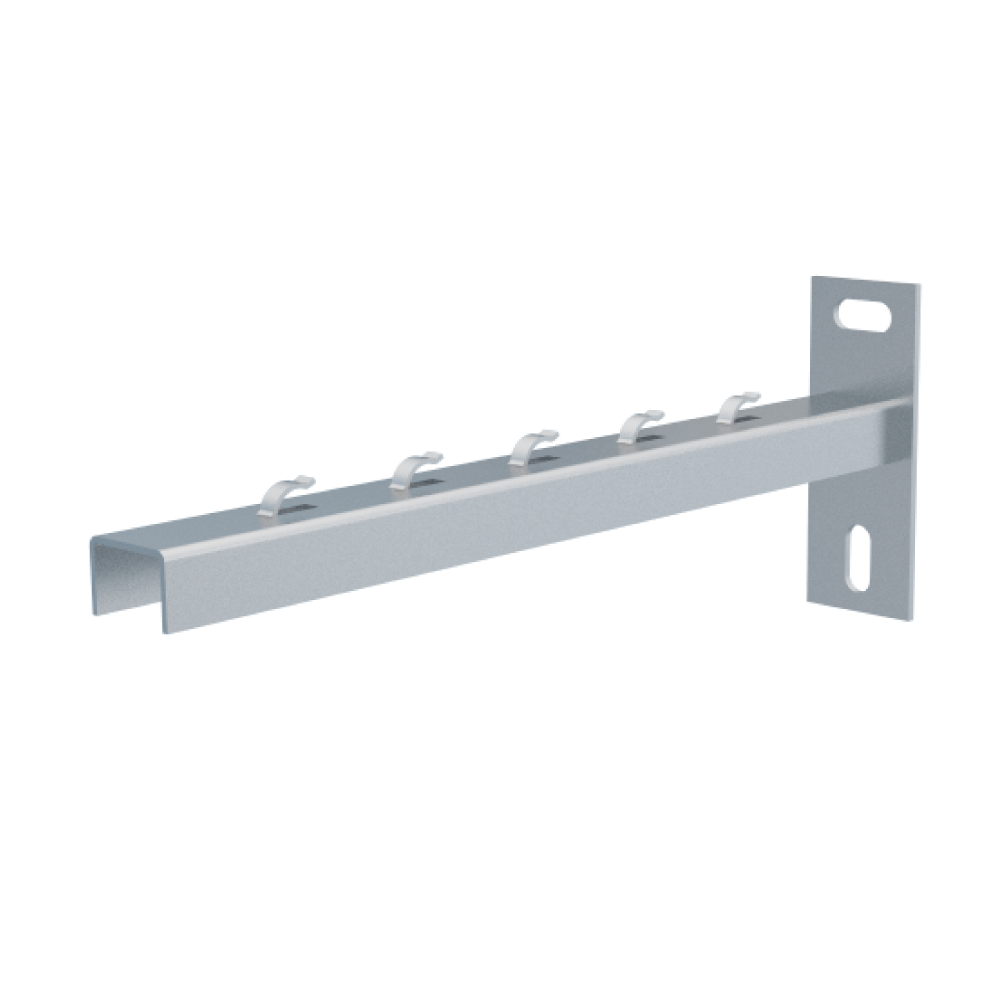

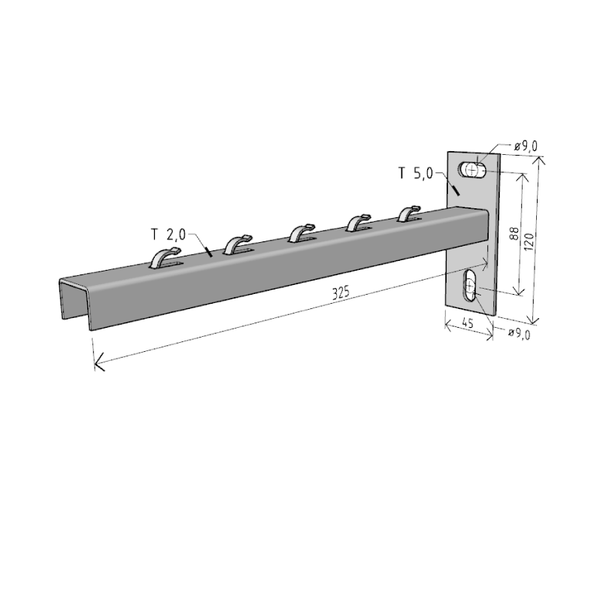

NPZM 300 cantilever
| Load Capacity |
80 kg |
| T (sheet thickness) - U profile | 3,0 mm |
| T (plate thickness) - base support | 5,0 mm |
| l (length of cantilever) | 320 mm |
| h (hight of cantilever) | 120 mm |

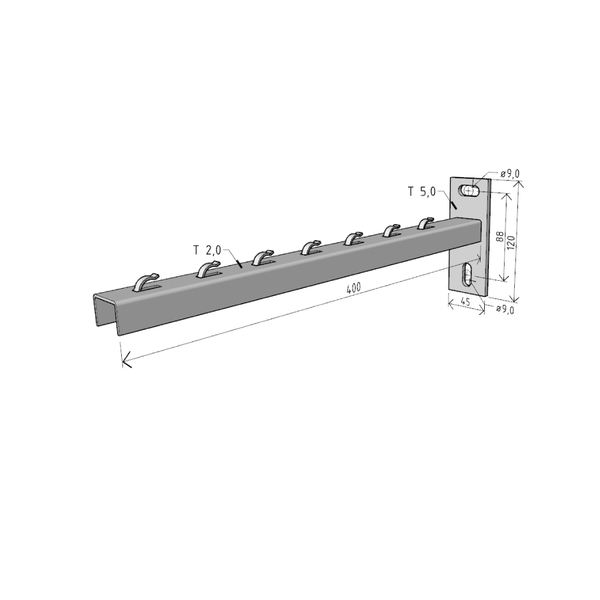

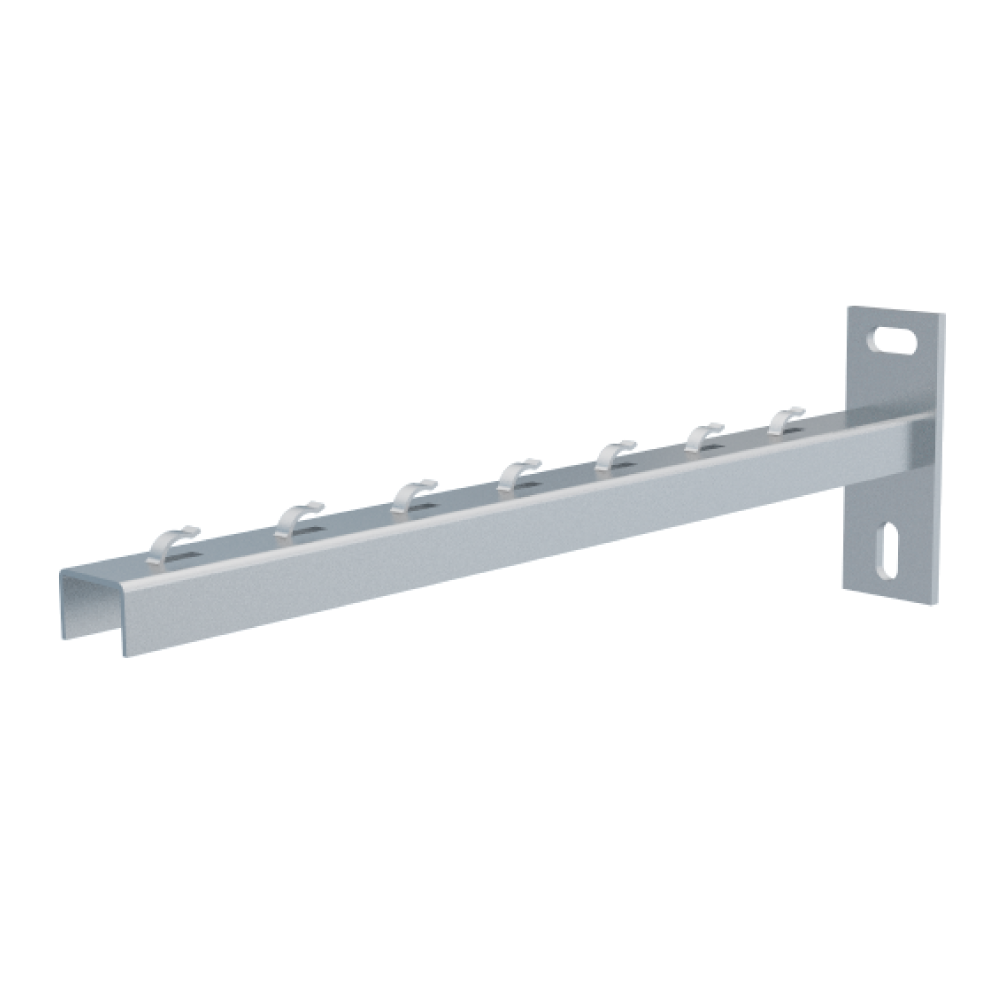

NPZM 400 cantilever
| Load Capacity |
78 kg |
| T (sheet thickness) - U-profile | 3,0 mm |
| T (plate thickness) – base support | 5,0 mm |
| l (length of cantilever) | 400 mm |
| h (hight of cantilever) | 120 mm |

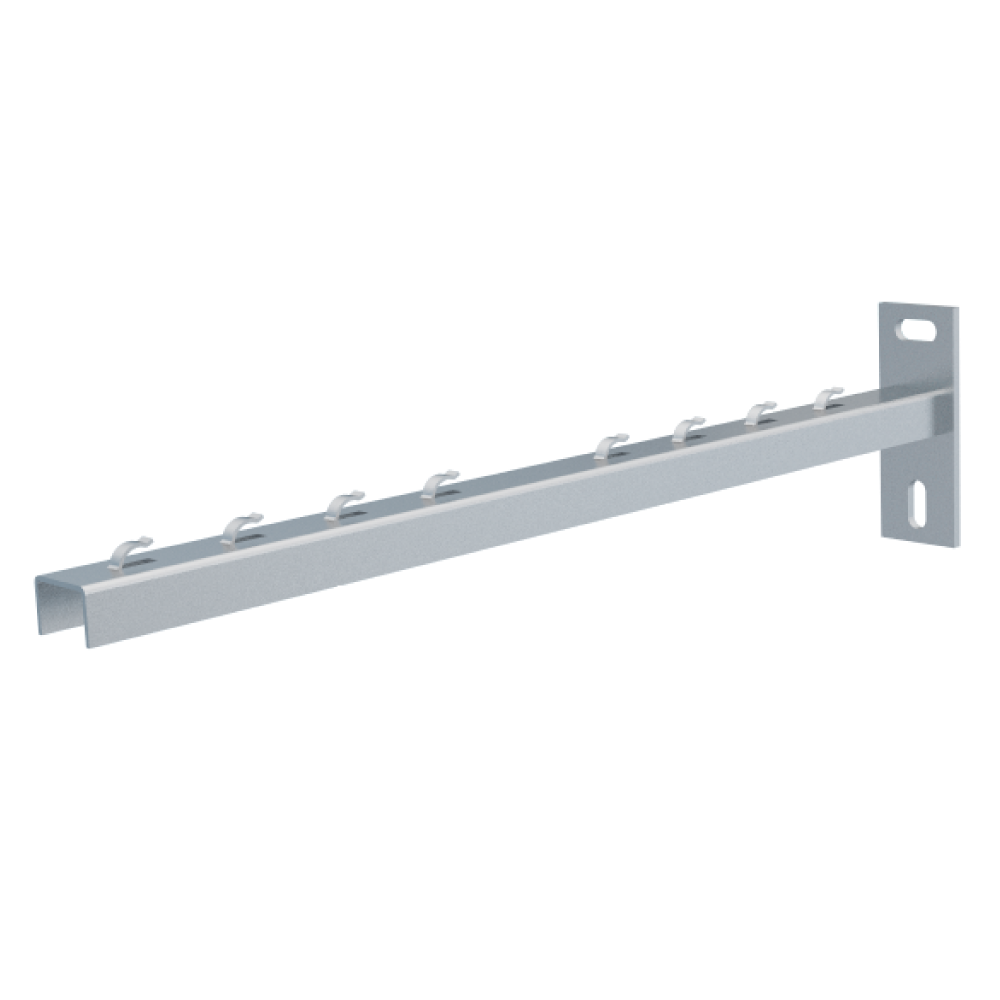

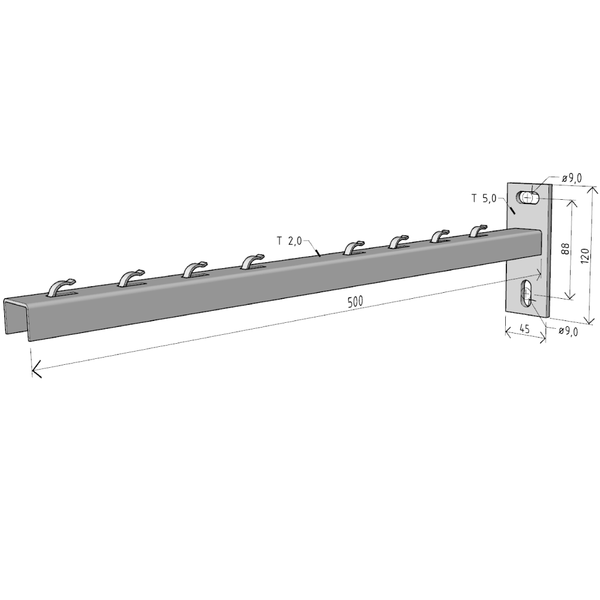

NPZM 500 cantilever
| Load Capacity |
75 kg |
| T (sheet thickness) U-profile | 3,0 mm |
| T (plate thickness) – base support | 5,0 mm |
| l (length of cantilever) | 500 mm |
| h (hight of cantilever) | 120 mm |
