Product sheets of particular elements MERKUR 2

Arkys Ltd., Podstránská 1, 627 00 Brno | IČ: 25321366, DIČ: CZ25321366, KOS v Brně oddíl C, vložka 25198

Tel.: +420 517 541, Fax.: +420 517 541 220, e-mail:

arkys@arkys.cz

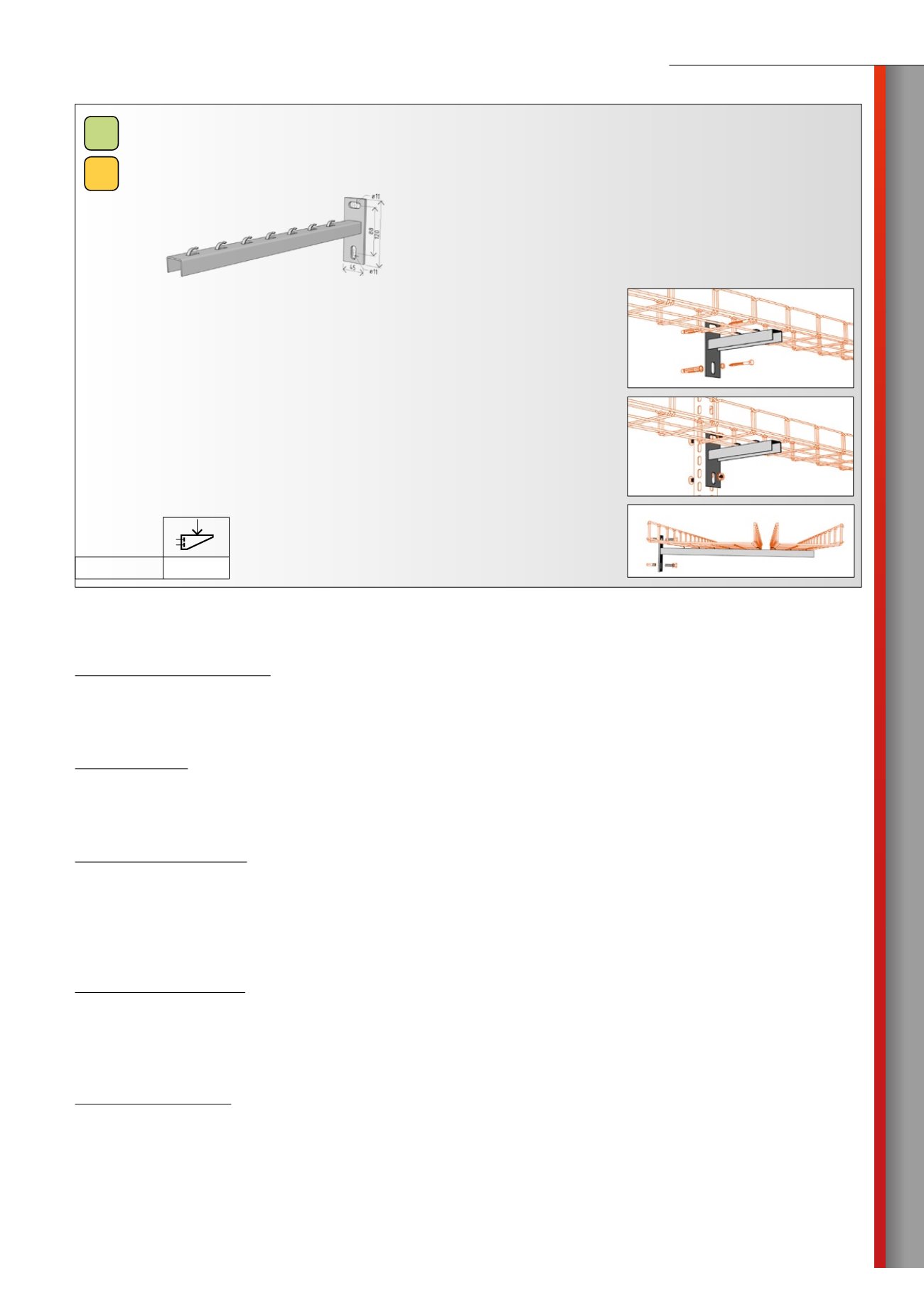

NPZM 400

cantilever

capacity

NPZM 400

78,3 kg

galvanic

zinc

hot

zinc-dipped

Product:

NPZM 400 cantilever

Manufacturer:

ARKYS s.r.o., Podstranska 1, 627 00 Brno, Czech Republic

Technical features:

Material - steel sheet

Surface finish (finish) – cold galvanized

– hot zinc dipped by dipping

Use:

The NPZM-series cantilevers are used as wall bearing elements for wall mounting of cable tracks. Their major technical advantage is the

quick and easy installation of anchors. For spatial track installations the cantilevers are anchored in STPM spatial strut. In case of a plura-

lity of wall mounted parallel tracks the combination with STNM wall strut can be used.

Specifications:

Length – 400 mm

Height (base) – 120 mm

Width (base) – 45 mm

Sheet thickness (body) - 2,0 mm

Sheet thickness (base) – 5,0 mm

Load capacity:

78,3 kg

Note: The declared load capacity depends on the professional assembly and correct anchor technique ((use of appropriate anchoring elements according

to actual application).

Description:

The NPZM 400 cantilever is designed with screwless clamp for easy installation of mesh cable trays MERKUR 2 without additional conne-

cting parts. In the base of the cantilever are two holes Ø 11 mm for easy fixing to the wall position.

Web mounting

This execution serves for spatial

installations of racks or for multiple

wall mounting of a number of tracks

above each other.

Wall mounting

This execution serves for anchoring

cable tracks directly in the masonry

or another loading vertical

construction.

Compound mounting

for more trays on one cantilever

For proper function of cantilevers and

to achieve their nominal loading ca-

pacity it is important to maintain even

distribution of weighton their length.

product sheet
