nosník NZMC 200
SZ
sendzimirový
zinek
Loading
capacity max. tray width
NZMC 200 90 kg 50 kg M2/200

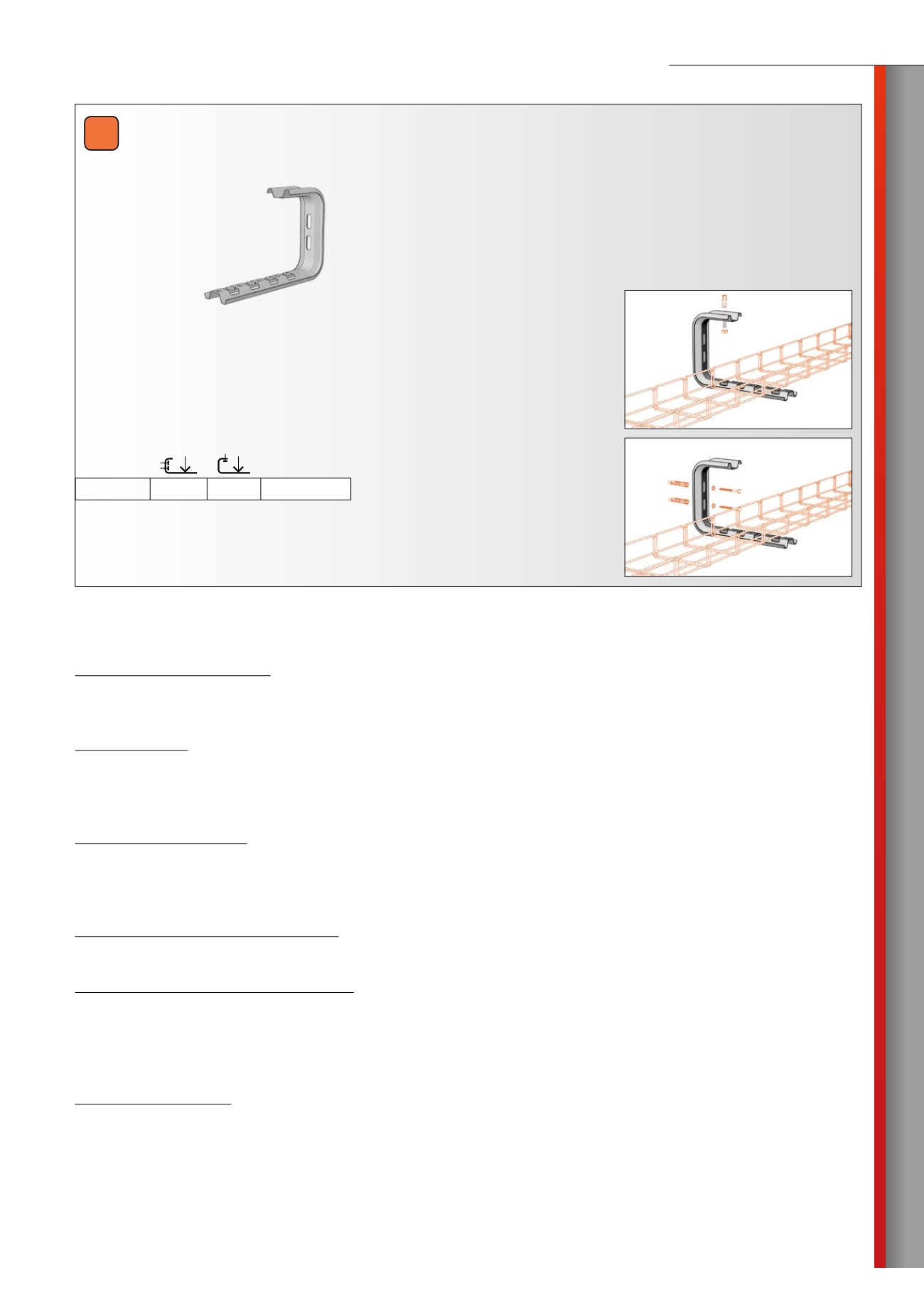

Product: NZMC 200 bracket
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material - steel sheet
Surface finish (finish) – sendzimir zinc coated
Use:
The NZMC series brackets are mainly used as bearing elements for installations under the ceiling. Their major advantage is the easy acce-
ss to mesh trays when laying the cables, which can not be enabled by other implementations, with the exception of certain more complex
design solutions.
Specifications:
Length – 270 mm
Height – 190 mm
Sheet thickness - 2,0 mm
Load capacity (wall mounting):
90 kg
Load capacity (ceiling mounting):
50 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique ((use of appropriate anchoring elements according
to actual application).
Description:
The NZMC 200 bracket is designed with screwless clamp for easy installation of mesh cable trays MERKUR 2 without additional connecti-
ng parts. On the side of the bracket are two holes Ø 11 mm and on the upper side is one hole Ø 11 mm for easy fixing to the wall position.
This bracket is also intended for 100 mm mesh trays.
Wall mounting
serves to anchor cable tracks
directly into the masnory or
to another vertical bulding
structure.
Ceiling mounting
serves to anchor cable tracks
running under the ceiling or
suspended from another hori-
zontal structure.
