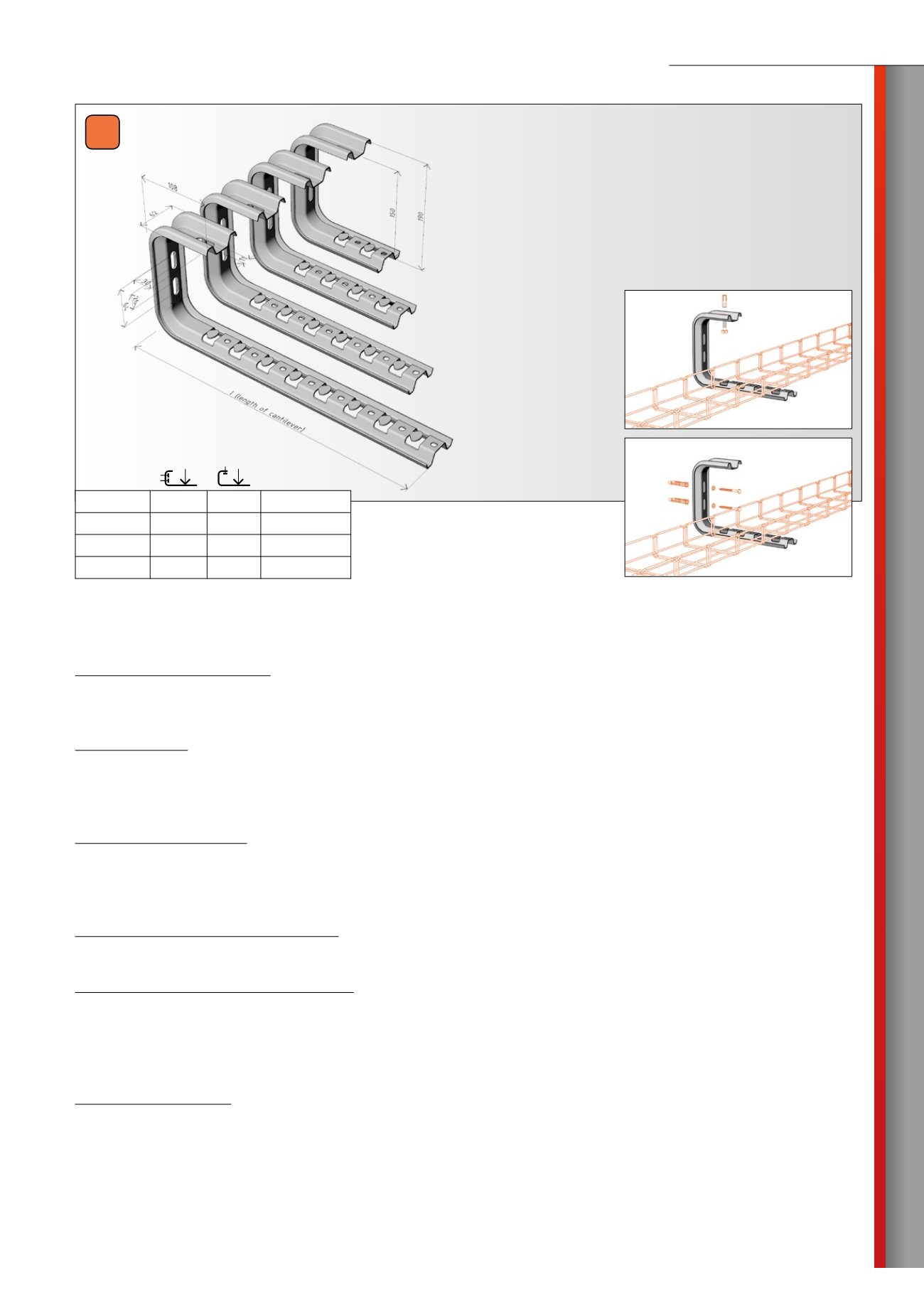

NZMC bracket
Wall mounting
serves to anchor cable tracks
directly into the masnory or
to another vertical bulding
structure.
Ceiling mounting
serves to anchor cable tracks
running under the ceiling or
suspended from another hori-
zontal structure.
Loading
capacity max. tray width
NZMC 100 140 kg 85 kg M2/50
NZMC 200 90 kg 50 kg M2/200
NZMC 300 50 kg 30 kg M2/300
NZMC 400 37 kg 23 kg M2/400
SZ
sendzimirový
zinek
Product: NZMC-series bracket
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material - steel sheet
Surface finish (finish) – sendzimir zinc coated
Use:
The NZMC series brackets are mainly used as bearing elements for installations under the ceiling. Their major advantage is the easy acce-
ss to mesh trays when laying the cables, which can not be enabled by other implementations, with the exception of certain more complex
design solutions.
Specifications:
Length – 165 – 470 mm (according to type of bracket)
Height – 190 mm
Sheet thickness - 2,0 mm
Load capacity (wall mounting):
37 – 140 kg (according to type of bracket)
Load capacity (ceiling mounting):
23 – 85 kg (according to type of bracket)
Note: The declared load capacity depends on the professional assembly and correct anchor technique ((use of appropriate anchoring elements according
to actual application).
Description:
The NZMC-series brackets are designed with screwless clamp for easy installation of mesh cable trays MERKUR 2 without additional
connecting parts. On the side of the brackets are two holes Ø 11 mm and on the upper side is one hole Ø 11 mm for easy fixing to the
wall position.
The brackets are not designed for 500 mm (width) mesh trays.
