arkys@arkys.czNZM 100
cantilever
Loading
capacity
NZM 100
40 kg
can be used for
50 and 100 mm mesh trays

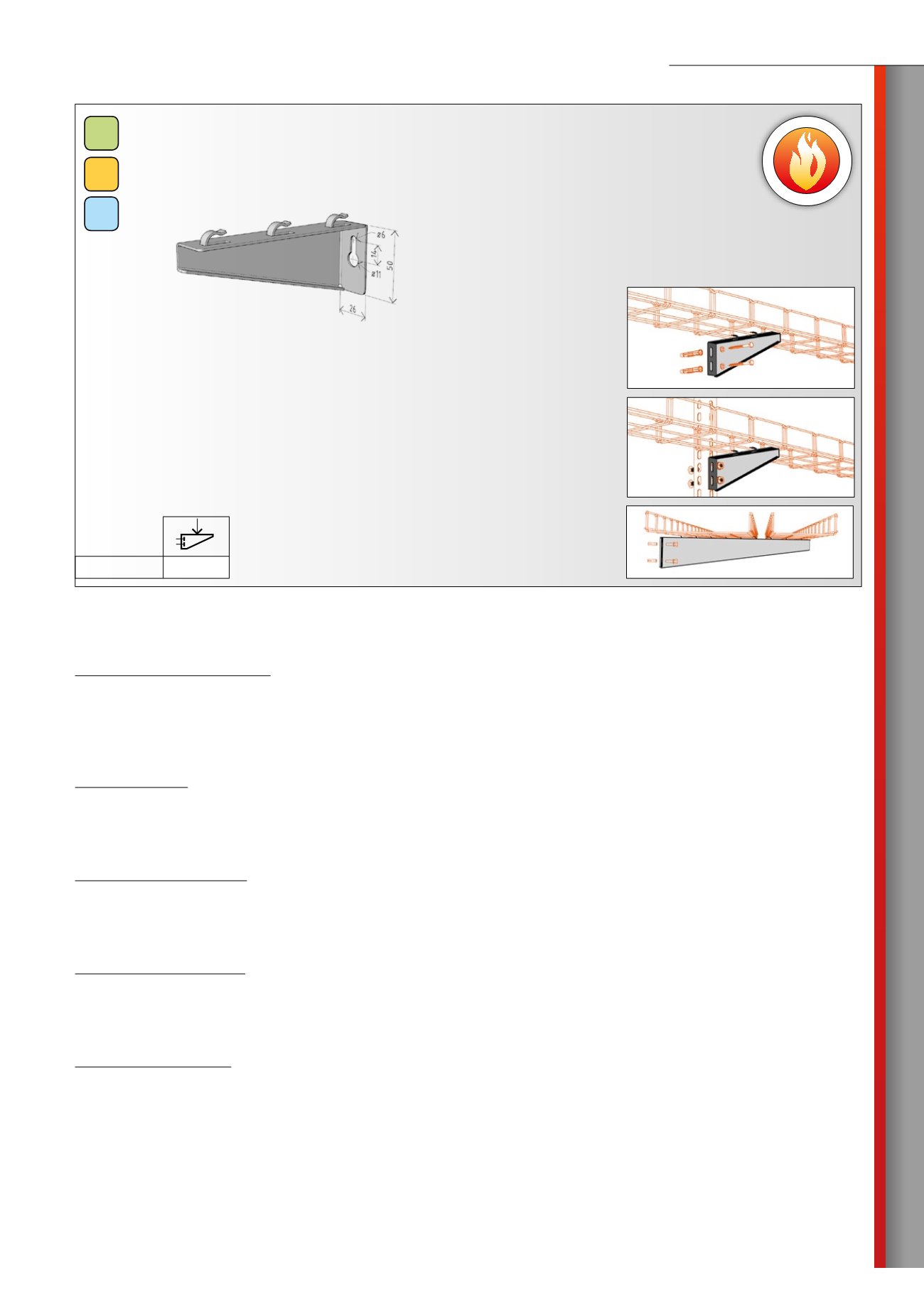

Product:
NZM 100 cantilever
Manufacturer:
ARKYS s.r.o., Podstranska 1, 627 00 Brno, Czech Republic
Technical features:
Material - steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hor zinc dipped by dipping
– stainless AISI 304 “A2”
Use:
The NZM-series cantilevers are used as wall bearing elements for wall mounting of cable tracks. For spatial track installations the cantile-
vers are anchored in STPM spatial strut. In case of a plurality of wall mounted parallel tracks the combination with STNM wall strut can be
used.
Specifications:
Length - 133 mm
Height - 52 mm
Sheet thickness - 1,5 mm
Load capacity:
40 kg
Note: The declared load capacity depends on professional installation and on correct anchoring (use of appropriate anchoring elements according to
actual application).
Description:
The NZM 100 cantilever is designed with screwless clamp for easy installation of mesh cable trays MERKUR 2 without additional connecti-
ng parts. In the base of the cantilever is an oval hole Ø 6 mm for easy fixing to the wall position.
F
i
r
e
r
e
s
i
s
t
a
n
c
e
t
e
s
t
e
d
GZ
galvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
Web mounting
This execution serves for spatial
installations of racks or for multiple
wall mounting of a number of tracks
above each other.
Wall mounting
This execution serves for anchoring
cable tracks directly in the masonry
or another loading vertical
construction.
Compound mounting
for more trays on one cantilever
For proper function of cantilevers and
to achieve their nominal loading ca-
pacity it is important to maintain even
distribution of weighton their length.
