cantilever
Web mounting
This execution serves for spatial
installations of racks or for multiple
wall mounting of a number of tracks
above each other.
Wall mounting
This execution serves for
anchoring cable tracks
directly in the masonry or
another loading vertical
construction.
Loading
capacity
NZM 50
30 kg
NZM 100
40 kg
NZM 150
45 kg
NZM 200
50 kg
NZM 250
75 kg
NZM 300
100 kg
NZM 400
120 kg
NZM 500
150 kg
Compound mounting
for more trays on one cantilever
For proper function of cantilevers and
to achieve their nominal loading ca-
pacity it is important to maintain even
distribution of weighton their length.
GZ
galvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
F
i
r
e
r
e
s
i
s
t
a
n
c
e
t
e
s
t
e
d

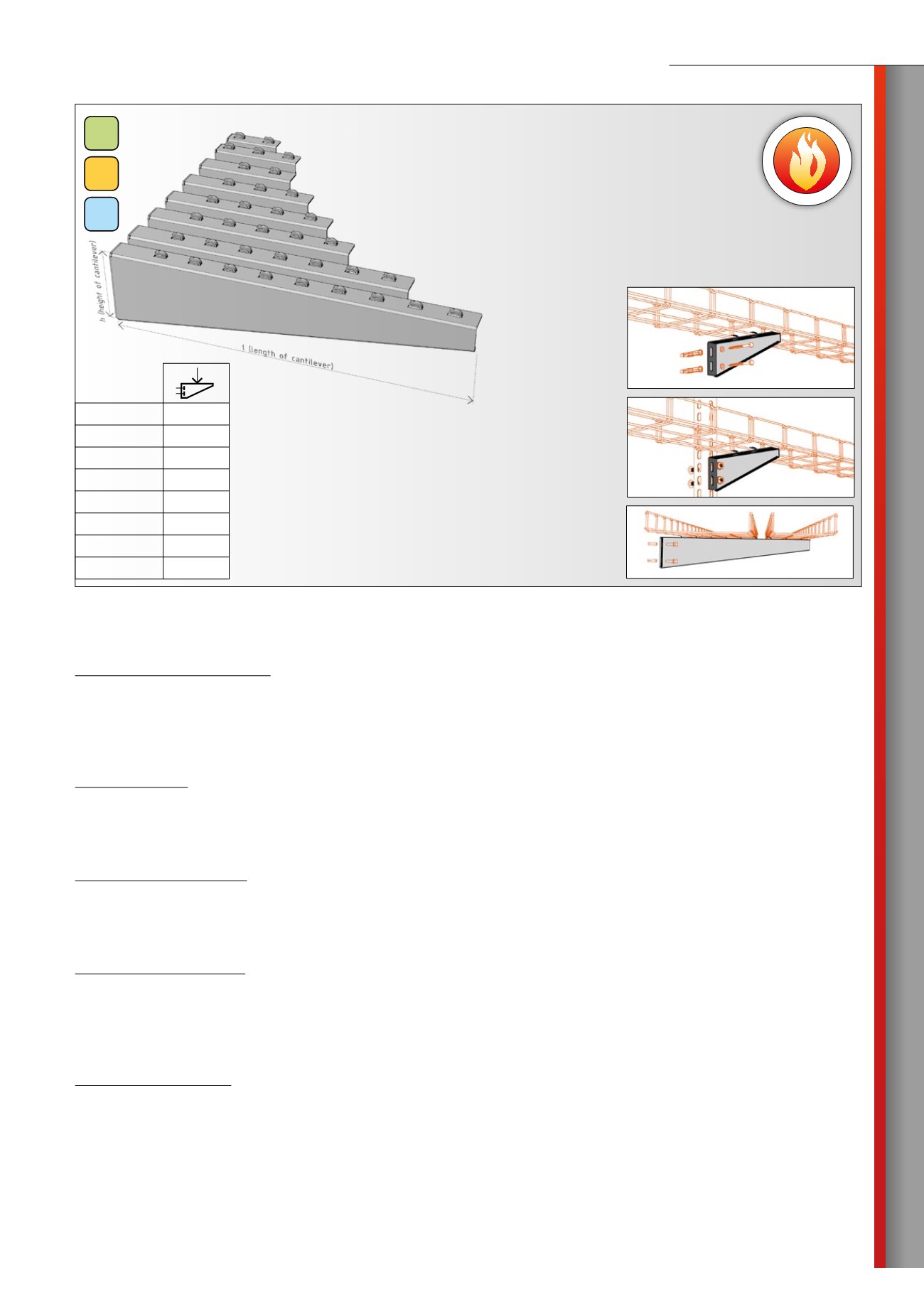

Product:
NZM-series cantilever
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material - steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Use:
The NZM-series cantilevers are used as wall bearing elements for wall mounting of cable tracks. For spatial track installations the cantile-
vers are anchored in STPM spatial strut. In case of a plurality of wall mounted parallel tracks the combination with STNM wall strut can be
used.
Specifications:
Length – 83-500 mm (according to type of cantilever)
Height – 32-105 mm (according to type of cantilever)
Sheet thickness – 1,5 and 2,0 mm (according to type of cantilever)
Load capacity:
30-150 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique ((use of appropriate anchoring elements according
to actual application).
Description:
The NZM-series cantilevers are designed with screwless clamp for easy installation of mesh cable trays MERKUR 2 without additional
connecting parts. In the base of the cantilever are holes Ø 6 or 9 mm (according to type of cantilever) for easy fixing to the wall position.
