PIM

fixing plate to

profile

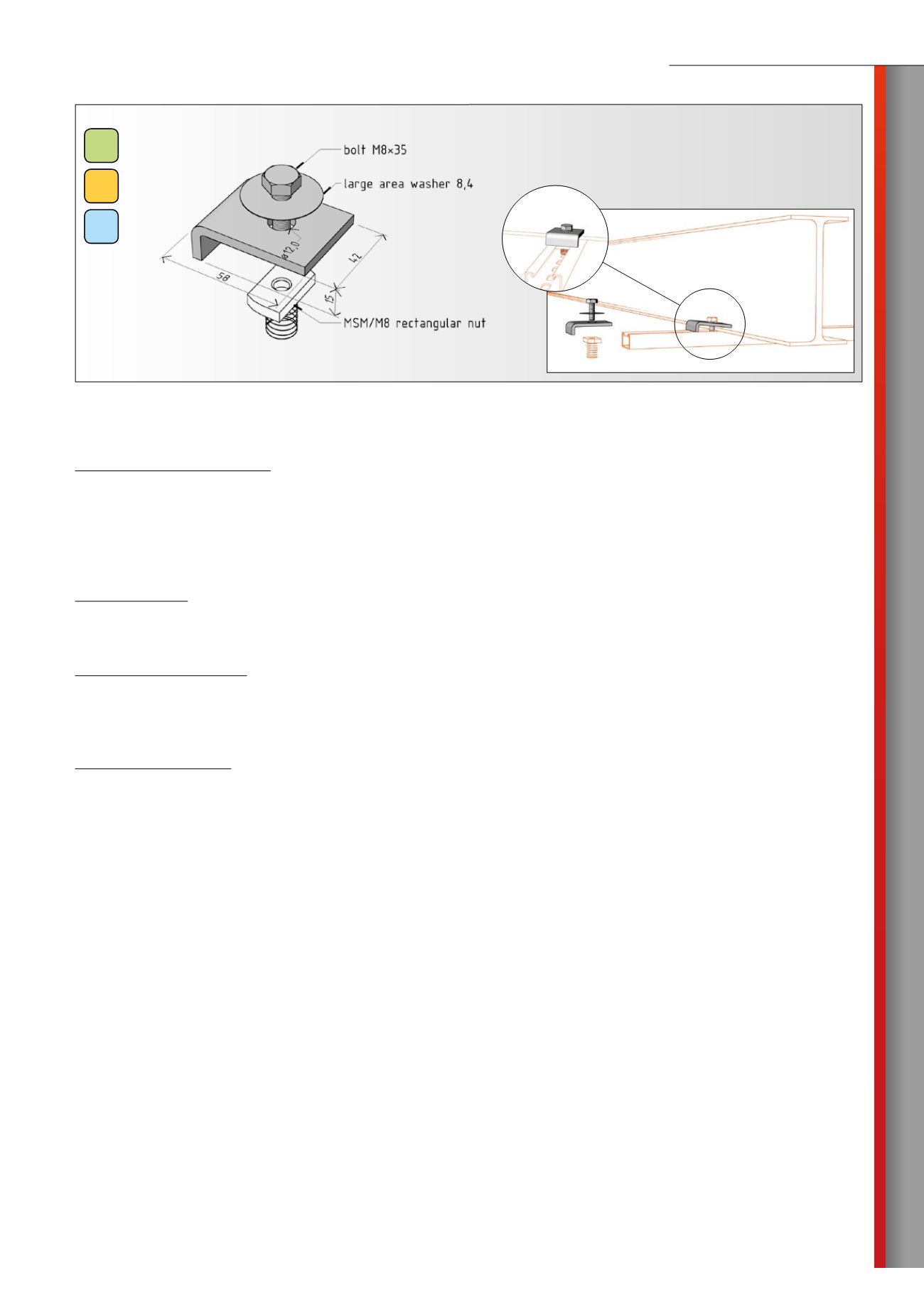

example of assembly

galvanic

zinc

hot

zinc-dipped

stainless

AISI304L

Product:

PIM fixing plate to I profile

Manufacturer:

ARKYS Ltd., Podstranska 1, 627 00 Brno

Technical features:

Material – steel or stainless steel sheet AISI 304 “A2”

Surface finish (finish) – cold galvanized

– hot zinc dipped by dipping

– stainless AISI 304 “A2”

Surface finish of the bolt and washer – cold galvanized and stainless AISI 304.

Use:

The PIM fixing plate for I profiles, combined with rectangular nut MSM/M8, serves for attaching I-profile cantilevers to the struts,

the maximum section of the I-beam being 15 mm.

Specifications:

58x42 mm

Hem height – 15 mm

Sheet thickness – 5 mm

Description:

The Bolt M8x35 and large area washer M8 are included in the package of the PIM fixing plate. The MSM/M8 rectangular nut is not included

in the package.

components shown in the figure are included in the package mimo matice MSM/M8
