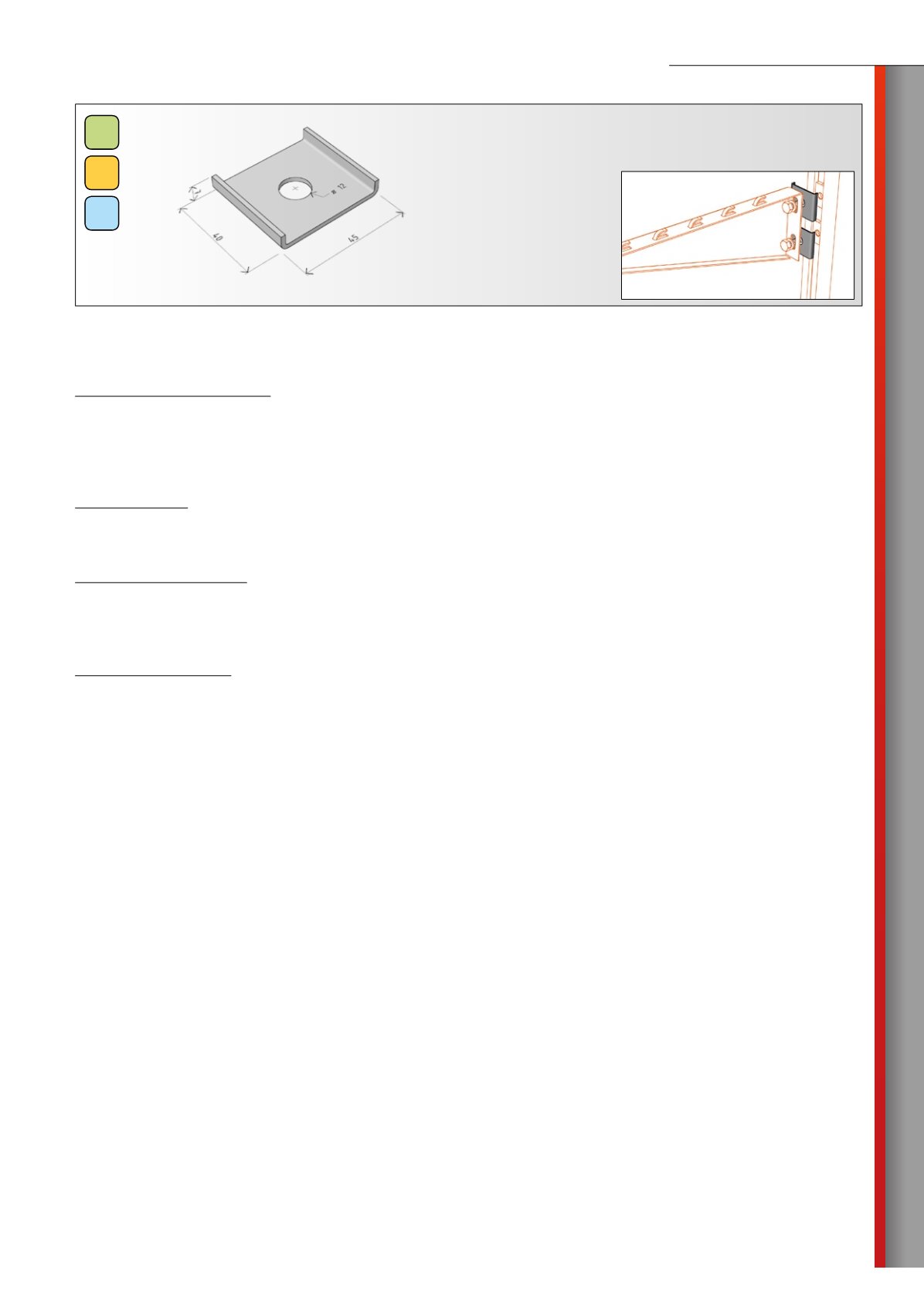

PVM fixing plate
example of assembly
GZ
galvanic
zinc
ZDhot
zinc-dipped
A2
stainless
AISI304L
Product: PVM fixing plate
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Use:
PVM fixing plates serve for centring the NZM cantilevers when anchoring them to the strut.
In NPZM-series cantilevers is not necessary to use it because of robust base of this cantilevers.
Specifications:
45x40 mm
Hem height – 7 mm
Sheet thickness – 2 mm
Description:
The PVM fixing plate has hems, which prevent the expansion of the STNM-series strut after the tightening of the MSM´s bolt. Besides it
also use as NZM-series cantilever´s centering. In the middle od the fixing plate is hole Ø 12 mm for MSM´s bolt.
