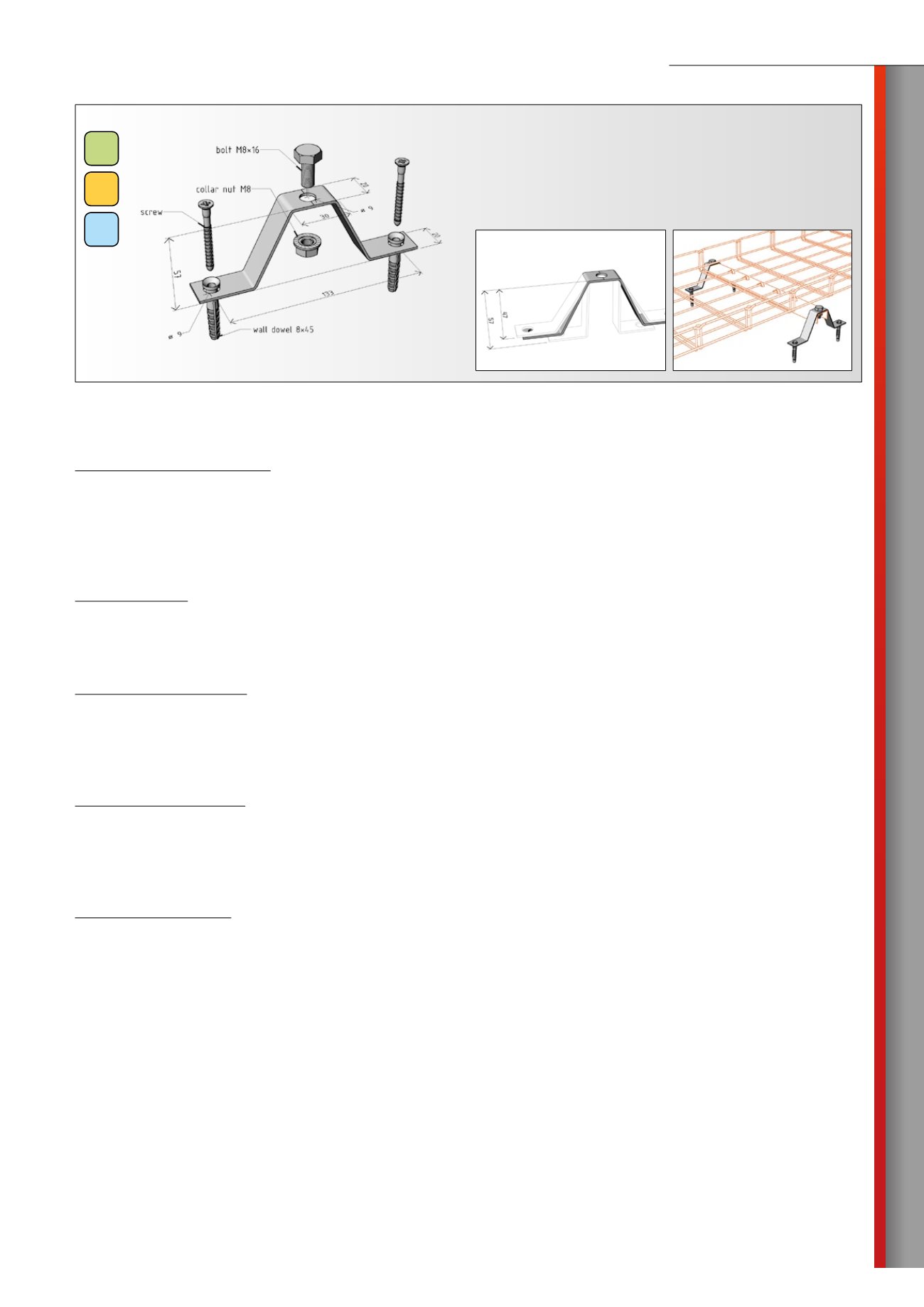

floor holder
example of assembly
components shown in the figure are included in the package
GZ
galvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
Product:
DZM 14 floor holder
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Surface finish of the Collar nuts, bolts and screws – cold galvanized or stainless AISI 304.
Use:
The DZM 14 holder serves in combination with PZM supports for cable track installations in false floors, where is necessary to lift the
cable route over the floor and provide smooth air circulation (cooling of cabling).
The height of the pathwaycan be adjusted to 47 – 57 mm, and namely by widening or narrowing down the achoring holes.
Specifications:
Length – 133 mm (hole spacing for screws)
Height – 20 mm
Width – 47-57 mm
Sheet thickness – 2,0 mm
Load capacity:
60 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique ((use of appropriate anchoring elements according
to actual application).
Description:
The DZM 14 floor holder has an holes from the each side (in the base), which is designed for fixing in the floor by help of the wall dowel
8x45 and screws (is included in the package).
In the upper part of the holder is hole Ø 9,0 mm, which is designed for fixing of the PZM-series support by help of the bolt M8x16 and
collar nuts M8 (for one support are necessary 2 pcs of DZM 14).
