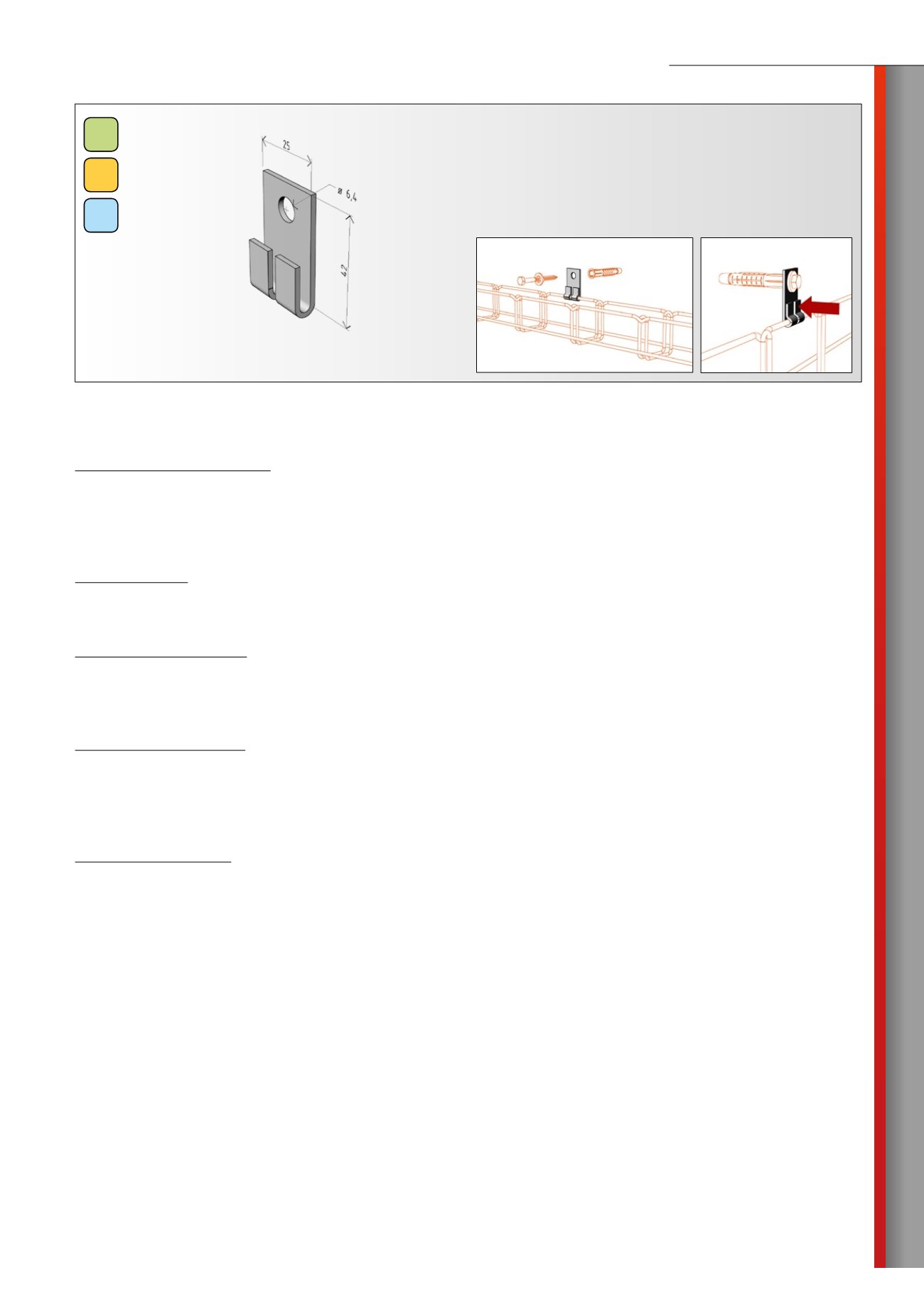

dzm 8 wall holder of mesh tray
example of assembly
GZgalvanic
zinc
ZDhot
zinc-dipped
A2
stainless
AISI304L
Product: DZM 8 wall holder of mesh tray
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Use:
The DZM 8 holder serves for anchoring cable mesh trays directly into the vertical parts of a building.
The maximum recommended width of the mesh tray is 50 and 100 mm, depending upon the mass loading of the mesh tray.
Specifications:
Height – 42 mm
Width – 25 mm
Sheet thickness – 2,0 mm
Load capacity:
40 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique ((use of appropriate anchoring elements according
to actual application).
Description:
This flat holder is provided with bend and tongues on the one side for hooking a cable tray and following locking in the holder by flexion
of tongues. On the other side, the holder is provided with hole Ø 8,4 mm for fixing to the wall by help of suitable anchoring technology (it
depends on type of building material).
