dzm 4 adjustable mesh tray holder

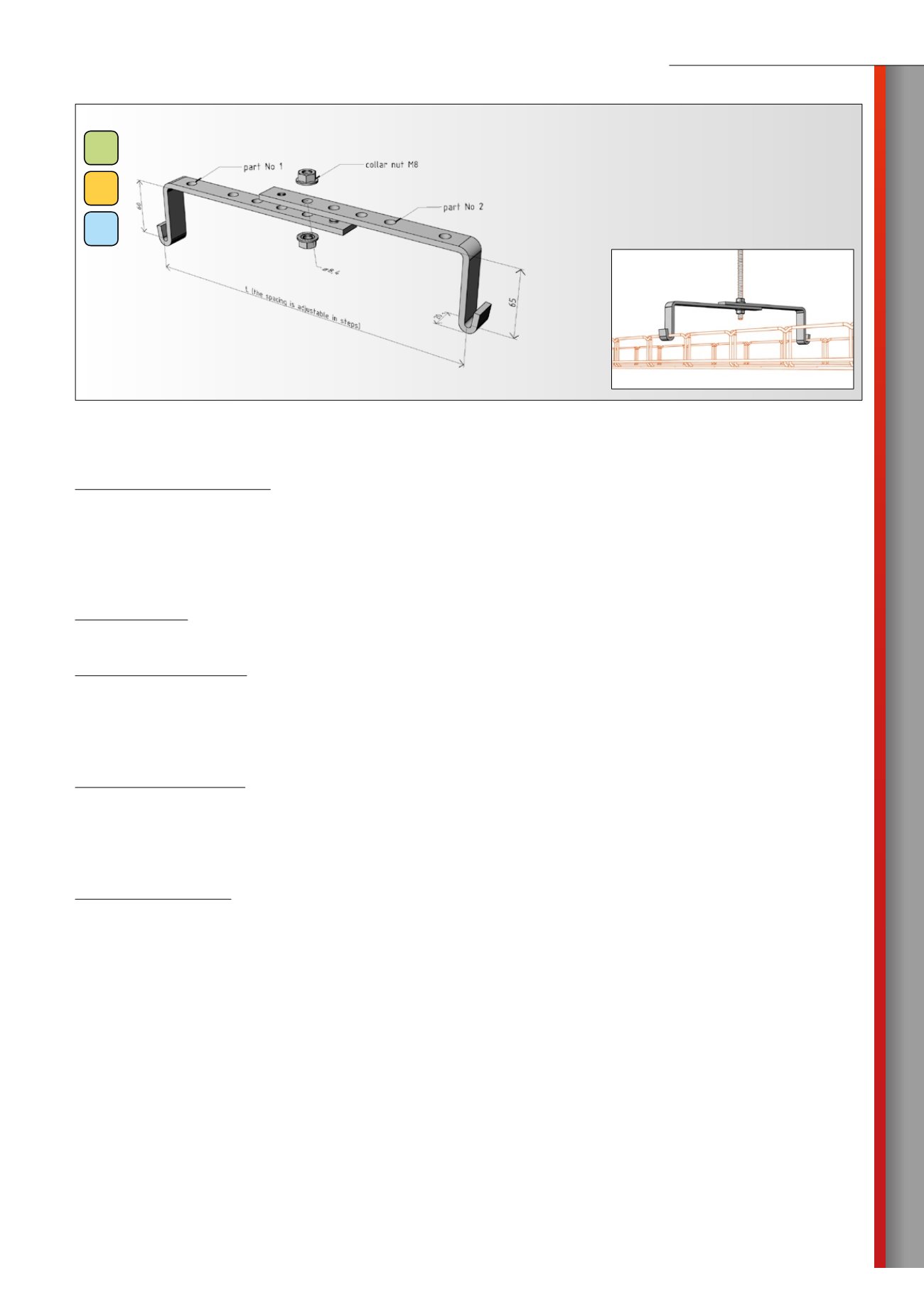

example of assembly
components shown in the figure are included in the package
GZgalvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
Product: DZM 4 adjustable mesh tray holder
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Surface finish of collar nuts – cold galvanized, geomet 500 or stainless AISI 304 “A2.
Use:
The DZM 4 ceiling bracket serves for suspending 200 - 300 mm width mesh trays from M8 threaded rods.
Specifications:
Width – 200, 250 and 300 mm with locking (stepped adjustable)
Height – 65 mm
Depth – 20 mm
Sheet thickness – 5,0 mm
Load capacity:
80 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique (use of appropriate anchoring elements according
to actual application).
Description:
The U-shaped holder with adjustable height is provided with bends for fixing to the mesh tray. In the upper part of the holder is hole
ø 8,4 mm, which is designed for threaded rod M8.
2 pcs collar nuts M8 are included in the package of holder.
