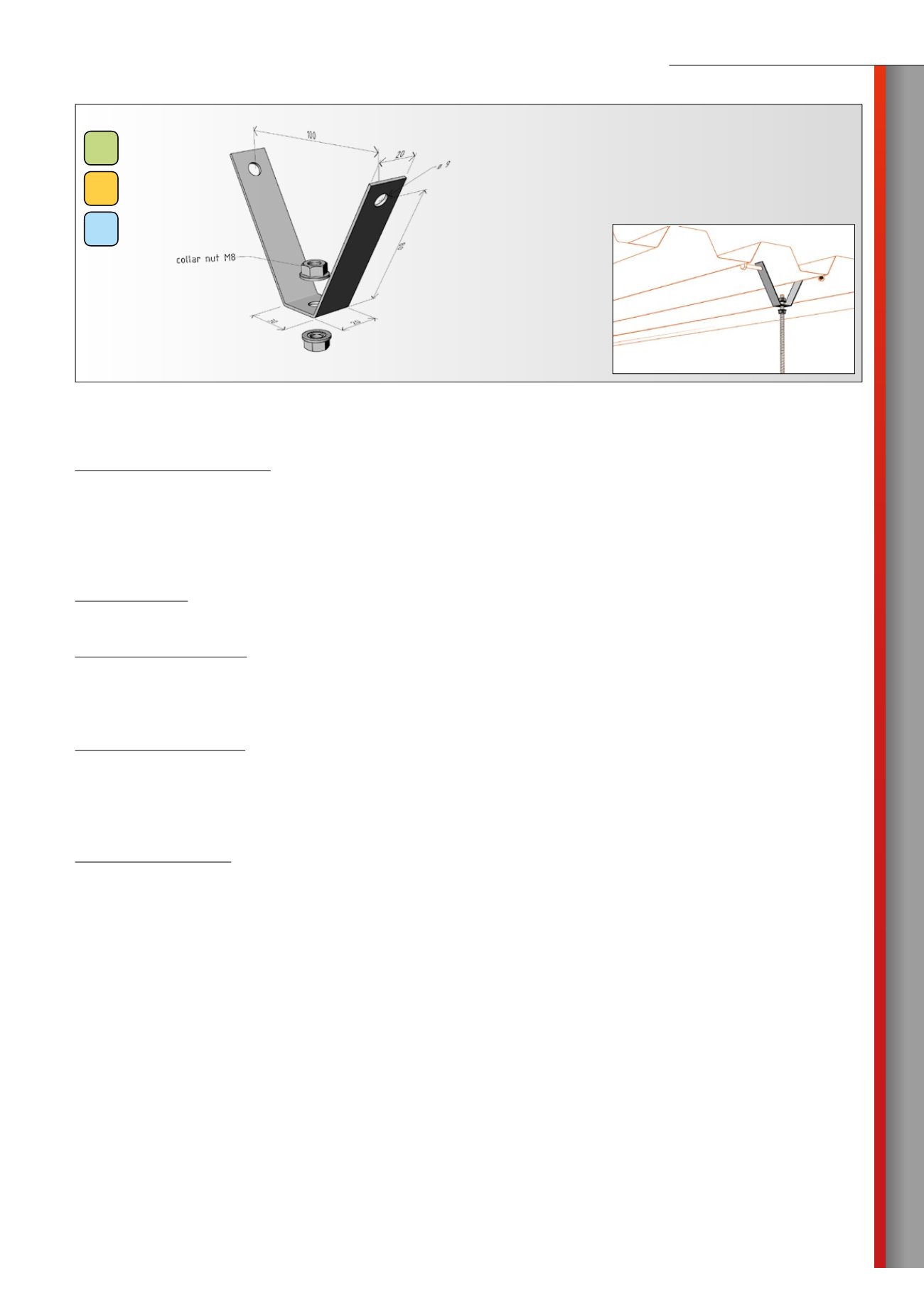

dzm 5 trapezoidal holder of threaded rod
Applied connecting elements:
1x hexagonal head screw M8x100 - 140
1x nut M8
1x washer M8
example of assembly
components shown in the figure are included in the package
GZgalvanic
zinc
ZDhot
zinc-dipped
A2
stainless
AISI304L
Product: DZM 5 trapezoidal holder of threaded rod
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Surface finish of collar nuts – cold galvanized, geomet 500 or stainless AISI 304 “A2.
Use:
The DZM 5 holder serves to anchor M8 threaded rods in roofs and soffits with trapezoidal metal sheet cladding.
Specifications:
Height – 80 mm
Depth – 20 mm
Sheet thickness – 2,0 mm
Load capacity:
100 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique (use of appropriate anchoring elements according
to actual application).
Description:
The V-shaped holder is provided with holes Ø 9,0 mm on the both sides for fixing to the trapezoidal metal sheet by help of bolt, nut and
washers (length of the bolt depends on width waves of trapezoidal metal sheet).
In the bottom is hole Ø 8,4 mm, which is designed for fixing to threaded rod M8.
2 pcs collar nuts M8 for fixing of threaded rod to holder are included in the package of holder.
