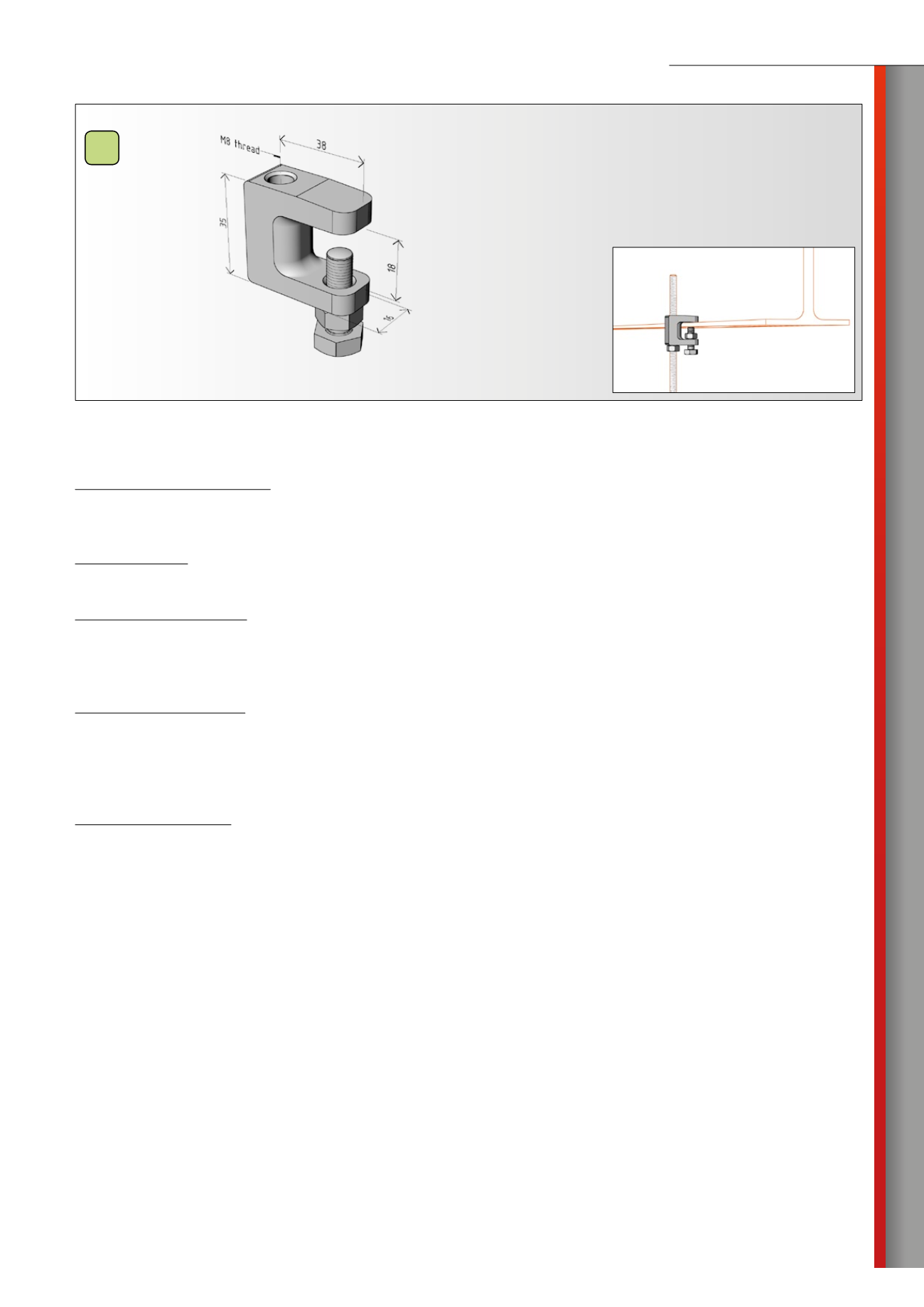

dzm 9 holder of threaded rod
example of assembly
components shown in the figure are included in the package
GZgalvanic
zinc
Product: DZM 9 holder of threaded rod
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – tempered cast-iron galvanized
Surface finish of the bolt and nut – cold galvanized
Use:
The DZM 9 holder serves to anchor M8 threaded rods in spatial assembly by suspension on “I” profile.
Specifications:
Height – 35 mm
Width – 38 mm
Clamping extent– 0-18 mm
Load capacity:
120 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique ((use of appropriate anchoring elements according
to actual application).
Description:
The C-shaped holder is provided with bolt and nut from the one side, which it designed for locking to „I“profile. The main part contains
inner thread M8, which is designed for screwing of the threaded rod to attach another supporting element of MERKUR 2 cable system.
We recommend to secure the threaded rod by nut M8 (it is not included in the package).
