DZM 15 suspension ropes holder
GZgalvanic
zinc
ZDhot
zinc-dipped
A2
stainless
AISI304L

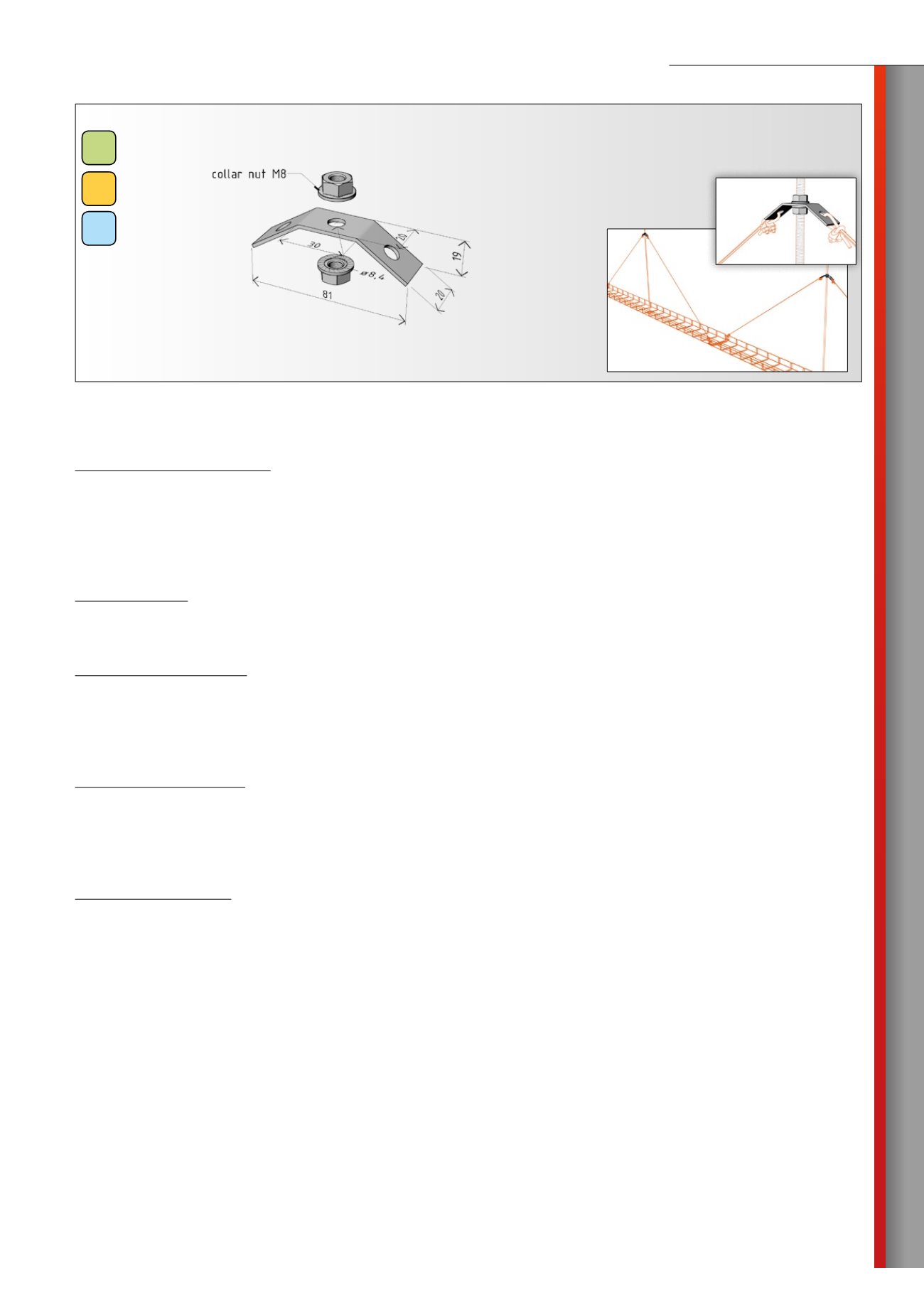

example of assembly
components shown in the figure are included in the package
Product: DZM 15 suspension ropes holder
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Surface finish of the Collar nuts – cold galvanized or stainless AISI 304.
Use:
DZM 15 holder is used for anchoring of suspension rope to threaded rod. It is designed for rope suspension in places where it is necessary
to cross space without possibility of direct anchoring to soffit.
Specifications:
Length – 81 mm
Height – 20 mm
Width - 19 mm
Sheet thickness – 2,0 mm
Load capacity:
150 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique ((use of appropriate anchoring elements according
to actual application).
Description:
The DZM 15 suspension ropes holder has an holes Ø 8,4 mm from the each side for fixing of the steel wires (is not included in the pac-
kage).
In the upper part of the holder is hole Ø 8,4 mm, which is designed for fixing to the threaded rod M8 by help of 2 pcs of collar nuts M8 (is
included in the package).
