arkys@arkys.czdzm STP

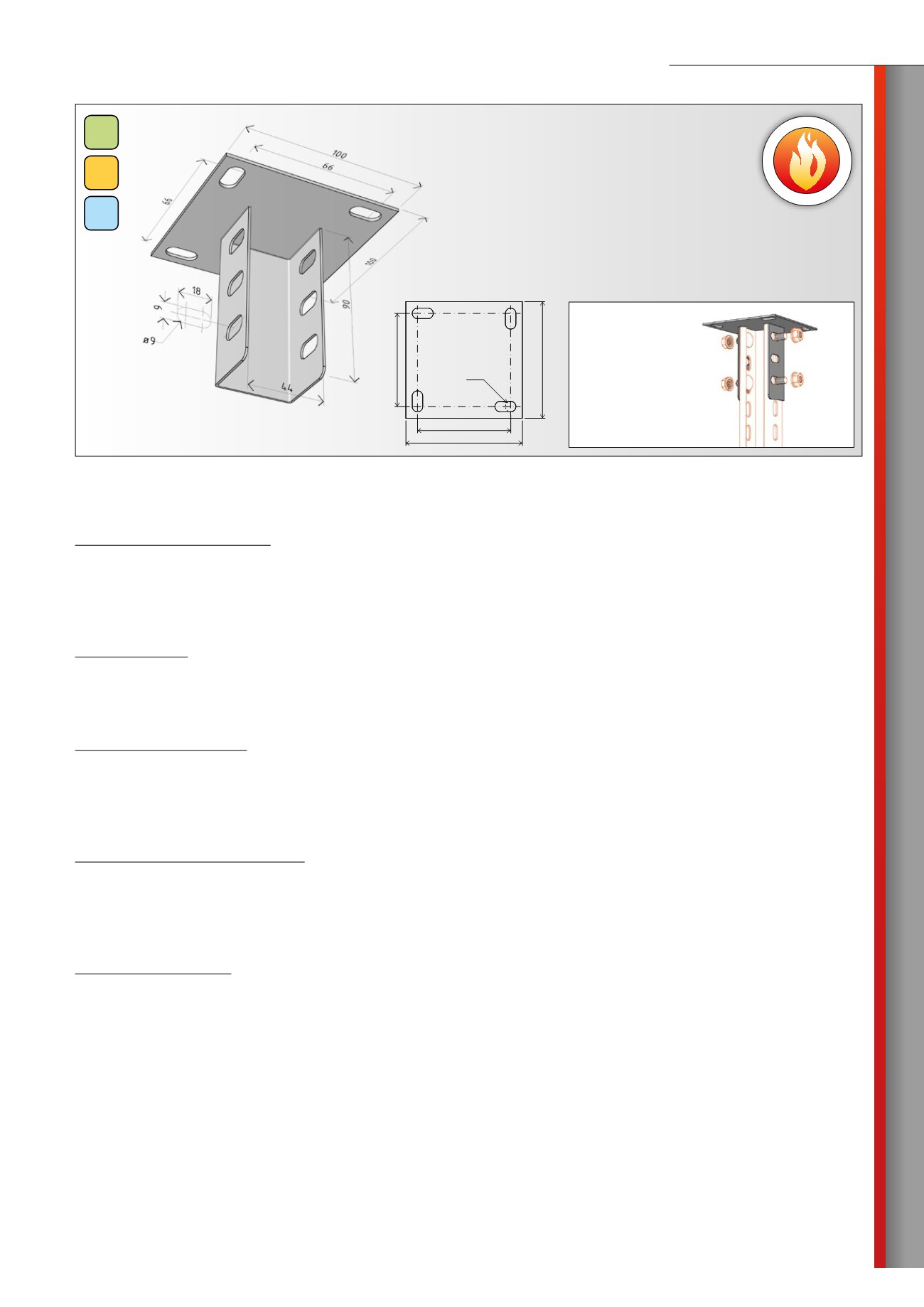

strut holder
100
66
66
100
ø9
example of assembly
Connecting elements:
4x carriage bolt M8x20
4x washer M10
4x nut M8
GZ
galvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
Product:
DZM STP strut holder
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Use:
The DZM STP strut holder serves for anchoring STPM spatial installation struts under the horizontal building structures.
If case be, the holder can be turned by 180° and used as a floor bracket. This combination also may be used as slant anchoring to the
open footrest or as extended boom.
Specifications:
Base width – 100x100 mm
Height – 91,5 mm
Sheet thickness – 1,5 mm
Sizes of oval holes – 18x9 mm
Load capacity in tension:
250 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique ((use of appropriate anchoring elements according
to actual application).
Description:
The DZM STPU angular strut holder has a square base, where are the holes for anchoring of the building foundations help of bolts M8.
To this base is welded the element with oval holes, which are using 4 pcs carriage bolts M8x20, 4 pcs washers M10 and 4 pcs nuts M8 for
fixing of STPM-series struts.
The nuts, washers and bolts are not included in the package of the DZM STP strut holder.
F
i
r
e
r
e
s
i
s
t
a
n
c
e
t
e
s
t
e
d
product sheet
