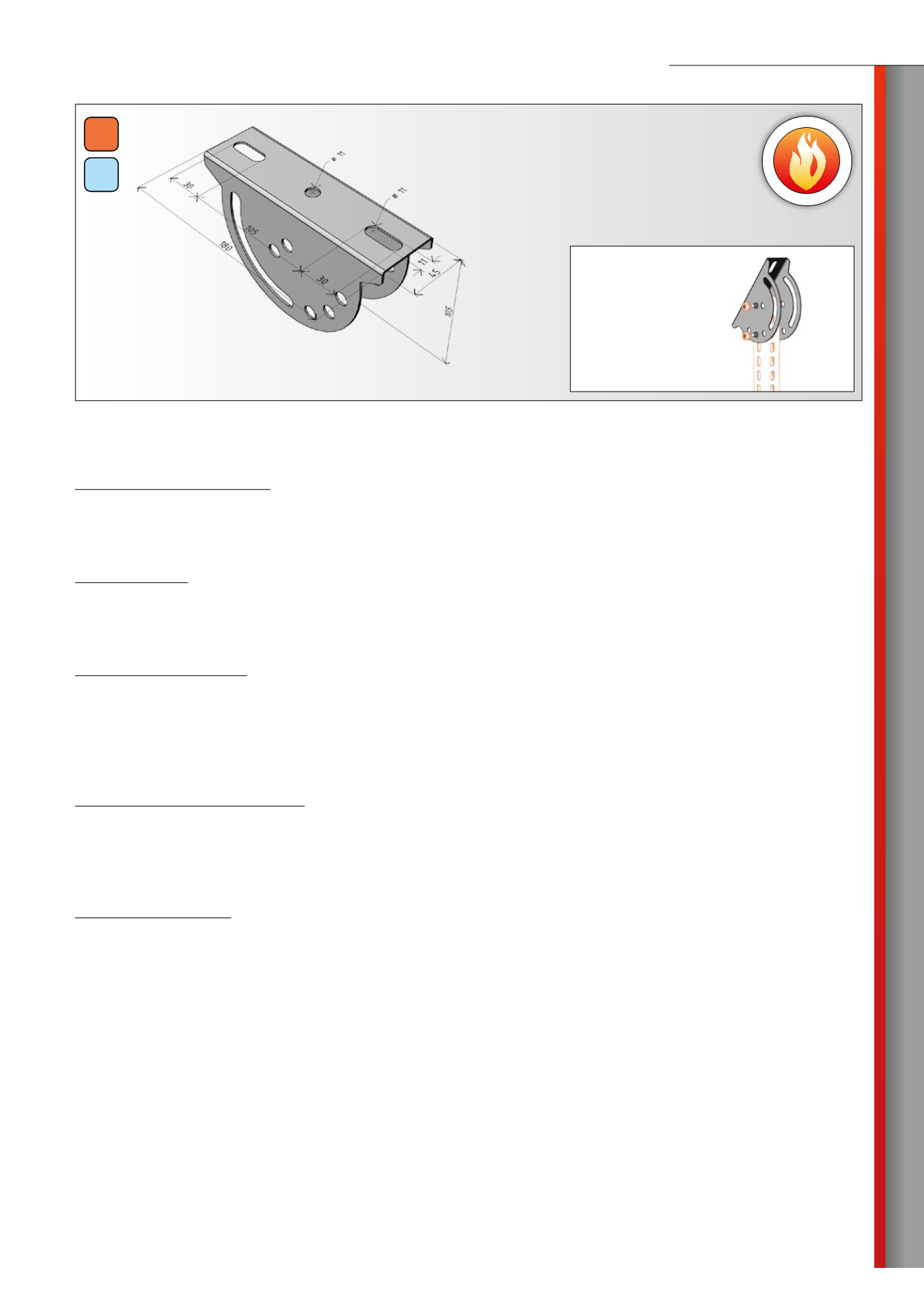

dzm STPU angular strut holder
Connecting elements:
4x carriage bolt M8x20
4x washer M10
4x nut M8
example of assembly
SZ
sendzimirový
zinek
A2stainless
AISI304L
Product: DZM STPU angular strut holder
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – sendzimir zinc coated
– stainless AISI 304 “A2”
Use:
DZM STPU holder is used for anchoring STPM struts of spatial mounting under horizontal constructions. If case be, the holder can be
turned by 180° and used as a floor bracket. It also allows compensate an angular difference between slant and horizontal plane. This
combination also may be used as slant anchoring to the open footrest or as extended boom.
Specifications:
Base – 180x45 mm
Height – 114 mm
Sheet thickness – 2,0 mm
Side holes - Ø 10,5 mm
Arched hole – 30x10,5 mm
Load capacity in tension:
150 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique ((use of appropriate anchoring elements according
to actual application).
Description:
The DZM STPU angular strut holder has a rectangular base, where are the holes for anchoring of the building foundations help of bolts M8.
Semicircular sides has a several holes including long cut it used for fixing of STPM-series struts in different positions for compesation of
angular difference between slant and horizontal plane.
The STPM-series strut is fixed to the angular strut holder using of 4 pcs carriage bolts M8x20, 4 pcs washers M10 and 4 pcs nuts M8.
The nuts, washers and bolts are not included in the package of the DZM STPU andular strut holder.
Fireresistance tested
product sheet
