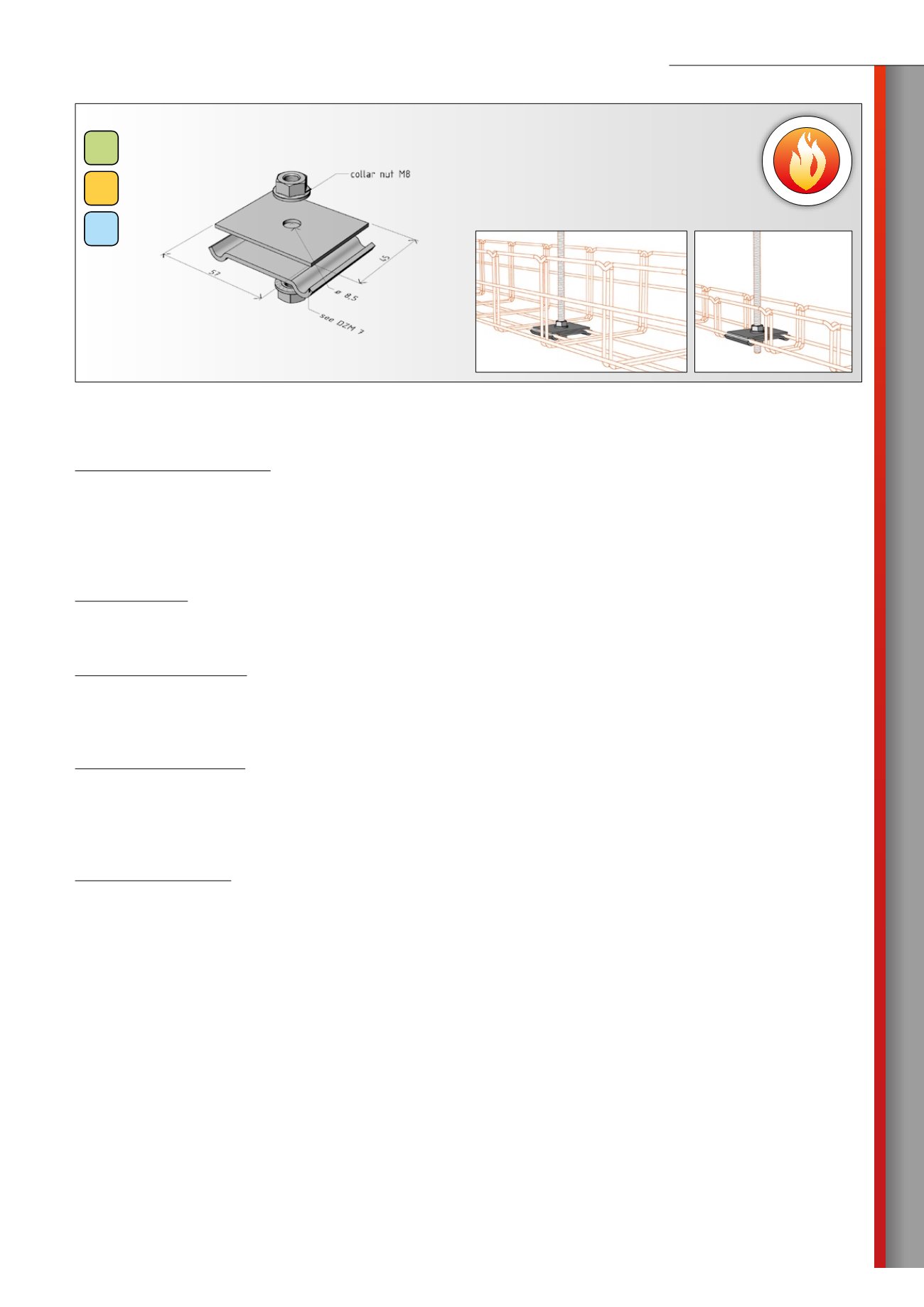

holder of mesh tray
example of assembly
components shown in the figure are included in the package
GZ
galvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
Product:
DZM 13 holder of mesh tray
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Surface finish of the Collar nuts,– cold galvanized, geomet 500 or stainless AISI 304
Use:
The DZM 13 holder is used for cable mesh trays on M8 threaded rods.
This installation is suitable for mesh trays M2 50/50, M2 150/50 and M2 150/100 only.
Specifications:
Length – 57 mm
Height – 45 mm
Sheet thickness – 2,0 mm
Load capacity:
50 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique ((use of appropriate anchoring elements according
to actual application).
Description:
The DZM 13 holder of mesh tray is composed of two thrust sheet parts, while bottom part has the bends, which are designed for the
exact placement on the tray´s wires. Together with the upper part it is designed for the locking of the cable trays by help of 2pcs collar
nuts. In the middle has both parts of holder a hole Ø 8,5 mm, which is designed for fixing to the threaded rod M8.
F
i
r
e
r
e
s
i
s
t
a
n
c
e
t
e
s
t
e
d
product sheet
