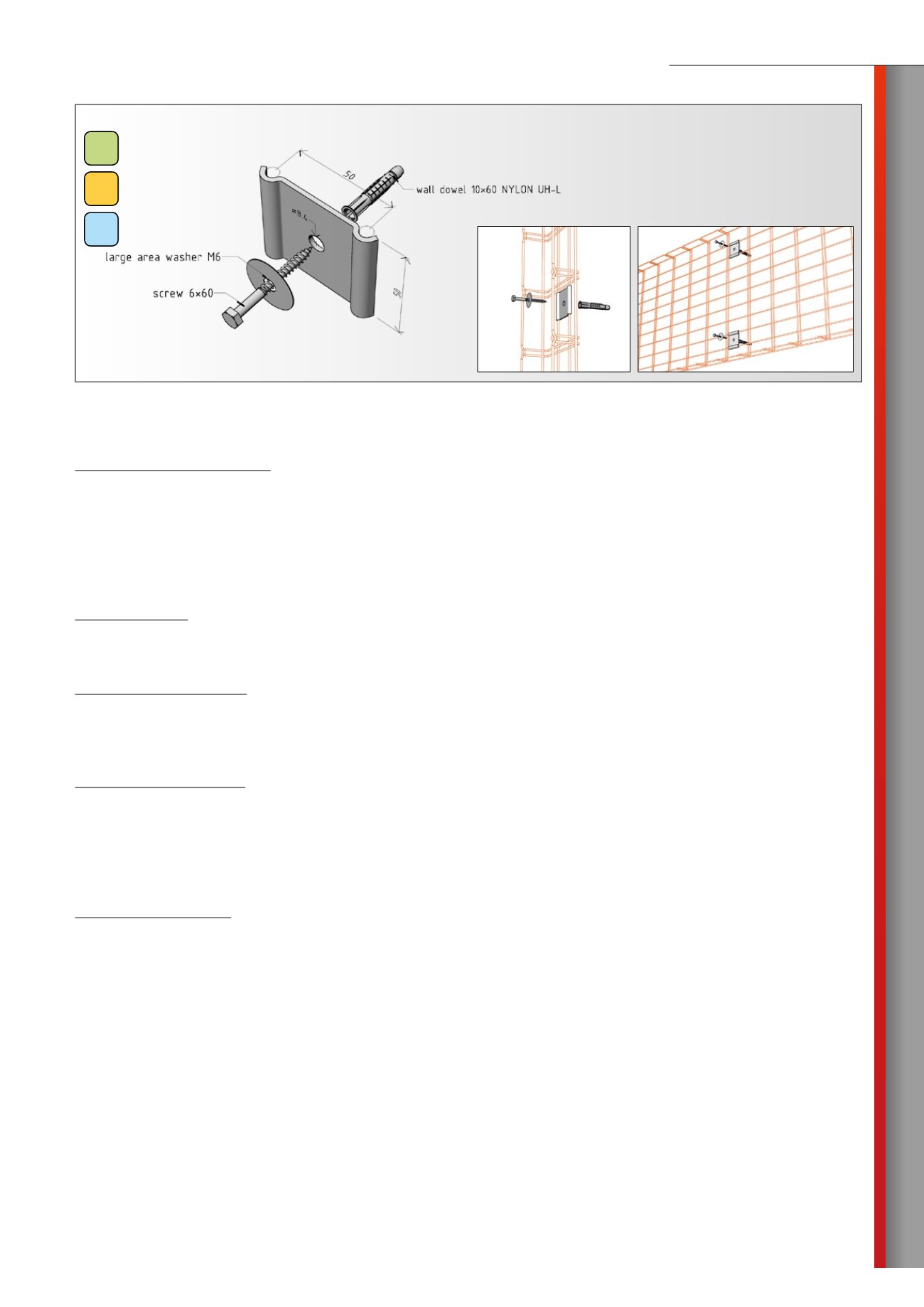

dzm 7 ascending holder
example of assembly
components shown in the figure are included in the package
GZgalvanic
zinc
ZDhot
zinc-dipped
A2
stainless
AISI304L
Product: DZM 7 ascending holder
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Surface finish of screw 6x60 – cold galvanized or stainless AISI 304 “A2.
Surface finish of large area washer M6 - cold galvanized or stainless AISI 304 “A2.
Use:
The DZM 7 holder serves to anchor cable mesh trays in horizontal and vertical routes upon the walls. The holder is designed for fixing only
on the bottom of the cable tray. It is not designed for trays of width 100 mm.
Specifications:
Height – 50 mm
Width – 50 mm
Sheet thickness – 2,5 mm
Load capacity:
In tension (ceiling mounting) 100 kg
In shear (wall/footrest mounting) 100 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique (use of appropriate anchoring elements according
to actual application).
Description:
The DZM 7 is provided with bends, which are designed for the exact placement on the tray´s wires.
In the middle is one hole Ø 8,4 mm, which is designed for fixing for ceiling or wall mounting by help of the screw.
1 pc screw 6x60, 1 pc large area washer M6 and 1 pc wall dowel NYLON UH-L are included in the package of holder.
