dzm 3/100 mesh tray holder

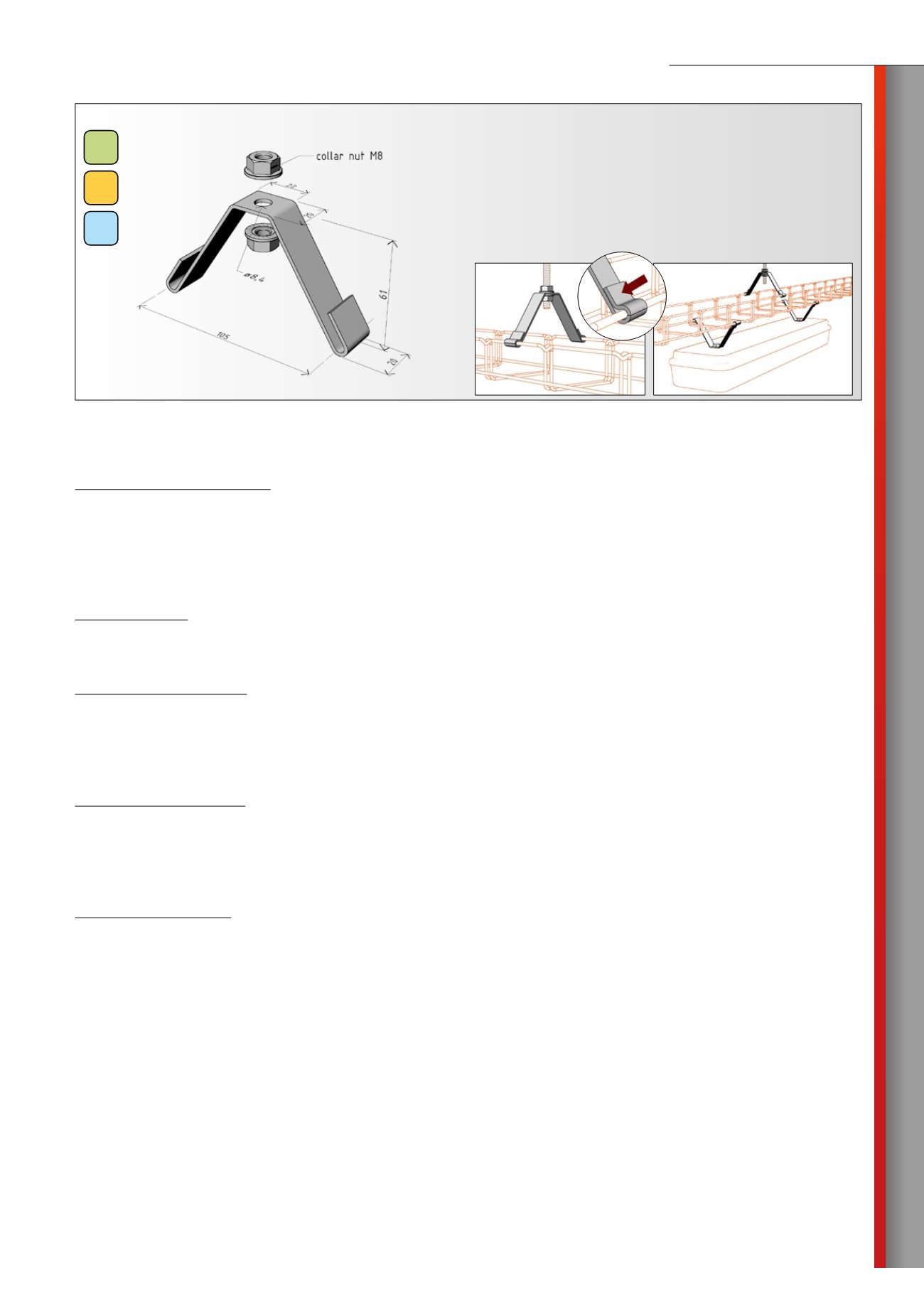

example of assembly
components shown in the figure are included in the package
GZgalvaniczinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
Product: DZM 3/100 mesh tray holder
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Surface finish of collar nuts – cold galvanized, geomet 500 or stainless AISI 304 “A2
Use:
The DZM 3/100 ceiling bracket serves for suspending 100 mm mesh trays from M8 threaded rods.
It can also serve as a bearing element for the installation of various types of light fittings.
Specifications:
Width – 105 mm
Height – 61 mm
Depth – 20 mm
Sheet thickness – 2,0 mm
Load capacity:
50 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique (use of appropriate anchoring elements according
to actual application).
Description:
The V-shaped holder is provided with folds on the both sides for fixing to the cable tray (the fixation is done by pressing). In the upper
part of the holder is hole Ø 8,4 mm, which is designed for threaded rod M8.
2 pcs collar nuts M8 are included in the package of holder.
