SVZM 1

grounding connector

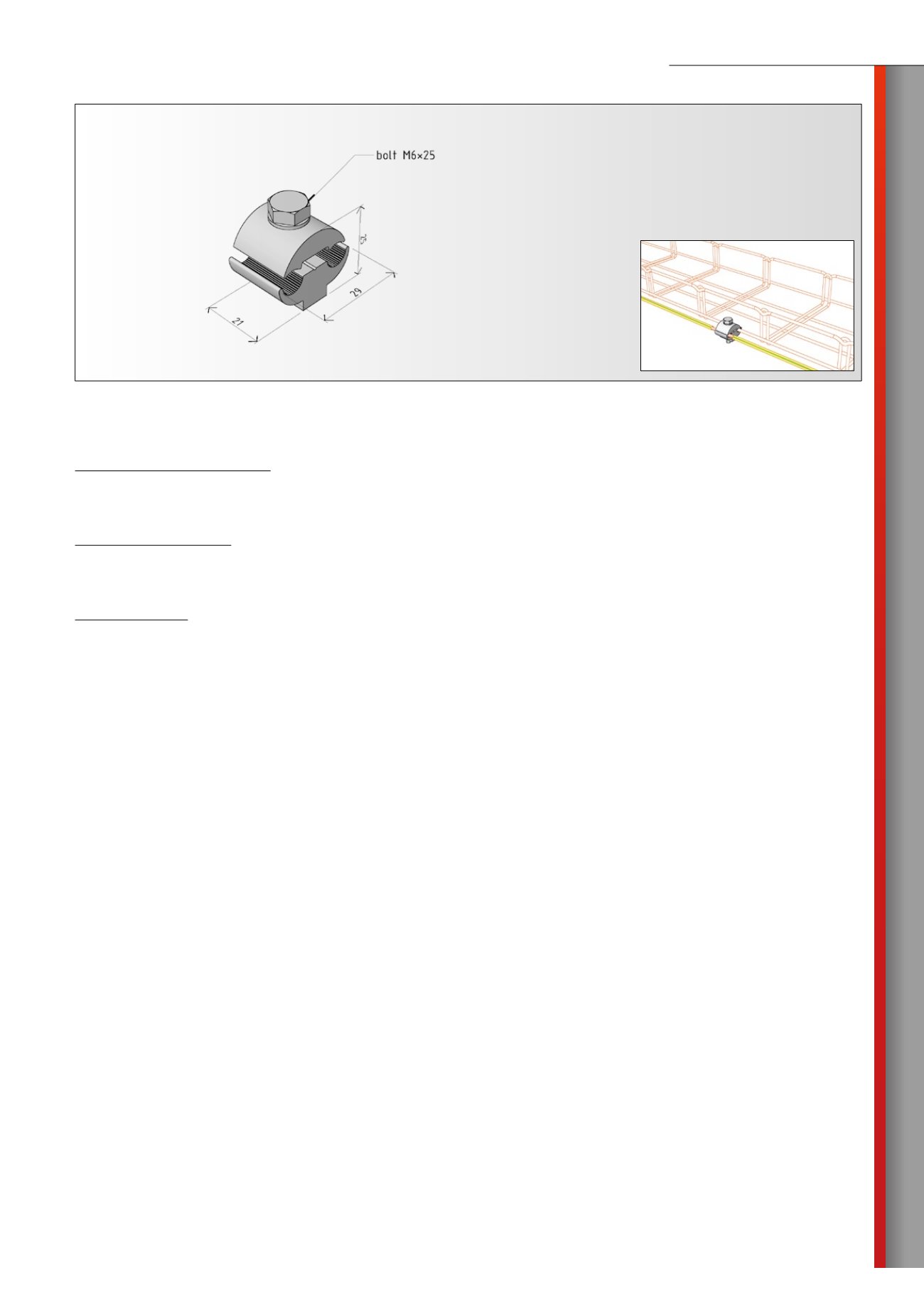

example of assembly

components shown in the figure are included in the package

Product:

SVZM 1 grounding connector for MERKUR 2 wire mesh cable trays

Manufacturer:

ARKYS Ltd., Podstranska 1, 627 00 Brno

Technical features:

Material - brass

Surface finish of the bolt and nut – cold galvanized or stainless steel AISI 304m „A2“

Description:

The connector SVZM 2 consists of two opposite brass parts (internal thread in the bottom) and the bolt 6x16 with washer M6.

The diameter of the clamp for the conductor is up to 25 mm

Use:

In case of request to ground a cable route (inclusion to equipotential ground network), the connector should be installed every 5-10 met-

res to cable tray. It also serves for fixing of the ground wire.

The cross-section is determined by planner or realization company.

product sheet
