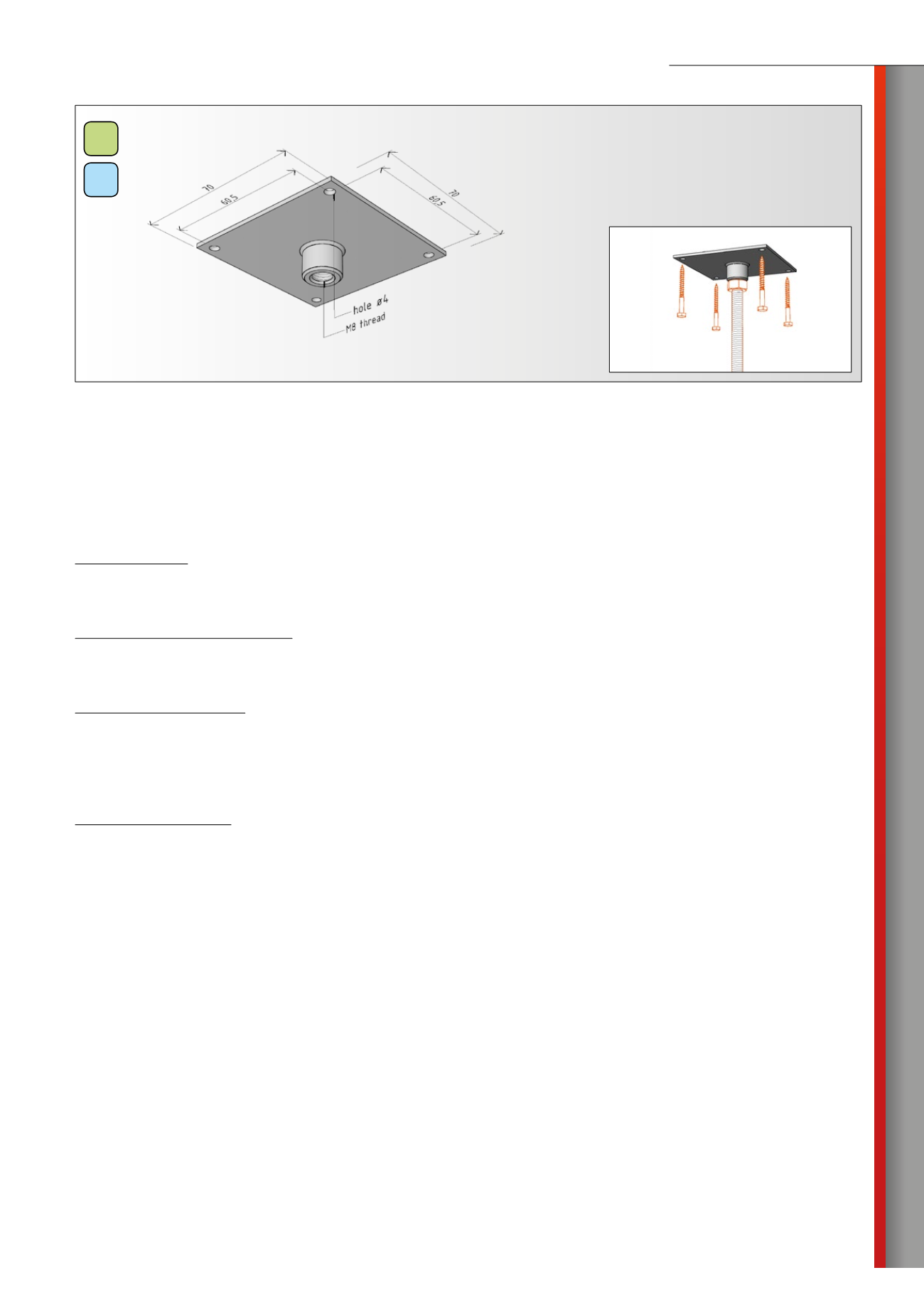

dzm 2 holder of threaded rod
example of assembly
GZgalvanic
zinc
A2
stainless
AISI304L
Product: DZM 2 holdef of threaded rod
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– stainless AISI 304 “A2”
Use:
The DZM 2 holder serves for spatial assemblies, anchoring threaded rods M8 to the ceiling (wooden, hourdis, etc.,), or under any horizon-
tal part of a building where metal dowels into concrete cannot be used.
Specifications of base:
Outside – 70x70 mm
Sheet thickness – 2,0 mm
Load capacity:
5 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique (use of appropriate anchoring elements according
to actual application).
Description:
The holder is designed of a square base, which is provided with 4 fixing holes Ø 4 mm for the bolts and with the element, which is provided
with the internal thread M8, which is designed for screwing/fixing of the threaded rod.
