SUM 1

grounding connector

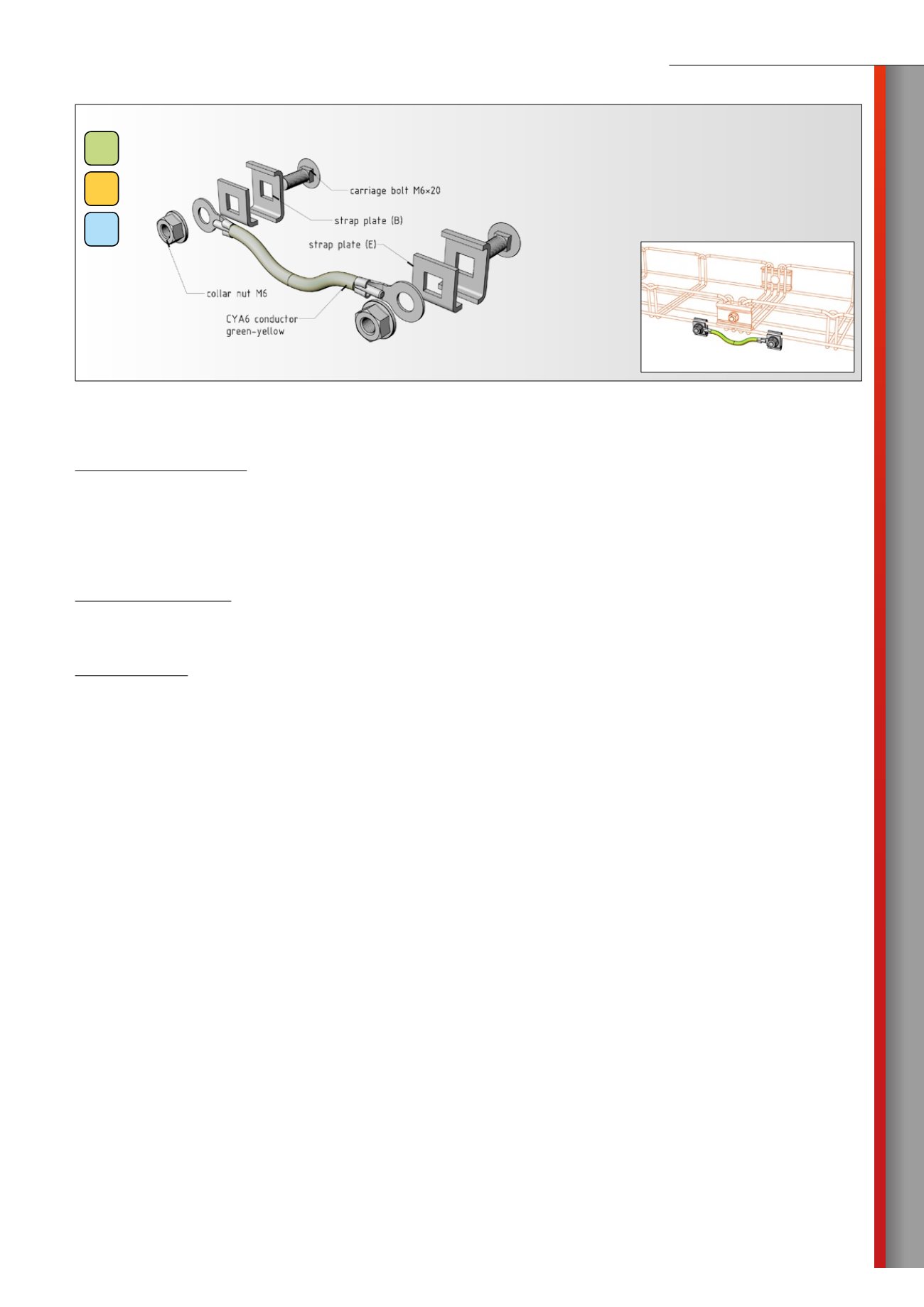

example of assembly

components shown in the figure are included in the package

galvanic

zinc

hot

zinc-dipped

stainless

AISI304L

Product:

SUM 1 grounding connector for MERKUR 2 wire mesh cable trays

Manufacturer:

ARKYS Ltd., Podstranska 1, 627 00 Brno

Specifications:

Material of strap plates (B) and (E) – steel or stainless steel sheet AISI 304 “A2”

Surface finish (finish) of strap plates (B) and (E) – cold galvanized

- hot zinc dipped by dipping

- stainless AISI 304 “A2”

Surface finish of the carriage bolt and collar nut – cold galvanized, geomet 500 or stainless steel AISI 304m „A2“.

Description:

Connector set consists of conductor CYA 6 zž (lenghth 200 mm), 2x strap plates ( B ), 2x additional liners ( E ), 2 pcs of carriage

bolts M6x20 and 2 pcs of nuts M6.

Use:

The connector SUM 1 serves for supplementary conductive connections between the mesh trays when implementing cable tracks

in environments with high corrosion aggressiveness.
