SVM 1

cover joint

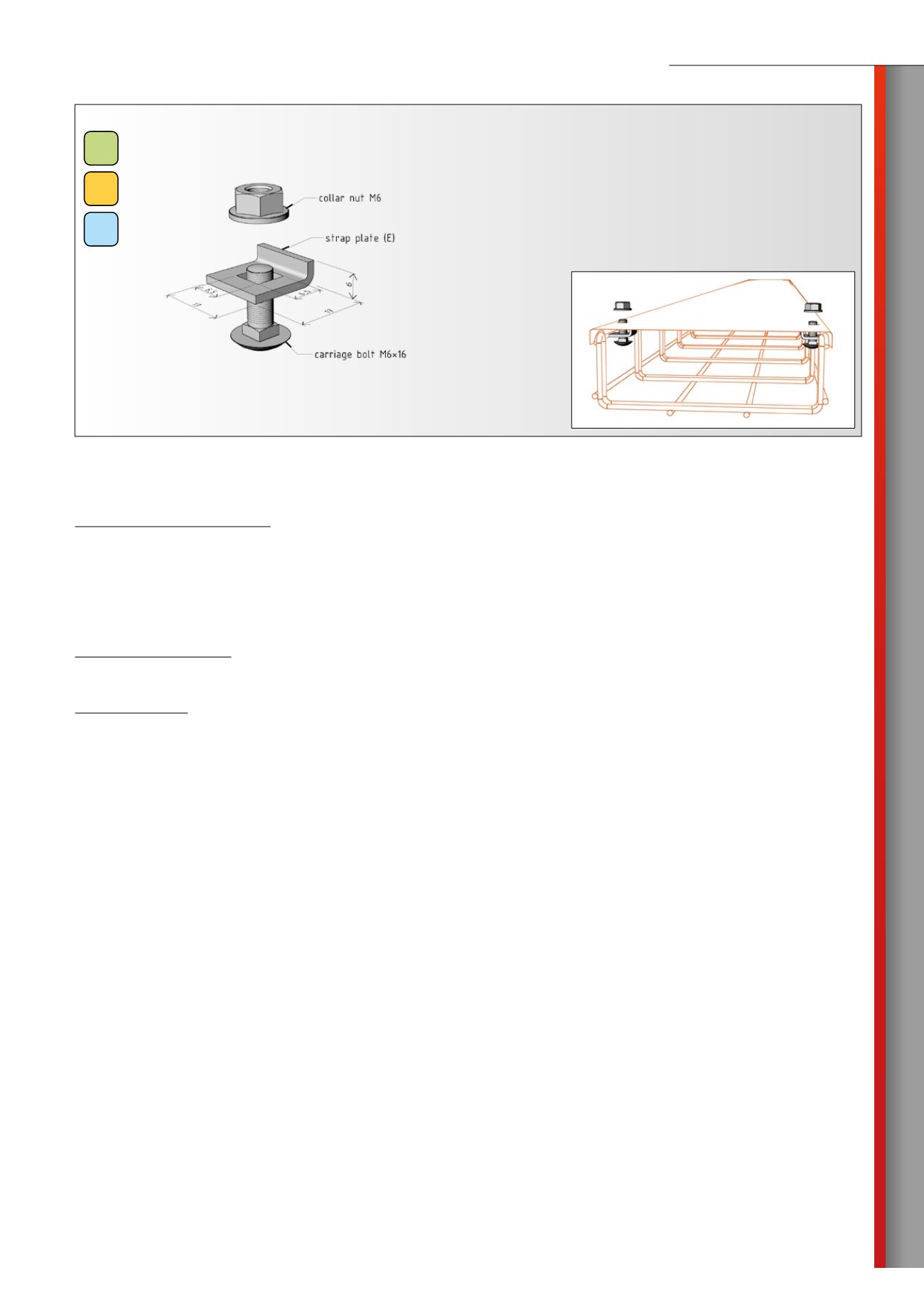

components shown in the figure are included in the package

example of assembly

galvanic

zinc

hot

zinc-dipped

stainless

AISI304L

Product:

SVM 1 cover joint for MERKUR 2 wire mesh cable trays

Manufacturer:

ARKYS Ltd., Podstranska 1, 627 00 Brno

Technical features:

Material of strap plate (E) – steel or stainless steel sheet AISI 304 “A2”

Surface finish (finish) of strap plate (E) – cold galvanized

- hot zinc dipped by dipping

- stainless AISI 304 “A2”

Surface finish of the carriage bolt and collar nut – cold galvanized, geomet 500 or stainless steel AISI 304m „A2“.

Description:

The joint set consists of a liner with border (E), a carriage bolt M6x16 and a collar nut M6.

Use:

The joint SVM 1 serves for fastening the mesh tray covers VZM 50 – 500.
