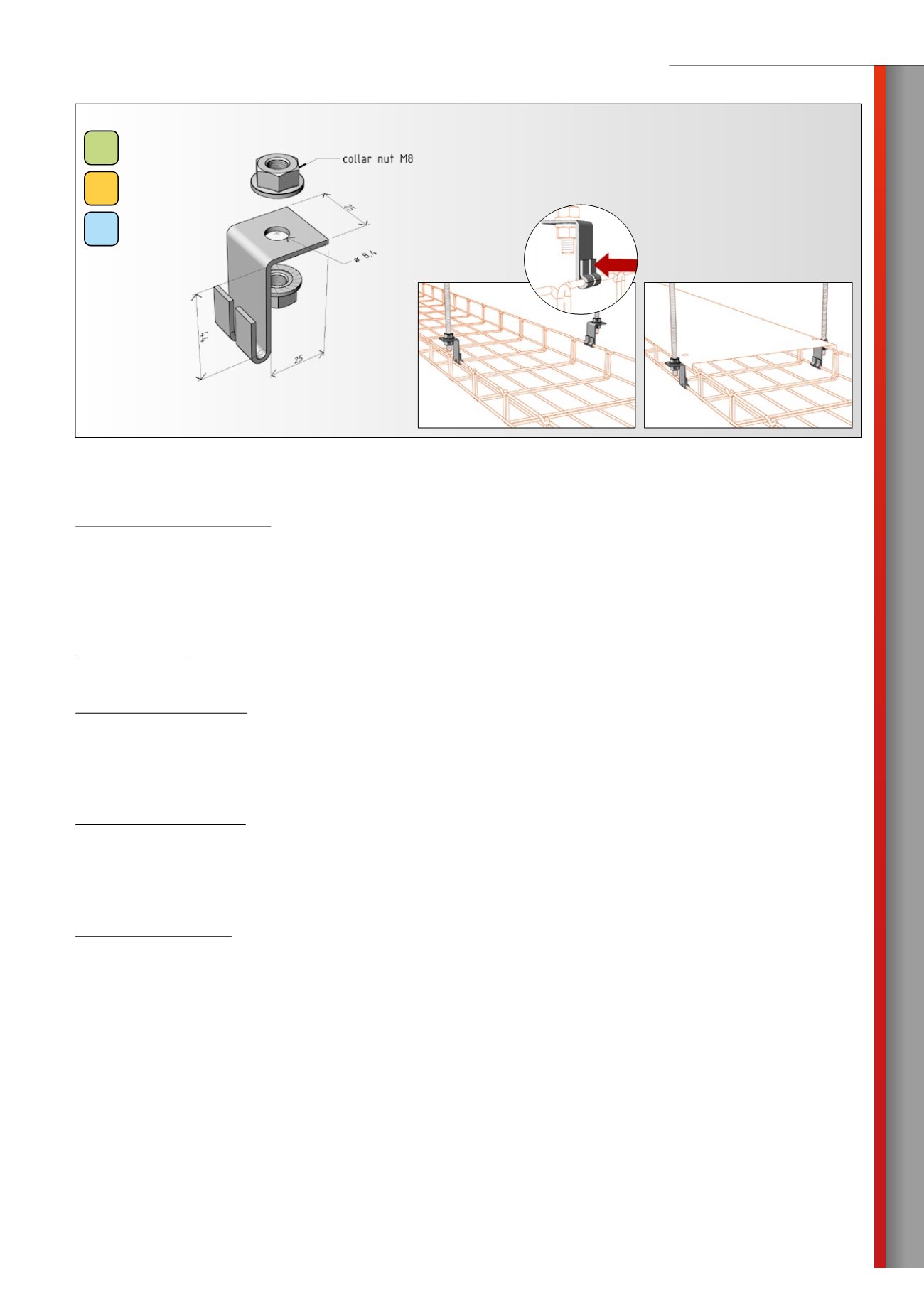

dzm 6 mesh tray holder
example of assembly
components shown in the figure are included in the package
example of holder fixing for
a mesh tray provided with a cover
GZgalvanic
zinc
ZDhot
zinc-dipped
A2
stainless
AISI304L
Product: DZM 6 mesh tray holder
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Surface finish of collar nuts – cold galvanized, geomet 500 or stainless AISI 304 “A2.
Use:
The DZM 6 holder is used in pairs to suspend cable mesh trays upon M8 threaded rods.
Specifications:
Height – 44 mm
Width – 25 mm
Depth – 25 mm
Sheet thickness – 2,5 mm
Load capacity:
40 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique ((use of appropriate anchoring elements according
to actual application).
Description:
The L-shaped holder is provided with bend and tongues on the one side for hooking a cable tray and following locking in the holder by
flexion of tongues. On the other side, the holder is provided with hole Ø 8,4 mm for fixing/suspension to the threaded rod M8.
2 pcs collar nuts M8 for fixing of threaded rod to holder are included in the package of holder.
