arkys@arkys.czlateral holder of mesh tray
dzm 12
example of assembly
GZ
galvanic
zinc
ZD
hot
zinc-dipped
A2
stainless
AISI304L
Product: D

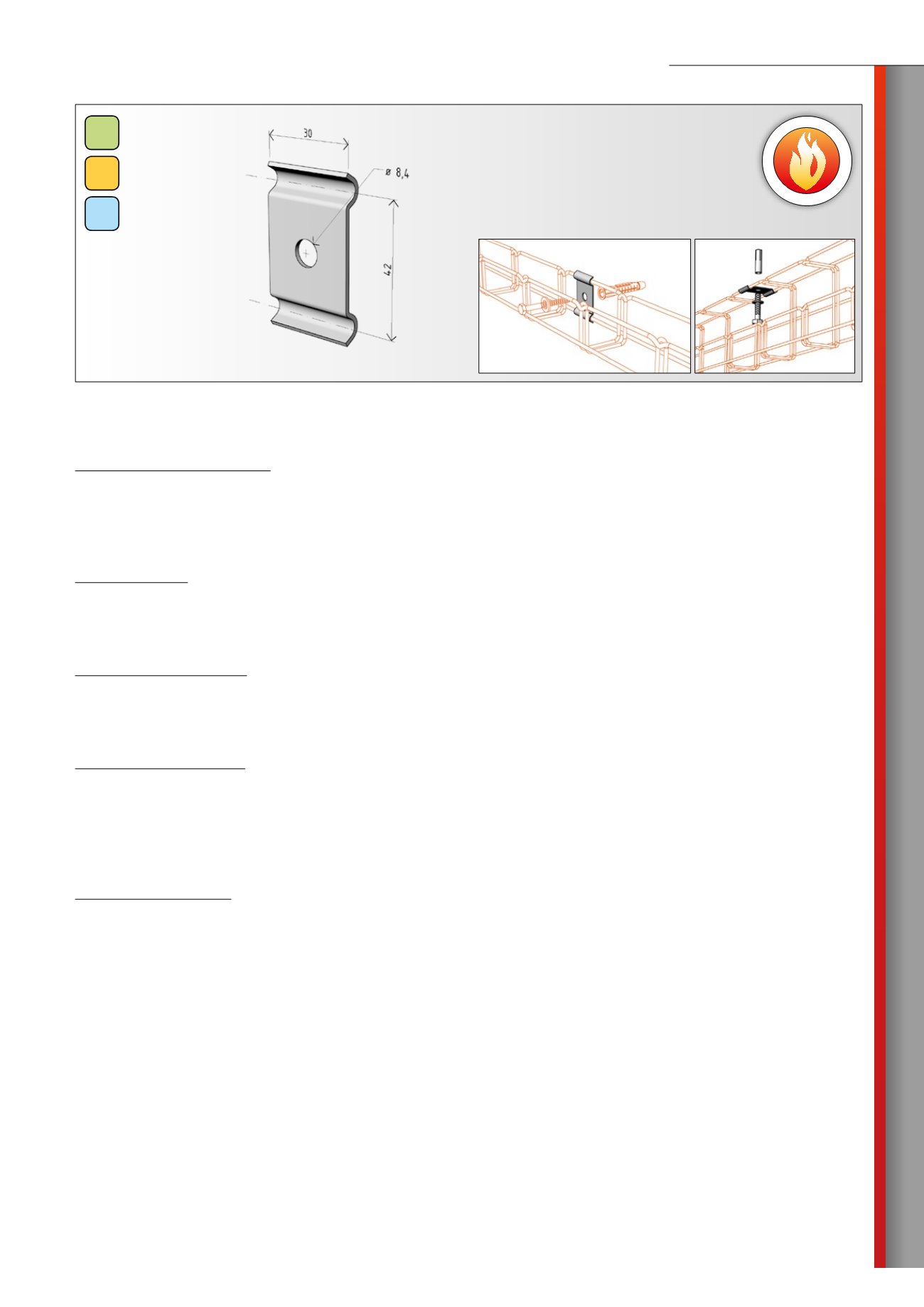

ZM 12 lateral holder of mesh tray
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel or stainless steel sheet AISI 304 “A2”
Surface finish (finish) – cold galvanized
– hot zinc dipped by dipping
– stainless AISI 304 “A2”
Use:
The DZM 12 lateral holder serves for anchoring cable mesh trays of smaller dimensions directly in vertical parts of the construction.
The maximum recommended width of the mesh tray is 100 mm, depending on the mass load of the mesh tray.
Holder DZM 12 is also suitable as anchoring element for cable trays M2 of the „G“ type.
Specifications:
Height – 42 mm
Width – 30 mm
Sheet thickness – 2,0 mm
Load capacity:
In tension (ceiling mounting) 100 kg
In shear (wall/footrest mounting) 100 kg
Note: The declared load capacity depends on the professional assembly and correct anchor technique ((use of appropriate anchoring elements according
to actual application).
Description:
The DZM 12 lateral holder of mesh tray is provided with bends, which are designed for the exact placement on the tray´s wires.
In the middle is one hole Ø 8,4 mm, which is designed for fixing for ceiling or wall mounting by help of the screw.
