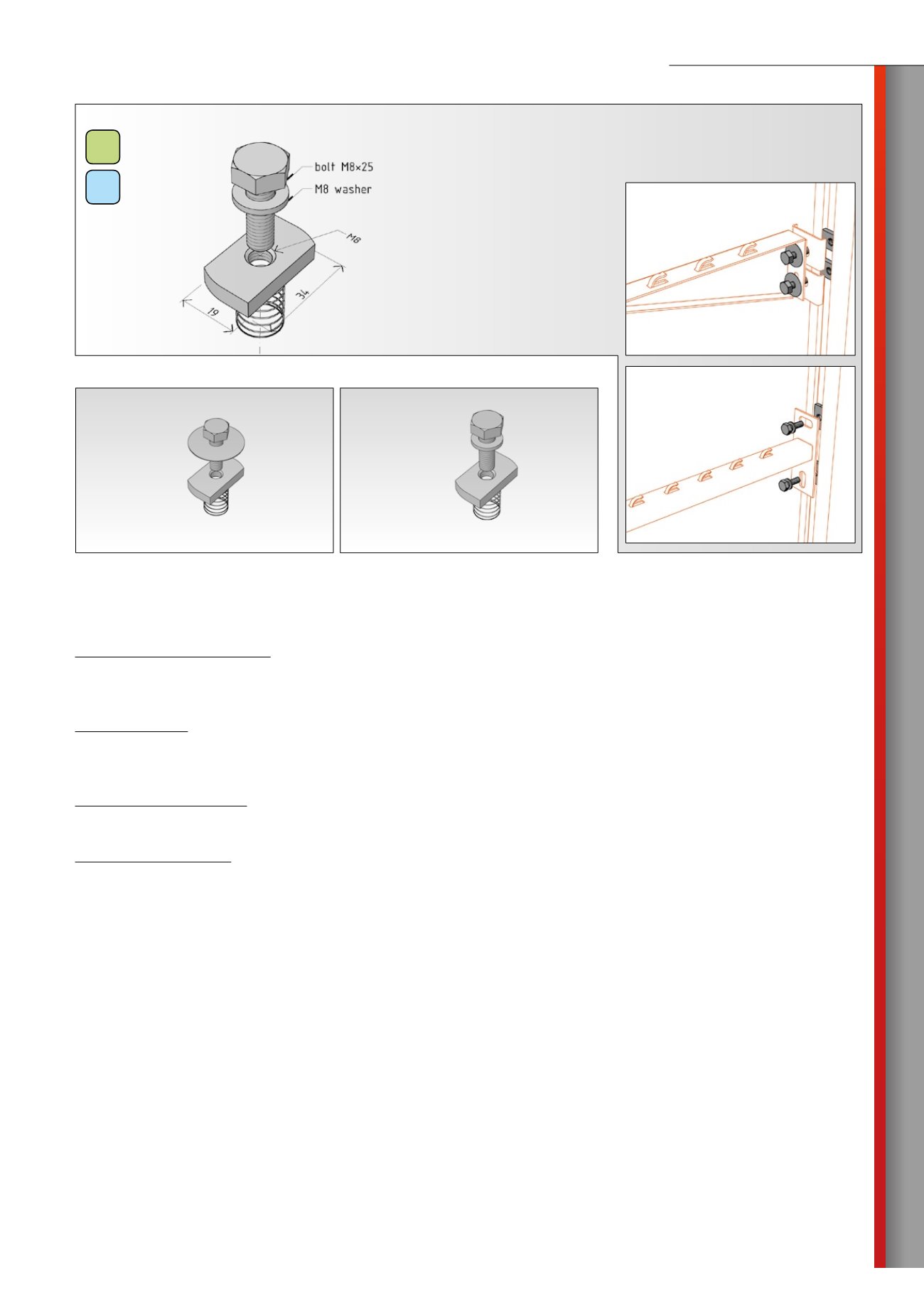

msm rectangular nut
MSM/M6 rectangular nut MSM/M8 rectangular nut
Intended for cantilevers
of 50, 100, 150, and 200 sizes.
components shown in the figure are included
in the package
components shown in the figure are included
in the package
Intended for cantilevers
of 250, 300, 400 and 500 sizes
GZgalvanic
zinc
A2stainless
AISI304L
example of assembly
NZM cantilever attached
to the STNM strut with
the help of fixing plate
NPZM cantilever attached
to the STNM strut with the
help of fixing plate
Product: MSM rectangular nut
Manufacturer: ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – galvanized malleable iron
Surface finish of the bolt and washer – cold galvanized and stainless AISI 304
Use:
The rectangular MSM nut serves for anchoring cantilevers to the struts in combination with the fixng plate PVM.
It is unnecessary with NPZM cantilevers due to its sturdy base.
Specifications:
34x19 mm
Description:
The MSM rectangular nut includes the spring, which serves for the locking of nut in the STNM-series strut. It also prevents to falling out of
the spring and it allows a smooth scrolling inside of the strut.
The Bolt M8x25 and washer M8 (MSM M8) or bolt M6x25 with large area washer M6 (MSM M6) are included in the package of the MSM
rectangular nut. The bolts are designed for fixing of NZM-series cantilevers.
components shown in the figure are included in the package
