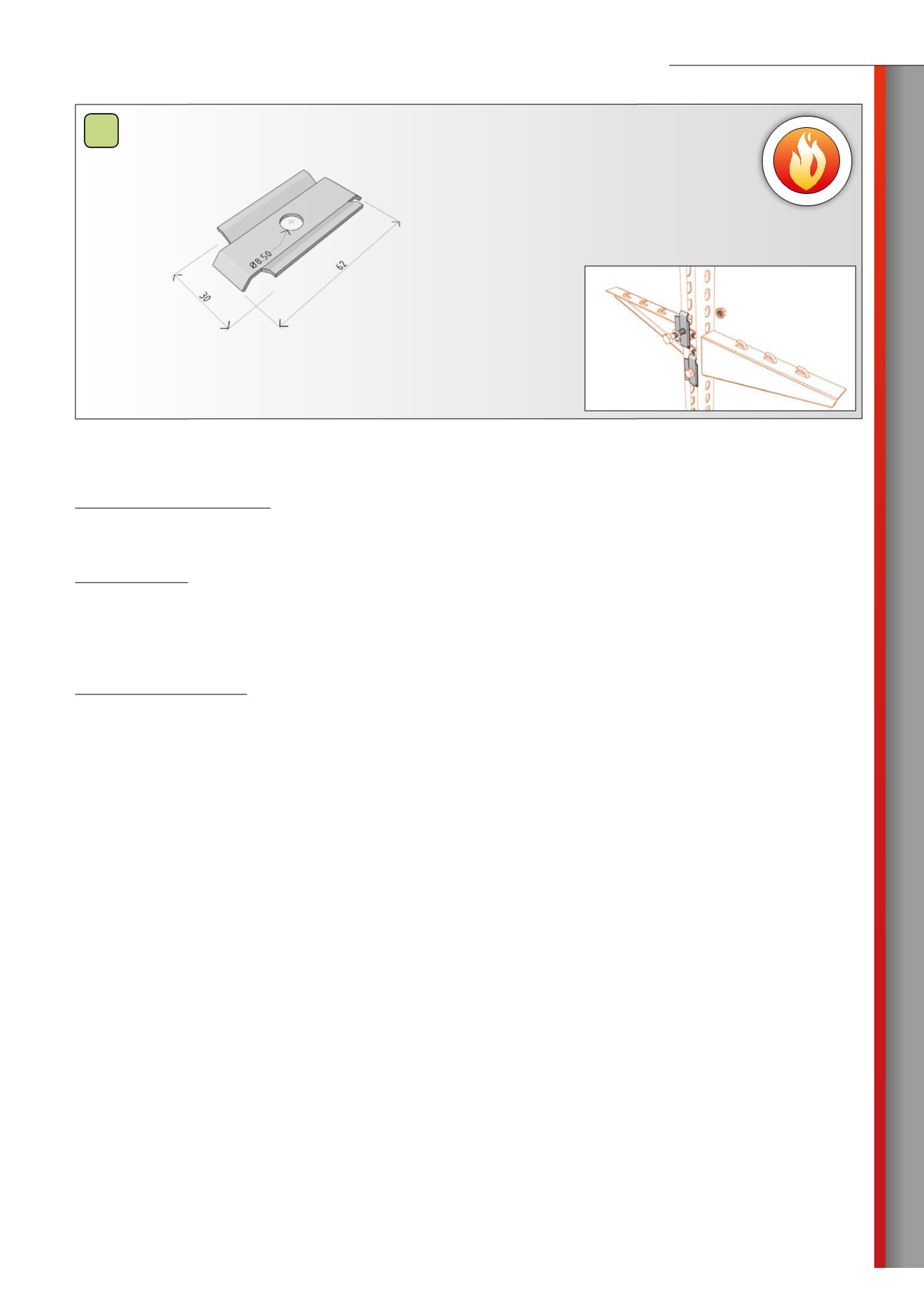

stabiling plate of strut
Connecting elements
for one SVSM setting:
1x bolt M8x50
1x washer M10
1x collared nut M8
example of assembly
GZ
galvanic
zinc
Product:
SVSM stabiling plate of strut
Manufacturer:
ARKYS Ltd., Podstranska 1, 627 00 Brno
Technical features:
Material – steel sheet
Surface finish – cold galvanized
Use:
SVSM stabilizing plate of strut is used for reinforcing of open profile of STPM strut in place of anchoring the cantilever in installations
with functional integrity. For cantilevers with small base (NZM 50-200) one piece is used. For cantilevers with higher base (NZM 250-500)
always in pair. Correctly installed stabilizing setting will prevent sideboard of the strut from bending inwards under the pressure of loaded
cantilever.
Specifications:
Length – 62 mm
Width – 30 mm
Sheet thickness – 2,0 mm
F
i
r
e
r
e
s
i
s
t
a
n
c
e
t
e
s
t
e
d
product sheet
