Product sheets of particular elements MERKUR 2

Arkys Ltd., Podstránská 1, 627 00 Brno | IČ: 25321366, DIČ: CZ25321366, KOS v Brně oddíl C, vložka 25198

Tel.: +420 517 541, Fax.: +420 517 541 220, e-mail:

SSPM

spatial strut splice

Connecting elements:

8x carriage bolt M8x20

8x washer M10

8x nut M8

example of assembly

hot

zinc-dipped

Product:

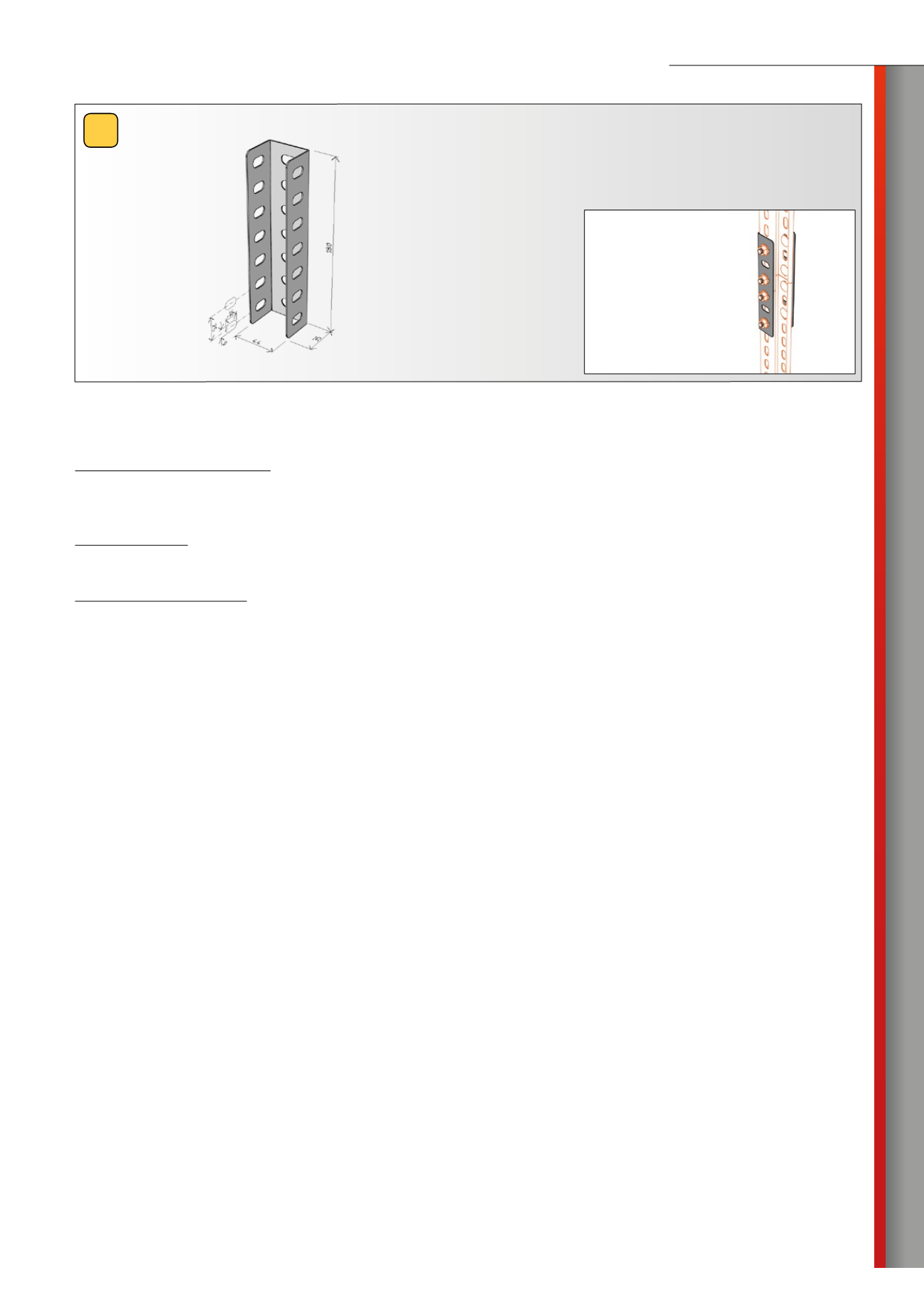

SSPM spatial strut splice

Manufacturer:

ARKYS Ltd., Podstranska 1, 627 00 Brno

Technical features:

Material – steel sheet

Surface finish – hot zinc dipped

Use:

The SSPM slice serves for joining two spatial struts STPM using of 8 pcs carriage bolt M8x20, 8 pcs washer M10 and 8 pcs nut M8.

Specifications:

Length – 180 mm

Width – 44 mm

Sheet thickness – 1,5 mm

Size of oval holes – 16x9 mm

product sheet
