Ksm

Cable chute

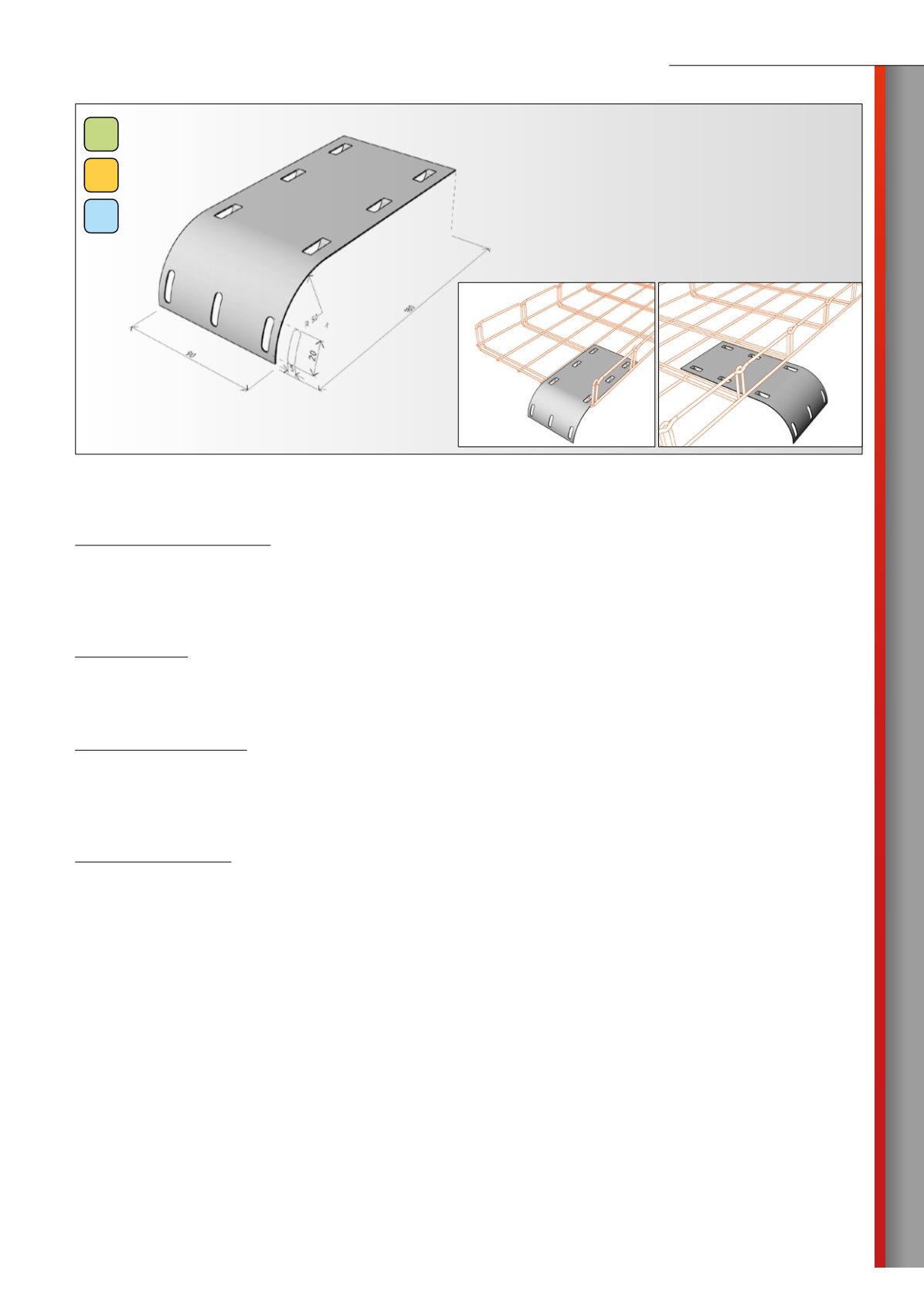

example of assembly

hot

zinc-dipped

galvanic

zinc

stainless

AISI304L

Product:

Cable chute KSM

Manufacturer:

ARKYS Ltd., Podstranska 1, 627 00 Brno

Technical features:

Material – steel or stainless steel sheet AISI 304 “A2”

Surface finish (finish) – cold galvanized

– hot zinc dipped by dipping

– stainless AISI 304 “A2”

Use:

The cable chute KSM is used to guide the cable bunch safely out of the tray. It protects the cabling against mechanical damage, while

ensuring the minimum bending radius of the cables (it is not applicable for 50/50 cable trays in the longitudinal direction). It is useful

expecially for weak current installation of data metallic and optical cables.

Specifications:

190x90 mm

Bend – R 50

Sheet thickness – 1,0 mm

Size of 3 holes in the end of the bend – 19x6 mm

Description:

Cable chute KSM has 6 tongues, which fit into the wires and it is fixed by their bending. Bottom of the Cable chute contains 6 holes and

using of cable ties it is used for fastening anf fixing of cabling.
